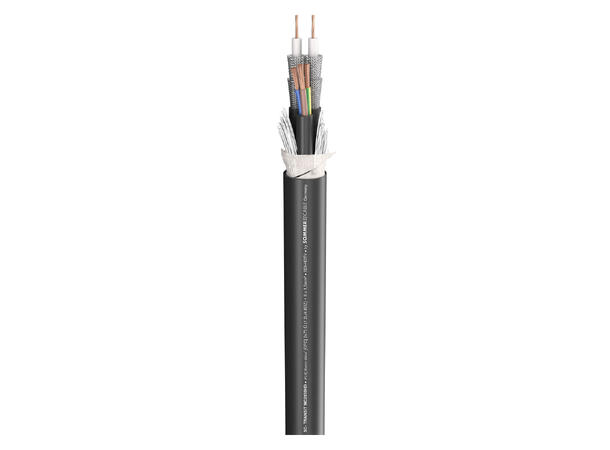

SOMMER Transit MC 2030 HD Videokabel power/video, PMB Ø 18,80 mm

SOMMER Transit MC 2030 HD Videokabel

power/video, PMB Ø 18,80 mm

Varenr: 141785

Alt. varenr: 600-2031

271,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Beskrivelse

The HD broadcast cable …

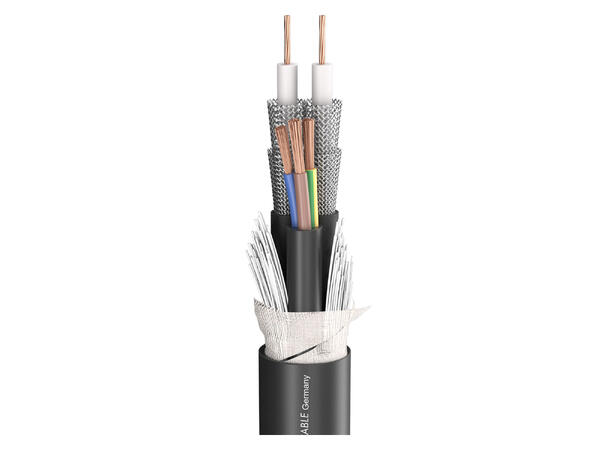

with 2 x HDVideo and 3x1.5 Power is now included into our standard range after numerous requests by a lot of broadcasting stations. In the Transit 2030 HD two of our double-shielded VECTOR 1.2/4.8 DZ Highflex video cables and one 3 x 1.5 mm² (0.002 sq in.) power line are combined in a reelable, flexible PUR Masterblend jacket so as to ensure a trouble-free HD signal transmission even over 100 m (328 ft.) – also under adverse conditions like heat, cold and heavy-duty use.

Advantages:

Power and HD-SDI-compliant video transmission in one cable
Excellent shielding
Low attenuation value for long-distance transmissions in HD
Compact diameter
flexible and easy to wind

Application:

Digital HDSDI long-distance transmission including power suppy
Ideal for OB van use, sporting spectacles and major events
Installation (Broadcast, studio, conference rooms, building technology)

Specifications:

Article number	600-2031
Name	TRANSIT MC 2030 HD
EAN	4049371301183
Brand	Sommer cable
Properties	PUR Master Blend
Properties	OFC oxygen free copper
Properties	FRNC flame retardant
Properties	Digital 75 O
Properties	Analog
Properties	SDI/HD-SDI
Application area	Mobile outdoor / indoor
Application area	Studio / Broadcast
Application area	Installation
Application	Video- & Power cable
Colour	black

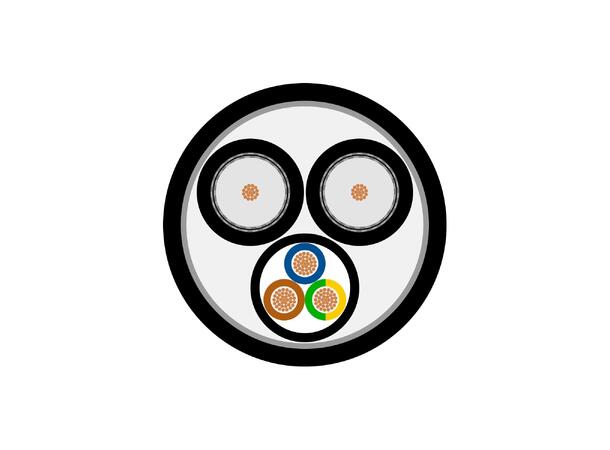

Construction	2x(02YSCCH1.2L/4.8) +(3LIY1,5mm²)Y
Construction (video)	2x(02YSCCH1.2L/4.8)
Construction (power)	(3LIY1,5mm²)
Jacket material	PMB
Jacket material (video)	PVC
Jacket material (power)	PVC
Jacket Ø mm	18,80
Jacket Ø (video) mm	7,10
Jacket Ø (power) mm	6,70
Number of Channels (video)	2
Number of Channels (power)	1
Inner conductor (video)	1
Inner conductor (power)	3
Inner conductor (video) mm²	0,88
Inner conductor (power) mm²	1,50
Inner conductor Ø (power) mm	1,06
AWG (video)	18
Shielding (video)	2 x Copper braiding tinned
Copper strands (video)	7
Copper strands (power)	30
Copper strand Ø (video) mm	0,40
Copper strand Ø (power) mm	0,25
Wire insulation material (video)	Foam / Skin-PE
Conductor insulation Ø (video) mm	4,80
Weight per 1 m g	490
UV-resistant	yes
Style variant	round
Temperature min. °C	-20
Temperature max. °C	75
Max. Transmission length (3G-SDI) m	150
Max. Transmission length (6G-SDI) m	60
Width mm	18,8
Height mm	18,8
Capacity wire/electic screen at 1m (video) pF	53
Capacity wire/electic screen at 1 ft. (video) pF	16,1544
Damping at 50 MHz (100 ft. & 20 °C / 68 °F) dB	1,4021
Damping at 200 MHz (100m & 20° C) dB	9,4
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB	2,8651
Damping at 470 MHz (100m & 20° C) dB	14,7
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB	4,4806
Damping at 862 MHz (100m & 20° C) dB	20,4
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB	6,2179
Damping at 1000 MHz (100m & 20° C) dB	21,9
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB	6,6751
Damping at 1485 MHz (100m & 20° C) dB	27,2
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB	8,2906
Damping at 1750 MHz (100m & 20° C) dB	29,9
Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) dB	9,1135
Damping at 2150 MHz (100m & 20° C) dB	33,5
Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) dB	10,2108
Damping at 3000 MHz (100m & 20° C) dB	40,8
Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) dB	12,4358
Impedance (video) O	75
Available since	V07.0
Old article number	999-0001-310
BPVo-Euroclass	Fca
