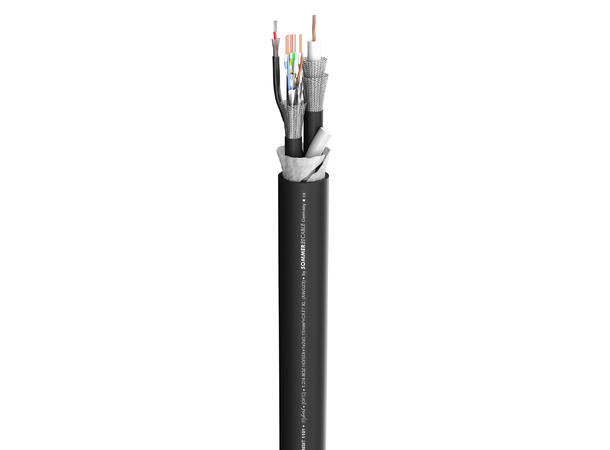

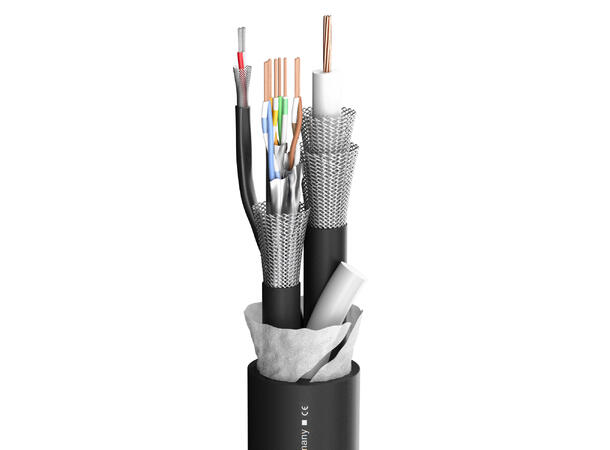

SOMMER Transit MC1101 UHD-SDI Videokabel 1 x 1,96/4,80, PUR Ø 19,60 mm

SOMMER Transit MC1101 UHD-SDI Videokabel

1 x 1,96/4,80, PUR Ø 19,60 mm

Varenr: 141789

Alt. varenr: 600-2811-01

343,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

200 på lager i Oslo

Beskrivelse

Advantages:

Application:

Specifications:

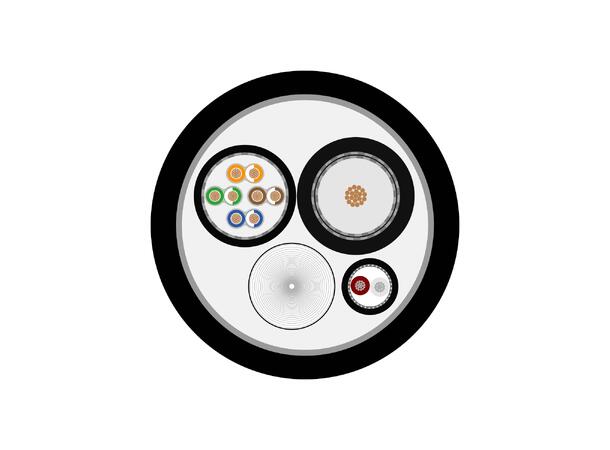

Article number	600-2811-01
Name	TRANSIT MC 1101 UHD-SDI
EAN	4049371375450
Colour	Black
Construction (audio)	(2LI2Y0,14mm²)DY
Construction (video)	(02YCCH1.2L/4.8)
Construction (network)	(S/FTP4x2xAWG23/7)
Jacket material	PUR
Jacket material (audio)	PVC
Jacket material (video)	PUR
Jacket material (network)	PUR
Jacket Ø mm	19,60
Jacket Ø (audio) mm	3,50
Jacket Ø (video) mm	7,00
Jacket Ø (network) mm	8,50
Number of Channels (audio)	1
Number of Channels (video)	1
Number of Channels (network)	4
Inner conductor (audio)	2
Inner conductor (video)	1
Inner conductor (network)	2
Inner conductor (audio) mm²	0,14
Inner conductor (video) mm²	0,88
Inner conductor (network) mm²	0,26
Inner conductor Ø (audio) mm	0,44
Inner conductor Ø (video) mm	1,96
AWG (audio)	26
AWG (video)	18
AWG (network)	23
Shielding (audio)	Copper spiral, tin-plated
Shielding (video)	2 x Copper braiding tinned
Shielding (network)	Tin-plated Cu braid + AL/PT foil per wire pair
Shielding factor %	100
Copper strands (audio)	19
Copper strands (video)	7
Copper strands (network)	7
Copper strand Ø (audio) mm	0,10
Copper strand Ø (video) mm	0,40
Copper strand Ø (network) mm	0,22
Wire insulation material (video)	Foam/Skin-PE
Conductor insulation Ø (video) mm	4,80
Weight per 1 m g	352.4
Packing	bulk stock
CAT-Type	CAT.7
Temperature min. °C	-20
Temperature max. °C	70
Height mm	19,6
Capac. cond./cond. per 1 m (audio) pF	44
Capacity wire/wire at 1 ft. (audio) pF	13,4112
Capacity wire/wire at 1m (network) pF	44
Capacity wire/wire at 1 ft. (network) pF	13,4112
Capac. cond./shield. per 1 m (audio) pF	80
Capacity wire/electic screen at 1 ft. (audio) pF	24,384
Capacity wire/electic screen at 1m (video) pF	53
Capacity wire/electic screen at 1 ft. (video) pF	16,1544
Damping at 200 MHz (100m & 20° C) dB	9,5
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB	2,8956
Damping at 470 MHz (100m & 20° C) dB	15
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB	4,572
Damping at 862 MHz (100m & 20° C) dB	20,6
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB	6,2789
Damping at 1000 MHz (100m & 20° C) dB	22,4
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB	6,8275
Damping at 1485 MHz (100m & 20° C) dB	27,7
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB	8,443
Damping at 1750 MHz (100m & 20° C) dB	30
Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) dB	9,144
Damping at 2150 MHz (100m & 20° C) dB	33,5
Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) dB	10,2108
Damping at 3000 MHz (100m & 20° C) dB	41,2
Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) dB	12,5578
Surge impedance (audio) O	110
Impedance (video) O	75
Impedance (network) O	100
Insulation resist. per 1 km (audio) GO	1
Insulation resist. per 1000 feet (audio) GO	0,3048
Insulation resist. per 1 km (video) GO	1
Insulation resist. per 1000 feet (video) GO	0,3048
Insulation resist. per 1 km (network) GO	5
Insulation resist. per 1000 feet (network) GO	1,524
Conductor resistance per 1 km (audio) O	129
Conductor resistance per 1000 ft. (audio) O	39,3192
Conductor resistance per 1 km (video) O	20
Conductor resistance per 1000 ft. (video) O	6,096
Conductor resistance per 1 km (network) O	72
Conductor resistance per 1000 ft. (network) O	21,9456
Old article number	999-0001-316-5
BPVo-Euroclass	Fca
