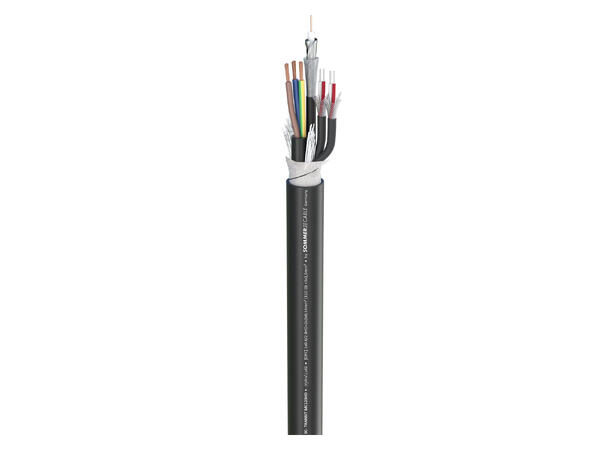

SOMMER Transit MC 123 HD Videokabel power/video/audio, PVC Ø 14,20 mm, sort

SOMMER Transit MC 123 HD Videokabel

power/video/audio, PVC Ø 14,20 mm, sort

Varenr: 141798

Alt. varenr: 605-0761

161,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Beskrivelse

Triplets in one belly...

Advantages:

HD-SDI video 75 O + audio (+ power)
Very compact and flexible
Easy handling

Application:

Connection of surveillance monitors, cameras, cutting consoles
Installation (studio, theatre, building technology, rack mount)
Outdoor applications

Specifications:

Article number	605-0761
Name	Transit MC 123 HD
EAN	4049371364218
Properties	OFC oxygen free copper
Properties	Digital 75 O
Properties	SDI
Properties	Analog
Application area	ELA 100 V
Application area	Mobile outdoor / indoor
Application area	Studio / Broadcast
Application area	Installation
Application	hybrid cable
Colour	black
Colour detailed	black

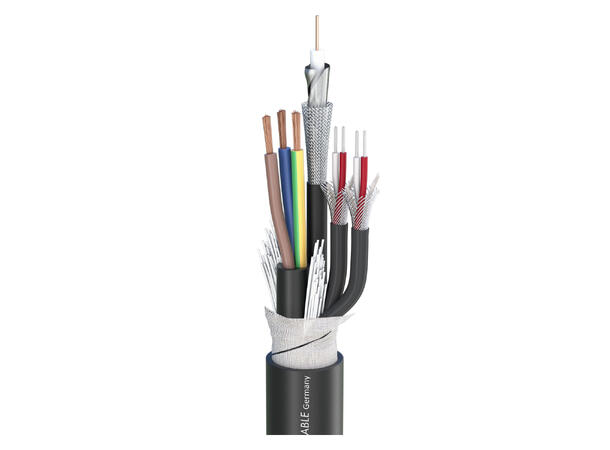

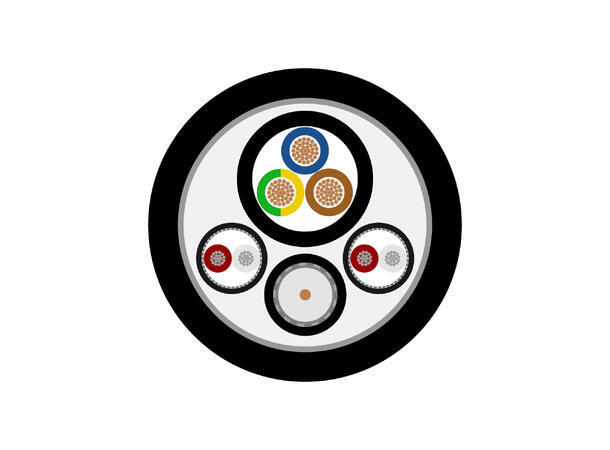

Construction	2Y0,6mm(ST)CY+(2LIY0,14mm²)DY+(3LIY1,5mm²)YY
Construction (audio)	(2LIY0,14mm²)DY
Construction (video)	2Y0,6mm(ST)CY
Construction (power)	(3LIY1,5mm²)Y
Jacket material	PVC
Jacket Ø mm	14,20
Jacket Ø (audio) mm	4,20
Jacket Ø (video) mm	4,20
Number of Channels (audio)	2
Number of Channels (video)	1
Number of Channels (power)	1
Inner conductor (audio)	2
Inner conductor (video)	1
Inner conductor (power)	3
Inner conductor (audio) mm²	0,14
Inner conductor (video) mm²	0,28
Inner conductor (power) mm²	1,50
Inner conductor Ø (audio) mm	0,42
Inner conductor Ø (video) mm	0,60
Inner conductor Ø (power) mm	1,38
AWG (audio)	26
AWG (video)	23
AWG (power)	16
Shielding (audio)	Copper spiral, tin-plated
Shielding (video)	Copper braiding tin-plated + AL / PT foil
Shielding factor %	100
Copper strands (audio)	18
Copper strands (video)	1
Copper strand Ø (audio) mm	0,10
Copper strand Ø (video) mm	0,60
Wire insulation material (video)	Foam / Skin-PE
Conductor insulation Ø (video) mm	2,80
Weight per 1 m g	200
UV-resistant	yes
Fire load per m kWh	0,84
Style variant	round
Packing	bulk stock
Temperature min. °C	-25
Temperature max. °C	70
Width mm	14,2
Height mm	14,2
Capac. cond./cond. per 1 m (audio) pF	50
Capacity wire/wire at 1 ft. (audio) pF	15,24
Capac. cond./shield. per 1 m (audio) pF	100
Capacity wire/electic screen at 1 ft. (audio) pF	30,48
Capacity wire/electic screen at 1m (video) pF	56
Capacity wire/electic screen at 1 ft. (video) pF	17,0688

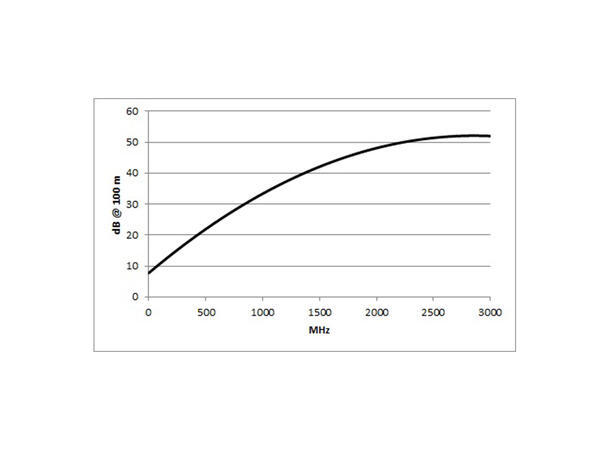

Damping at 50 MHz (100m & 20° C) dB	7,3
Damping at 50 MHz (100 ft. & 20 °C / 68 °F) dB	2,225
Damping at 200 MHz (100m & 20° C) dB	14,5
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB	4,4196
Damping at 470 MHz (100m & 20° C) dB	22,7
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB	6,919
Damping at 862 MHz (100m & 20° C) dB	31,1
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB	9,4793
Damping at 1000 MHz (100m & 20° C) dB	33,6
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB	10,2413
Damping at 1485 MHz (100m & 20° C) dB	41,2
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB	12,5578
Surge impedance (audio) O	110
Impedance (video) O	75
BPVo-Euroclass	Fca
