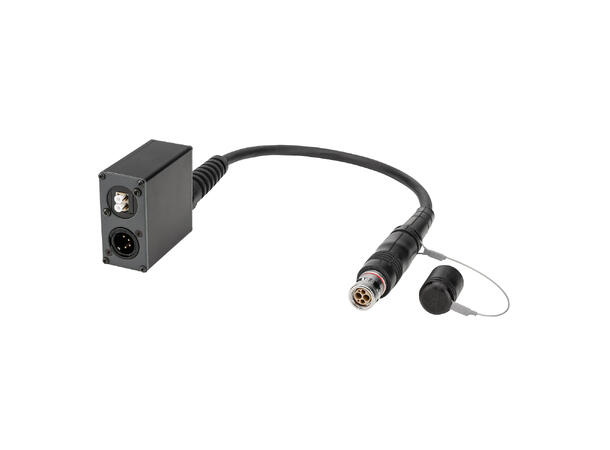

Our flexible, universal Octopus Hybrid with its flame-retardant PUR compound guarantees the safe HD-SDI camera signal transmission for indoor and outdoor applications with all digital broadcast HD cameras of the leading manufacturers. It is equipped with the push-pull SMPTE311M connectors (FUW male – female PUW) from LEMO for the simultaneous transmission of power, control, picture, sound and sync signals to the camera control base or the patch panel switched in between. On request we will gladly supply the cable on SCHILL broadcasting reels.
Configuration:
0,50 m SC-Octopus Hybrid 224 TPU; fiber: 2 x 9/125 µm; power: 1 x 0,50 mm²; 2 x control Ø 9,20 mm; black (591-2241)
1 x +FUW3K.93CTLMC96
1 x +GMF.3K.085.EANZ
1 x Cassette profile , 2 HE, 1 BE; depth: 68 mm (SYKP-1)
1 x LC / LC female, plastic-, Patch-, Keystone Clip-In, black (KST-L3L3-P-SW)
1 x HICON XLR, 4-pole , metal-, Soldering-male connector, gold plated contact(s), Type D, black (HI-X4DM-G)
2 x +LWL-LCXX/125S
Specifications:
| Name | Octopus Hybrid |
|---|
| EAN | 4049371411639 |
|---|
| Brand | Sommer cable |
|---|
| Application | HD camera cable SMPTE311M |
|---|
| Colour | black |
|---|
| diameter Ø mm | 9,2 |
|---|
| Core (fiber) µm | 9 |
|---|
| Cladding (fiber) µm | 125 |
|---|
| Connector-Brand | LEMO |
|---|
| Connector-Brand | HICON |
|---|
| Quality | OS2 |
|---|
| Type | LC |
|---|
| Type | XLR |
|---|
| Type | FUW |
|---|
| Type (detailed) | FUW male |
|---|
| Type (detailed) | LC female |
|---|
| Type (detailed) | XLR 4-pole female |
|---|
| Length m | 0,5 |
|---|
