SOMMER Aura DMCK10 Multikabel 10 x 2 x 0,15 mm², Ø 14,40 mm, mørk grå SOMMER Aura DMCK10 Multikabel 10 x 2 x 0,15 mm², Ø 14,40 mm, mørk grå SOMMER Aura DMCK10 Multikabel 10 x 2 x 0,15 mm², Ø 14,40 mm, mørk grå

SOMMER Aura DMCK10 Multikabel

10 x 2 x 0,15 mm², Ø 14,40 mm, mørk grå

Varenr: 141248
Alt. varenr: 100-0351-10
206,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Ytterkappe, diameter
Ø 12,00mm
Ø 12,00mm
Ø 14,40mm
Ø 14,40mm
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

Mr. Siemens would be delighted...

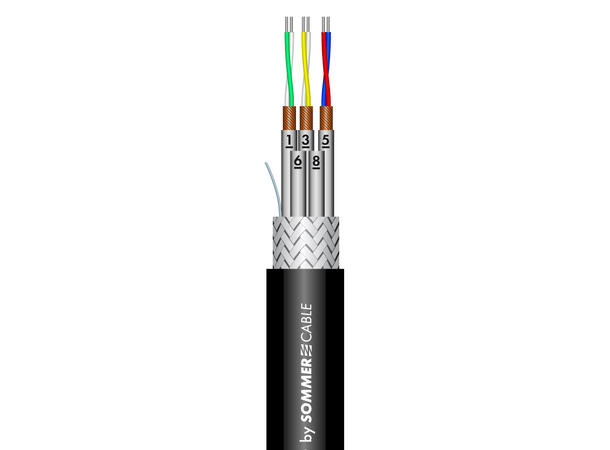

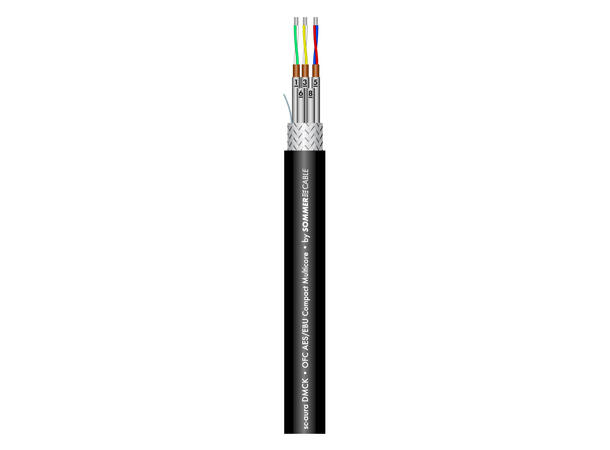

to discover that the right cable is finally available for his multipoint connectors! With a diameter of only 14,40 mm the SC-Aura DMCK10 is simply perfect for the SIEMENS male/female DIN41622 and all other multipoint connectors. Not just the small diameter makes it special, but also a constant wave impedance of 110 O (±3 % tolerance). This constant value was achieved by leaving out the drain wire which “knocks it out“ in practice. Instead we used a dense and tightly
stranded helical mesh screen of oxygen-free copper. The entire wire pair is shielded by a colour-coded insulation.

So the SC-Aura DMCK10 is not only sturdy, but also perfectly protected against interferences.


Advantages:

  • Small diameter of 14,40 mm, thus ideal for finishing for the 30-pin
    SIEMENS type male and Sub-D connectors
  • Highly flexible due to the tight stranding and a smooth jacket material
  • Extremely durable due to the use of oxygen-free copper and individually
    insulated wire pairs
  • Due to the smart design a constant wave impedance of 110 O is guaranteed
    even after multiple reeling
  • Ideal as AUDIO multipair due to low damping values

Application:

  • mobile application (indoor)
  • Transmission of digital signals in the studio setting
  • Flexible stage multipair (stageboxes, looms, etc.)


Specifications:

Article number100-0351-10
NameSC-Aura DMCK10
EAN4049371006545
PropertiesDigital 110 O AES / EBU
PropertiesOFC oxygen free copper
PropertiesAnalog
Application areaStage / live
Application areaInstallation
Application areaStudio / Broadcast
Application areaMobile outdoor / indoor
ApplicationMultipair
Colourgrey
Colour detaileddark grey
Signal transmissionsymmetrical

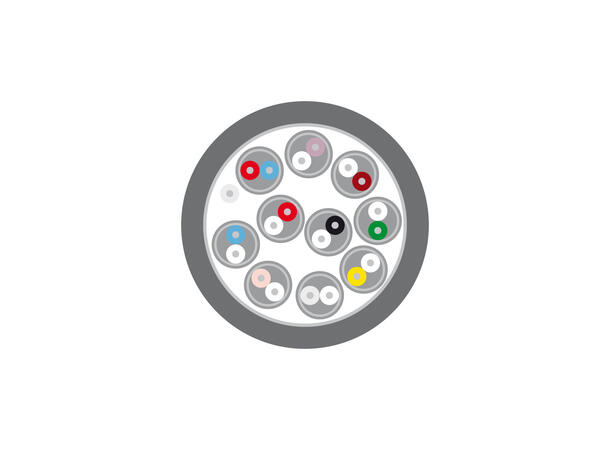

Construction10(2LI2Y0,15mm²)DYCY
Jacket materialSoft-PUR-FRNC
Jacket Ø mm14,40
Number of Channels (audio)10
Inner conductor (audio)2
Inner conductor (audio) mm²0,15
Inner conductor Ø (audio) mm0,44
AWG (audio)26
ShieldingCopper spiral + overall shielding out of copper braiding, tin-plated
Shielding factor %90
Copper strands (audio)19
Copper strand Ø (audio) mm0,10
Conductor insulation materialPE
Conductor insulation Ø mm1,10
Weight per 1 m g262
Fire load per m kWh0,9
Style variantround
Packingbulk stock
Temperature min. °C-20
Temperature max. °C70
Width mm14,4
Height mm14,4
Capac. cond./cond. per 1 m (audio) pF55
Capacity wire/wire at 1 ft. (audio) pF16,764
Capac. cond./shield. per 1 m (audio) pF160
Capacity wire/electic screen at 1 ft. (audio) pF48,768
Impedance O110
Insulation resist. per 1 km GO1
Insulation resist. per 1000 feet GO0,3048
Insulation resist. per 1 km (audio) GO1
Insulation resist. per 1000 feet (audio) GO0,3048
Conductor resistance per 1 km O130
Conductor resistance per 1000 ft. O39,624
Shield. resistance per 1 km O125
Shield. resistance per 1000 ft. O38,1
BPVo-EuroclassFca
