SOMMER Micro-Stage Mikrofonkabel 2 x 0,14 mm², PVC Ø 5,80 mm, sort SOMMER Micro-Stage Mikrofonkabel 2 x 0,14 mm², PVC Ø 5,80 mm, sort

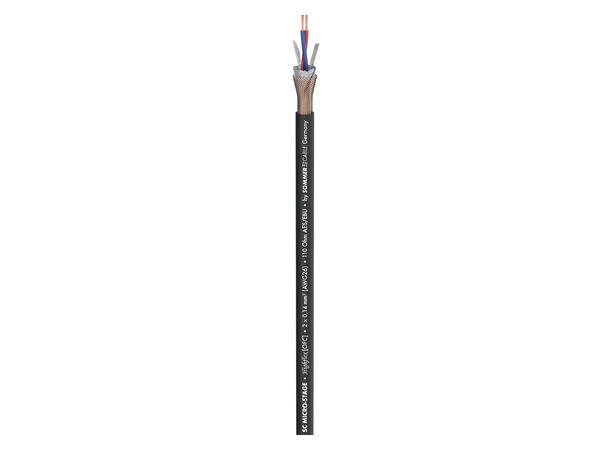

SOMMER Micro-Stage Mikrofonkabel

2 x 0,14 mm², PVC Ø 5,80 mm, sort

Varenr: 141343
Alt. varenr: 200-0371
21,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Farge
Sort
Sort
Blå
Blå

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
  • 100m
  • 500m
300 på lager i Oslo
BeskrivelseLenker & dokumenter
Beskrivelse

The shrinking violet…

among the microphone cables is the new AES/EBU-capable SC-MICRO-STAGE.
Though it may look somewhat inconspicuous at first sight, it splendidly meets the most essential requirements of contemporary live and studio technology.
It has a cold-flexible, soft PVC jacket, a low capacitance and is very easy to handle.

The compact cable diameter of 5,80 mm is ideal for using stereo jack connectors and XLR connectors with a small cable passage like they are still very popular e.g. overseas or on the US market.
When used as a patch or MIDI cable, it will occupy only very little space in your patchbay or in the home studio.
Due to its tight, concentric litz stranding and the foamed Skin PE wire insulation, the SC-MICRO-STAGE can easily transmit analogue and digital signals 110 O over distances greater than 100 metres.


Advantages:

  • High transmission quality due to the usw of fine stranding
  • Very rugged owing to the thick, soft PVC jacket
  • Good shielding due to dence helical copper mesh screen
  • High flexibility makes it easy to reel

Application:

  • Stage application – Studio


Specifications:

Article number200-0371
NameSC-MICRO-STAGE
EAN4049371176170
PropertiesAnalog
PropertiesDigital 110 O AES / EBU
PropertiesOFC oxygen free copper
Application areaStage / live
Application areaInstallation
Application areaMobile outdoor / indoor
ApplicationMicrophone Cable
Colourblack
Colour detailedblack
Signal transmissionsymmetrical

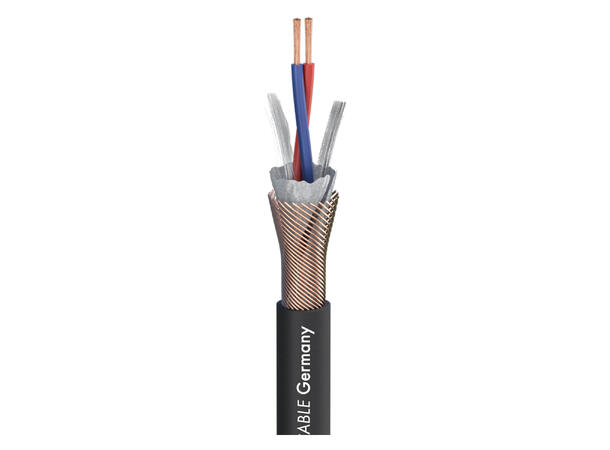

Construction(2LI2Y0,14mm²)DY
Jacket materialPVC
Jacket Ø mm5,80
Number of Channels (audio)1
Inner conductor (audio)2
Inner conductor (audio) mm²0,14
Inner conductor Ø (audio) mm0,42
AWG (audio)26
ShieldingCopper spiral shielding with 0.10 mm indiv. strands
Shielding factor %95
Copper strands (audio)18
Copper strand Ø (audio) mm0,10
Conductor insulation materialFoam / Skin-PE
Conductor insulation Ø mm1,20
Weight per 1 m g50
UV-resistantyes
Fire load per m kWh0,22
Style variantround
Packing100 m spool
Packing500 m spool
Temperature min. °C-25
Temperature max. °C70
Width mm5,8
Height mm5,8
Capac. cond./cond. per 1 m (audio) pF48
Capacity wire/wire at 1 ft. (audio) pF14,6304
Capac. cond./shield. per 1 m (audio) pF120
Capacity wire/electic screen at 1 ft. (audio) pF36,576
Impedance O95
Surge impedance (audio) O110
Insulation resist. per 1 km GO1
Insulation resist. per 1000 feet GO0,3048
Insulation resist. per 1 km (audio) GO1
Insulation resist. per 1000 feet (audio) GO0,3048
Conductor resistance per 1 km O130
Conductor resistance per 1000 ft. O39,624
Shield. resistance per 1 km O30
Shield. resistance per 1000 ft. O9,144
BPVo-EuroclassFca
