Her er du nå: Lyd, lys & scene   >   Kabel   >   Kabel i bulk   >   Mikrofonkabler   >   SOMMER Peacock MKII Mikrofonkabel
SOMMER Peacock MKII Mikrofonkabel 2 x 0,22 mm², S-PVC, 9,2 x 4,5 mm, sort SOMMER Peacock MKII Mikrofonkabel 2 x 0,22 mm², S-PVC, 9,2 x 4,5 mm, sort SOMMER Peacock MKII Mikrofonkabel 2 x 0,22 mm², S-PVC, 9,2 x 4,5 mm, sort

SOMMER Peacock MKII Mikrofonkabel

2 x 0,22 mm², S-PVC, 9,2 x 4,5 mm, sort

Varenr: 141358
Alt. varenr: 200-0551
43,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Farge
Sort
Sort
Blå
Blå

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
100m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

Two friends we must be...

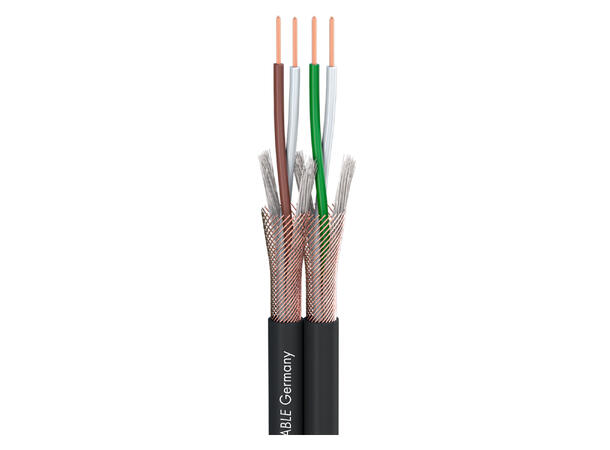

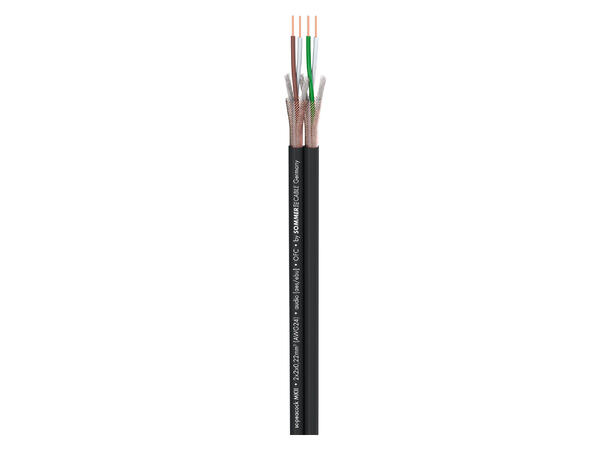

and fit into two connectors. Or into three - or why not even four? You can do a lot with this cable. But primarily it will be used as a stereo cable for microphones and for manufacturing RCA and Y-patch cables. Each of its wire pairs is protected individually by a tight helical shielding with 95 % coverage and can be separated anytime. The single line will fit into every jack, XLR, and RCA connector.


Advantages:

  • Highly flexible due to the use of a cold-resistant and soft PVC jacket
  • Multiple applications, as the individual wires can be separated anytime

Application:

  • Wiring of stereo microphones
  • Assembly of insert cable


Specifications:

Article number200-0551
NameSC-Peacock MKII
EAN4049371000512
PropertiesAnalog
PropertiesDigital 110 O AES / EBU
PropertiesOFC oxygen free copper
Application areaStage / live
Application areaInstallation
Application areaStudio / Broadcast
ApplicationPatch & Microphone Cable
Colourblack
Colour detailedblack
Signal transmissionsymmetrical

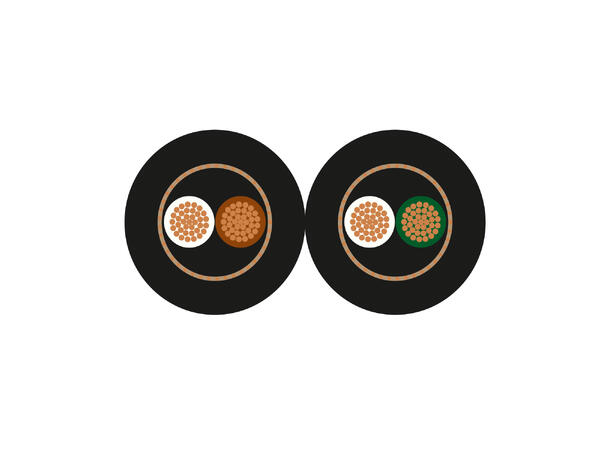

Construction2(2LI2Y0,22mm²)DYY
Jacket materialS-PVC
Number of Channels (AES/EBU, DMX)2
Inner conductor (AES/EBU, DMX)2
Inner conductor (AES/EBU, DMX) mm²0,22
Inner conductor Ø (AES/EBU, DMX) mm0,53
AWG (AES/EBU, DMX)24
ShieldingCopper spiral sleeve
Shielding factor %95
Copper strands (AES/EBU, DMX)28
Copper strand Ø (AES/EBU, DMX) mm0,10
Conductor insulation materialFoam / Skin-PE
Conductor insulation Ø mm1,30
Weight per 1 m g53,6
UV-resistantyes
Fire load per m kWh0,18
Style varianttwin
Packing100 m spool
Temperature min. °C-30
Temperature max. °C70
Width mm9,2
Height mm4,5
Capac. cond./cond. per 1 m (AES/EBU, DMX) pF70
Capacity wire/wire at 1 ft. (AES/EBU, DMX) pF21,336
Capac. cond./shield. per 1 m (AES/EBU, DMX) pF125
Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) pF38,1
Impedance O110
Insulation resist. per 1 km GO0,5
Insulation resist. per 1000 feet GO0,1524
Insulation resist. per 1 km (AES/EBU, DMX) GO0,5
Insulation resist. per 1000 feet (AES/EBU, DMX) GO0,1524
Conductor resistance per 1 km O90
Conductor resistance per 1000 ft. O27,432
Shield. resistance per 1 km O36
Shield. resistance per 1000 ft. O10,9728
BPVo-EuroclassFca
Lenker & dokumenter
Produsentens hjemmesideDatablad
