Her er du nå: Lyd, lys & scene   >   Kabel   >   Kabel i bulk   >   DMX-kabel   >   SOMMER Binary 234 AES/EBU MKII DMX-kabel

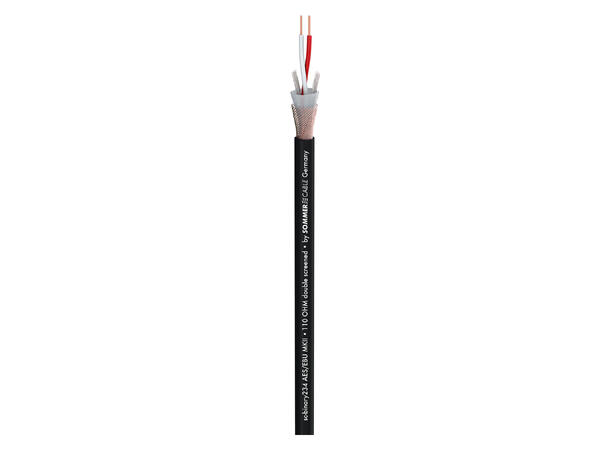

SOMMER Binary 234 AES/EBU MKII DMX-kabel 2 x 0,34 mm², PVC Ø 6,20 mm, sort SOMMER Binary 234 AES/EBU MKII DMX-kabel 2 x 0,34 mm², PVC Ø 6,20 mm, sort SOMMER Binary 234 AES/EBU MKII DMX-kabel 2 x 0,34 mm², PVC Ø 6,20 mm, sort

SOMMER Binary 234 AES/EBU MKII DMX-kabel

2 x 0,34 mm², PVC Ø 6,20 mm, sort

Varenr: 141383
Alt. varenr: 520-0051
32,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Farge
Sort
Sort
Blå
Blå
Grå
Grå

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
100m
1000 på lager i Oslo
BeskrivelseLenker & dokumenter
Beskrivelse

Swinging with your girlfriend...

like Tarzan in the jungle. With this cable you could just do that: it can take a lot of tugging, bending, and rough wear and tear. This is important when installing it in sharp-edged lighting trusses.
The Binary 234 AES/EBU MKII is an outstanding cable for the transmission of digital signals in the 110 O AES/EBU and DMX data format. Its shielding is provided by an aluminum-vaporised fleece and a helical copper mesh screen with 100 % coverage. So it offers a very good protection against electric and magnetic interferences. This cable ensures an error-free data transfer over distances of up to 1000 metres. With the Binary 234 AES/EBU MKII you’ll be on the safe side.


Advantages:

  • AES/EBU- and DMX-conformant, highly flexible
  • Very good shielding due to the use of a helical copper mesh screen plus
    an aluminium-vaporised fleece
  • Extremely rugged due to the special tough jacket
  • Only a little more expensive than a standard microphone cable

Application:

  • Networking of scanners, lighting systems, digital mixing consoles etc.
  • For indoor and outdoor installation
  • Connection of digital audio amplifiers, DAT recorders etc.


Specifications:

Article number520-0051
NameBinary 234 AES/EBU MKII
EAN4049371002349
PropertiesAnalog
PropertiesDigital 110 O AES / EBU
PropertiesOFC oxygen free copper
Application areaStudio / Broadcast
Application areaMobile outdoor / indoor
Application areaELA 100 V
Application areaStage / live
Application areaInstallation
ApplicationDMX
Colourblack
Colour detailedblack
Signal transmissionsymmetrical

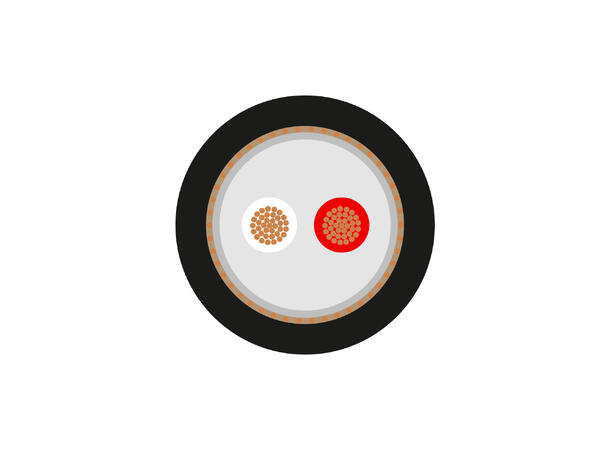

Construction(2LI2Y0,34mm²)(ST)DY
Jacket materialPVC
Jacket Ø mm6,20
Number of Channels (AES/EBU, DMX)1
Inner conductor (AES/EBU, DMX)2
Inner conductor (AES/EBU, DMX) mm²0,34
Inner conductor Ø (AES/EBU, DMX) mm0,66
AWG (AES/EBU, DMX)22
ShieldingCopper spiral shielding + aluminum steamed fleece
Shielding factor %100
Copper strands (AES/EBU, DMX)19
Copper strand Ø (AES/EBU, DMX) mm0,15
Conductor insulation materialFoam / Skin-PE
Conductor insulation Ø mm1,50
Weight per 1 m g50
UV-resistantyes
Fire load per m kWh0,17
Style variantround
Packing100 m spool
Temperature min. °C-25
Temperature max. °C70
Width mm6,2
Height mm6,2
Capac. cond./cond. per 1 m (AES/EBU, DMX) pF63
Capacity wire/wire at 1 ft. (AES/EBU, DMX) pF19,2024
Capac. cond./shield. per 1 m (AES/EBU, DMX) pF115
Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) pF35,052
Impedance O110
Insulation resist. per 1 km GO1
Insulation resist. per 1000 feet GO0,3048
Insulation resist. per 1 km (AES/EBU, DMX) GO1
Insulation resist. per 1000 feet (AES/EBU, DMX) GO0,3048
Conductor resistance per 1 km O53
Conductor resistance per 1000 ft. O16,1544
Shield. resistance per 1 km O28
Shield. resistance per 1000 ft. O8,5344
BPVo-EuroclassFca
Lenker & dokumenter
Produsentens hjemmesideDatablad
