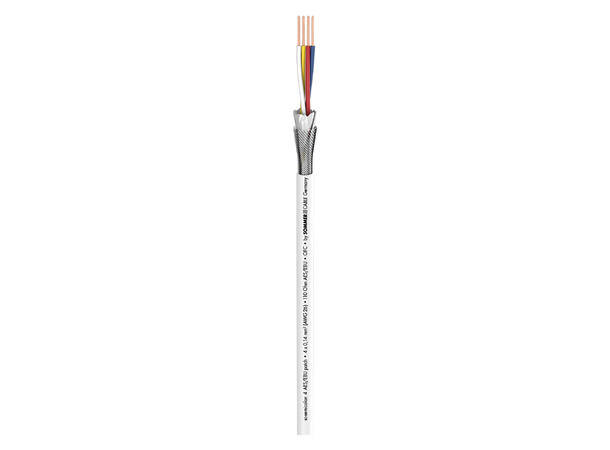

SOMMER Semicolon 4 AES/EBU DMX-kabel

4 x 0,14 mm², PVC Ø 5,20 mm

Varenr: 141390

Alt. varenr: 520-0140

39,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Farge

Hvit

Sort

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:

SommerPacking

100 på lager i Oslo

Beskrivelse

Perfect shielding by a dense helical copper mesh screen + AL/PT foil or AL fleece
Compact and hence space-saving

Name	SC-Semicolon 4 AES/EBU
EAN	4049371287258
Properties	Digital 110 O AES / EBU
Properties	OFC oxygen free copper
Properties	Analog
Application area	Installation
Application area	Studio / Broadcast
Application	DMX
Colour	white
Signal transmission	symmetrical
Construction	(4LI2Y0,14mm²)(ST)DY
Jacket material	PVC
Jacket Ø mm	5,20
Number of Channels (AES/EBU, DMX)	1
Inner conductor (AES/EBU, DMX)	4
Inner conductor (AES/EBU, DMX) mm²	0,14
Inner conductor Ø (AES/EBU, DMX) mm	0,42
AWG (AES/EBU, DMX)	26
Shielding	Copper spiral sleeve + AL-fleece
Shielding factor %	100
Copper strands (AES/EBU, DMX)	18
Copper strand Ø (AES/EBU, DMX) mm	0,10
Conductor insulation material	Foam / Skin-PE
UV-resistant	yes
Fire load per m kWh	0,18
Style variant	round
Packing	100 m spool
Packing	500 m spool
Temperature min. °C	-25
Temperature max. °C	70
Width mm	5,2
Height mm	5,2
Capac. cond./cond. per 1 m (AES/EBU, DMX) pF	40
Capacity wire/wire at 1 ft. (AES/EBU, DMX) pF	12,192
Capac. cond./shield. per 1 m (AES/EBU, DMX) pF	80
Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) pF	24,384
Impedance O	110
Insulation resist. per 1 km GO	1
Insulation resist. per 1000 feet GO	0,3048
Insulation resist. per 1 km (AES/EBU, DMX) GO	1
Insulation resist. per 1000 feet (AES/EBU, DMX) GO	0,3048
Conductor resistance per 1 km O	140
Conductor resistance per 1000 ft. O	42,672
BPVo-Euroclass	Fca
