These two don’t want to know each other...
Advantages:
- Digital transmission over long distances due to the DMX and AES/EBU standards
- Excellent protection against electric interference (Cu mesh screen + AL/PT foil)
plus Twisted Pair design - Extremely robust due to the special tough jacket
Application:
- Networking of scanners and lighting systems with check-back function
- Connection of digital control units and devices of all kinds
- S-PVC jacket for mobile outdoor applications
Specifications:
| Article number | 542-0051 |
|---|

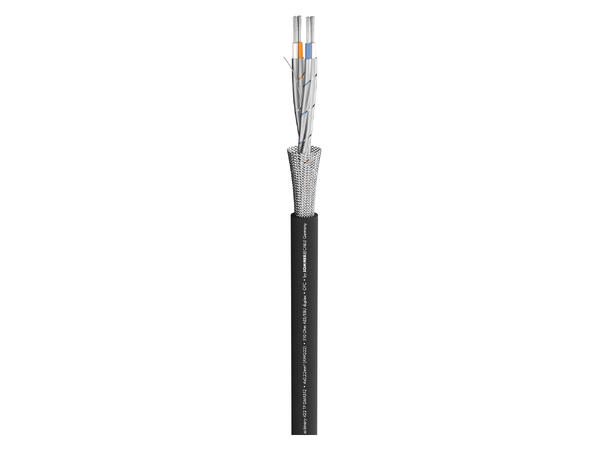

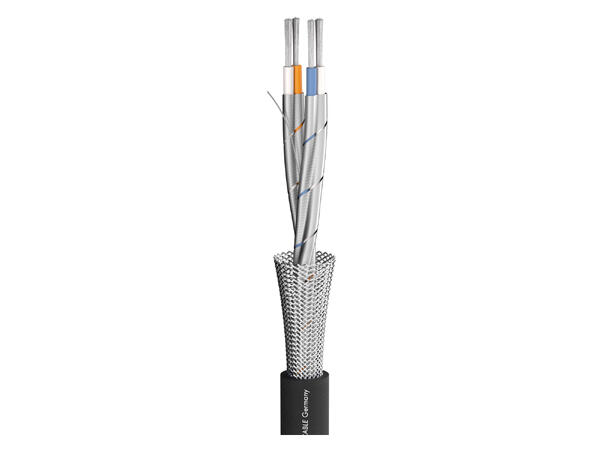

| Name | Binary 422 TP DMX512 |
|---|
| EAN | 4049371002424 |
|---|
| Properties | Analog |
|---|
| Properties | In-ground / burial |
|---|
| Properties | Digital 110 O AES / EBU |
|---|
| Properties | OFC oxygen free copper |
|---|
| Application area | Studio / Broadcast |
|---|
| Application area | Mobile outdoor / indoor |
|---|
| Application area | ELA 100 V |
|---|
| Application area | Stage / live |
|---|
| Application area | Installation |
|---|
| Application | DMX |
|---|
| Colour | black |
|---|
| Colour detailed | black |
|---|
| Signal transmission | symmetrical |
|---|

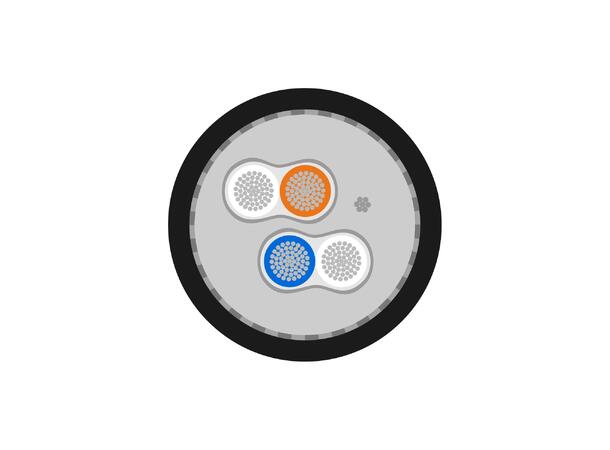

| Construction | 2(2LI2YS0,22mm²)(ST)CY |
|---|
| Jacket material | S-PVC |
|---|
| Jacket Ø mm | 8,00 |
|---|
| Number of Channels (AES/EBU, DMX) | 1 |
|---|
| Inner conductor (AES/EBU, DMX) | 4 |
|---|
| Inner conductor (AES/EBU, DMX) mm² | 0,22 |
|---|
| Inner conductor Ø (AES/EBU, DMX) mm | 0,53 |
|---|
| AWG (AES/EBU, DMX) | 24 |
|---|
| Shielding | Copper braiding tin-plated + 2 x AL / PT foil |
|---|
| Shielding factor % | 100 |
|---|
| Copper strands (AES/EBU, DMX) | 7 |
|---|
| Copper strand Ø (AES/EBU, DMX) mm | 0,20 |
|---|
| Conductor insulation material | Foam / Skin-PE |
|---|
| Conductor insulation Ø mm | 1,55 |
|---|
| Weight per 1 m g | 76 |
|---|
| UV-resistant | yes |
|---|
| Fire load per m kWh | 0,25 |
|---|
| Style variant | round |
|---|
| Packing | 100 m spool |
|---|
| Temperature min. °C | -25 |
|---|
| Temperature max. °C | 70 |
|---|
| Width mm | 8 |
|---|
| Height mm | 8 |
|---|
| Capac. cond./cond. per 1 m (AES/EBU, DMX) pF | 45 |
|---|
| Capacity wire/wire at 1 ft. (AES/EBU, DMX) pF | 13,716 |
|---|
| Capac. cond./shield. per 1 m (AES/EBU, DMX) pF | 110 |
|---|
| Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) pF | 33,528 |
|---|
| Impedance O | 110 |
|---|
| Insulation resist. per 1 km GO | 0,1 |
|---|
| Insulation resist. per 1000 feet GO | 0,0305 |
|---|
| Insulation resist. per 1 km (AES/EBU, DMX) GO | 0,1 |
|---|
| Insulation resist. per 1000 feet (AES/EBU, DMX) GO | 0,0305 |
|---|
| Conductor resistance per 1 km O | 87 |
|---|
| Conductor resistance per 1000 ft. O | 26,5176 |
|---|
| Shield. resistance per 1 km O | 15 |
|---|
| Shield. resistance per 1000 ft. O | 4,572 |
|---|
| BPVo-Euroclass | Fca |
|---|
