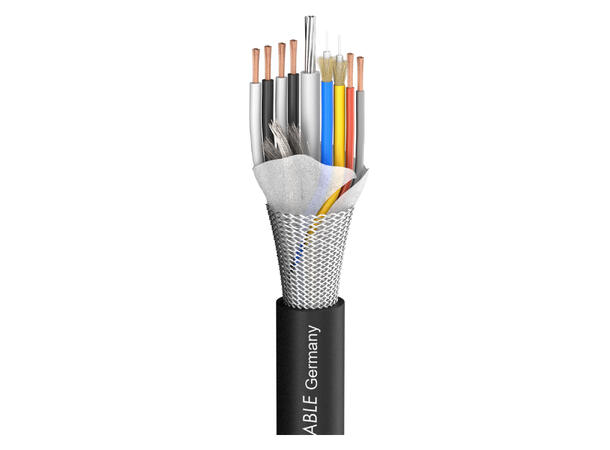

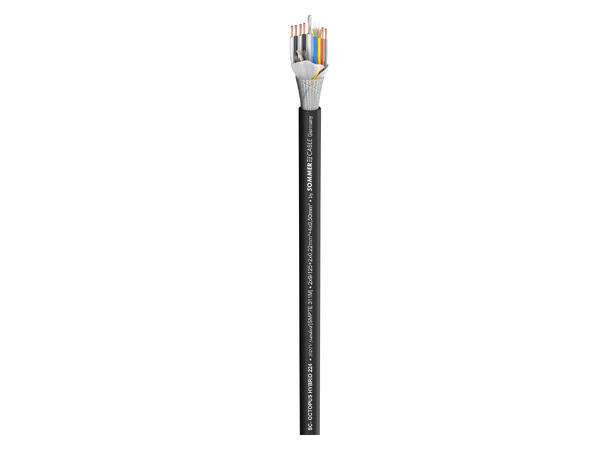

SOMMER Octopus Hybrid224 PUR Hybridkabel power/fiber/control, PUR Ø 9,20 mm, sort SOMMER Octopus Hybrid224 PUR Hybridkabel power/fiber/control, PUR Ø 9,20 mm, sort

SOMMER Octopus Hybrid224 PUR Hybridkabel

power/fiber/control, PUR Ø 9,20 mm, sort

Varenr: 141475
Alt. varenr: 591-2241
188,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Ytterkappe, materiale
PUR
PUR
TPU
TPU
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

Fiber goes Hollywood...

and thus paves the way for vast transmission lengths in digital broadcasting & studio camera technology.
In addition to the two singlemode 9/125 µm fibers for image and sound, 2 control and 4 power wires are provided for camera control and power. A stainless steel rope has been integrated as strain relief. The reelable PUR cable is particularly suitable for mobile applications such as for use in OB vans. The bandwidth at 1km is 600 MHz at 1300 nm.
Alternatively, a version for fixed installation is available (591-2241TPU).


Advantages:

  • Picture, sound, power and control transmission in one cable
  • Built-in strain relief, highly rugged
  • Suitable for 10 Gbit service – high-quality, fast and robust connection for the transmission of digital signals
  • Reelable, therefore suitable for indoor and outdoor transmissions over long transmission distances

Application:

  • Indoor and outdoor transmissions with long transmission lengths
  • Connection of digital cameras for broadcasting, studio and film industry


Specifications:

Article number591-2241
NameSC-Octopus Hybrid 224 PUR
EAN4049371336505
Application areaMobile outdoor / indoor
Application areaStudio / Broadcast
Colourblack
Colour detailedblack
Construction((2x9/125H+4x20AWG2Y+2xAWG24)2Y)(ZN)B11Y
Construction (power)4 x 0,50 mm²
Construction (control)2LI2Y0,22mm²Y
Jacket materialPUR
Jacket Ø mm9,20
Jacket Ø (power) mm1,50
Jacket Ø (control) mm1,10
Number of Channels (power)4
Number of Channels (control)2
Inner conductor (power)1
Inner conductor (power) mm²0,50
Inner conductors (control) mm²0,22
Inner conductor Ø (power) mm0,80
Inner conductor Ø (control) mm0,53
ShieldingTin-plated Cu braid, steel rope
Shielding factor %90
Weight per 1 m g140
UV-resistantyes
Style variantround
Packingbulk stock
Core (fiber) µm9
Cladding (fiber) µm125
Fibres2
QualityOS2 (Typ G.657.A1)
Temperature min. °C-40
Temperature max. °C70
Max. tensile force kN0,7
Width mm9,2
Height mm9,2
Old article number999-0001-317
BPVo-EuroclassFca
