SOMMER Tricone® MKII Instrumentkabel 1 x 0,22 mm², PVC, sort SOMMER Tricone® MKII Instrumentkabel 1 x 0,22 mm², PVC, sort SOMMER Tricone® MKII Instrumentkabel 1 x 0,22 mm², PVC, sort

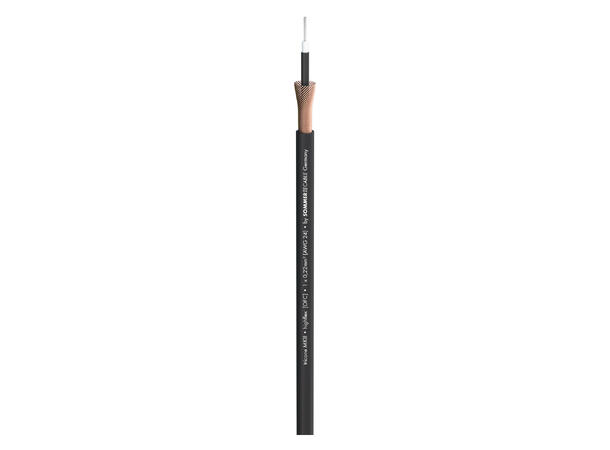

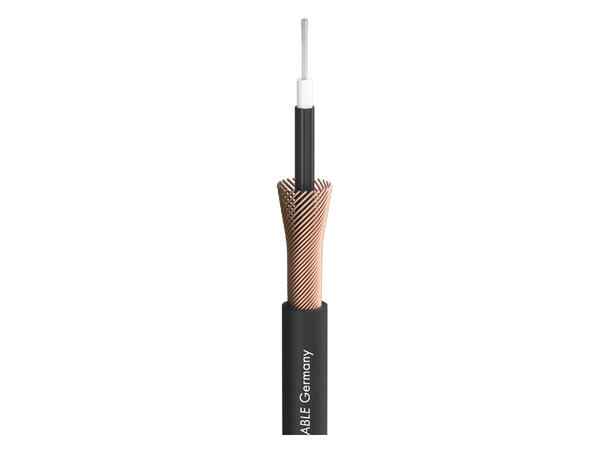

SOMMER Tricone® MKII Instrumentkabel

1 x 0,22 mm², PVC, sort

Varenr: 141486
Alt. varenr: 300-0021
21,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Farge
Sort
Sort
Sort, uten påskrift
Sort, uten påskrift
Blå
Blå
Rød
Rød
Grønn
Grønn

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
  • 100m
  • 500m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

String artists...

Will take pleasure in this cable. The Tricone® MKII is a flexible cable for guitar and keyboard and equally interesting for the gigging musician, studio keyboarder and home recordist. Due to its decent wire cross-section of 0,22 mm² and the fine, tin-plated single litz wires of 0,10 mm it's immune to cable breakage and convinces by high bending cycles. It's very robust, easy to drum and also surprisingly inexpensive. When assembling, make sure to remove the conductive shield (black PVC tube) on the insulation so that it makes no contact with the inner conductor.Tricone® MKII is a protected and registered trademark of Sommer cable GmbH.


Advantages:

  • Very robust due to the large wire cross-section and fine Cu single litz wires
  • Good electrical values due to the Skin PE insulation
  • 100 % protection by dual shielding (helical copper mesh screen + conductive carbon screen)
  • High number of bending cycles

Application:

  • Dependable cable for live applications (guitar and keyboard)
  • Economy-priced Line-in or Patchcable for the Homerecorder


Specifications:

Article number300-0021
NameTricone® MKII
EAN4049371002134
PropertiesOFC oxygen free copper
PropertiesAnalog
Application areaMobile outdoor / indoor
Application areaStage / live
Application areaInstallation
ApplicationInstrument Cable
Colourblack
Colour detailedblack
Signal transmissionasymmetrical

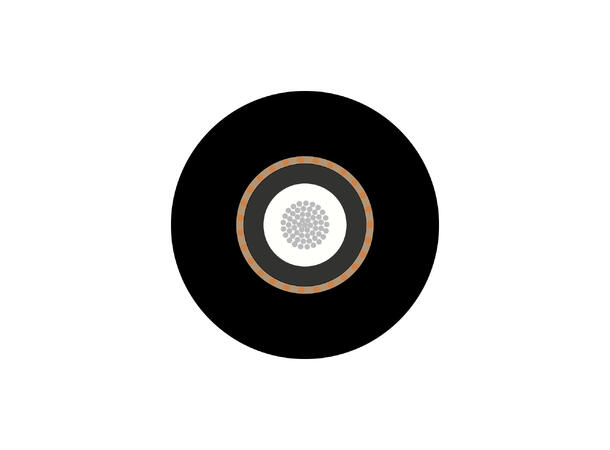

ConstructionLI2Y(LS)DY1x0,22mm²
Jacket materialPVC
Jacket Ø mm5,90
Number of Channels (audio)1
Inner conductor (audio)1
Inner conductor (audio) mm²0,22
Inner conductor Ø (audio) mm0,53
AWG (audio)24
ShieldingCopper braided shielding + semiconductor
Shielding factor %100
Copper strands (audio)28
Copper strand Ø (audio) mm0,10
Conductor insulation materialFoam / Skin-PE
Conductor insulation Ø mm1,80
Weight per 1 m g42
UV-resistantyes
Fire load per m kWh0,26
Style variantround
Packing100 m spool
Packing500 m spool
Temperature min. °C-25
Temperature max. °C60
Width mm5,9
Height mm5,9
Capac. cond./shield. per 1 m (audio) pF85
Capacity wire/electic screen at 1 ft. (audio) pF25,908
Insulation resist. per 1 km GO1
Insulation resist. per 1000 feet GO0,3048
Insulation resist. per 1 km (audio) GO1
Insulation resist. per 1000 feet (audio) GO0,3048
Conductor resistance per 1 km O90
Conductor resistance per 1000 ft. O27,432
BPVo-EuroclassFca
Lenker & dokumenter
Produsentens hjemmesideDatablad
