SOMMER Tricone® XXL Instrumentkabel 1 x 0,50 mm², LLC, Ø 5,90 mm, hvit SOMMER Tricone® XXL Instrumentkabel 1 x 0,50 mm², LLC, Ø 5,90 mm, hvit

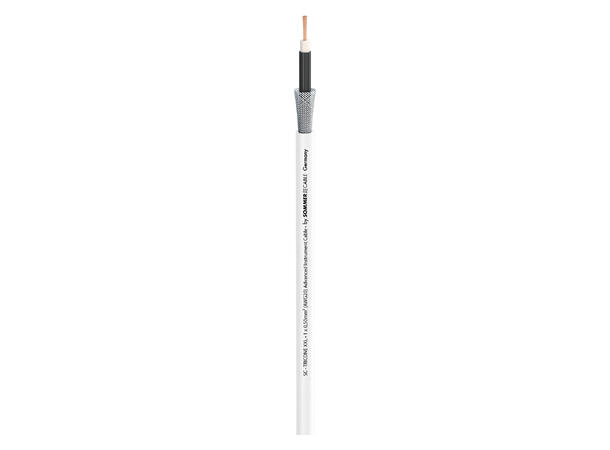

SOMMER Tricone® XXL Instrumentkabel

1 x 0,50 mm², LLC, Ø 5,90 mm, hvit

Varenr: 141502
Alt. varenr: 300-0270
28,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Farge
Hvit
Hvit
Sort
Sort
Blå
Blå
Rød
Rød

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
  • 100m
  • 500m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

Three corners has my hat...

and also the Tricone® XXL jack connector which you can configure yourself on the Tricone® XXL cable without using a soldering gun. With the Tricone® XXL set you cannot only make your own guitar cables, instrument cables and patch cables very easily, but also repair them on site, if necessary – in record time. For detailed

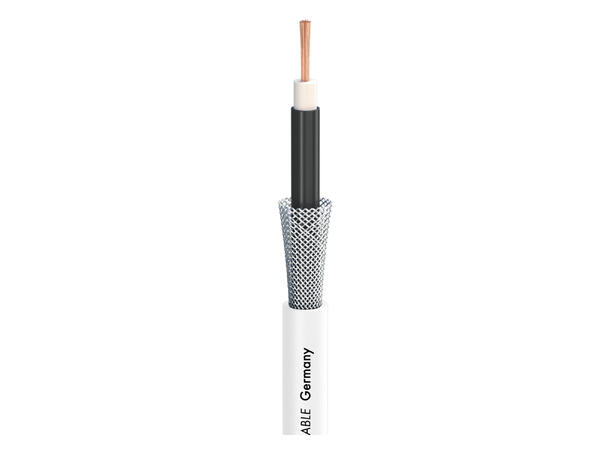

information see chapter “Premade Cables“ or 'Connectors“. The Tricone® XXL has a fat PE foam insulation which is firmly enclosed and held in place by a carbon screen. This will optimise the capacitance and ensure a loss-free treble reproduction even over longer distances. This design and the Cu mesh screen will perfectly protect against external interference. The special LONGLIFE COMPOUND jacket ensures a high tread resistance and tensile strength


Advantages:

  • Powerful, clear sound with the transmission of any instrument signals
  • Dual shielding by Cu mesh screen and conductive carbon screen
  • Highly flexible and easy to reel because of its fine single litz design
  • Extremely durable and rugged due to LONGLIFE COMPOUND jacket

Application:

  • High-quality guitar lead for stage & studio
  • Unbalanced cable for all string instruments, keyboards, samplers, mixing desks
    etc.


Specifications:

Article number300-0270
NameTricone® XXL
EAN4049371246385
PropertiesOFC oxygen free copper
PropertiesAnalog
Application areaStudio / Broadcast
Application areaMobile outdoor / indoor
Application areaStage / live
Application areaInstallation
ApplicationInstrument Cable
Colourwhite
Colour detailedwhite
Signal transmissionasymmetrical
ConstructionLI2Y(LS)CY1x0,50mm2
Jacket materialLLC (Long Life Compound)
Jacket Ø mm5,90
Number of Channels (audio)1
Inner conductor (audio)1
Inner conductor (audio) mm²0,50
Inner conductor Ø (audio) mm0,80
AWG (audio)20
ShieldingCopper spiral tin-plated + semiconductor
Shielding factor %100
Copper strands (audio)28
Copper strand Ø (audio) mm0,15
Conductor insulation materialFoam / Skin-PE
Conductor insulation Ø mm2,80
Weight per 1 m g44
Fire load per m kWh0,27
Style variantround
Packing500 m spool
Packing100 m spool
Temperature min. °C-25
Temperature max. °C60
Width mm5,9
Height mm5,9
Capac. cond./shield. per 1 m (audio) pF85
Capacity wire/electic screen at 1 ft. (audio) pF25,908
Insulation resist. per 1 km GO1
Insulation resist. per 1000 feet GO0,3048
Insulation resist. per 1 km (audio) GO1
Insulation resist. per 1000 feet (audio) GO0,3048
Conductor resistance per 1 km O90
Conductor resistance per 1000 ft. O27,432
BPVo-EuroclassFca
