SOMMER RG Classic Broadcast Videokabel 1 x 1,00, PVC Ø 7,10 mm, grønn SOMMER RG Classic Broadcast Videokabel 1 x 1,00, PVC Ø 7,10 mm, grønn SOMMER RG Classic Broadcast Videokabel 1 x 1,00, PVC Ø 7,10 mm, grønn SOMMER RG Classic Broadcast Videokabel 1 x 1,00, PVC Ø 7,10 mm, grønn SOMMER RG Classic Broadcast Videokabel 1 x 1,00, PVC Ø 7,10 mm, grønn

SOMMER RG Classic Broadcast Videokabel

1 x 1,00, PVC Ø 7,10 mm, grønn

Varenr: 141707
Alt. varenr: 600-0144
45,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om å bli kunde her.
Ytterkappe, materiale

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
  • 100m
  • 500m
  • 1000m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Suited for short and long distance flights...

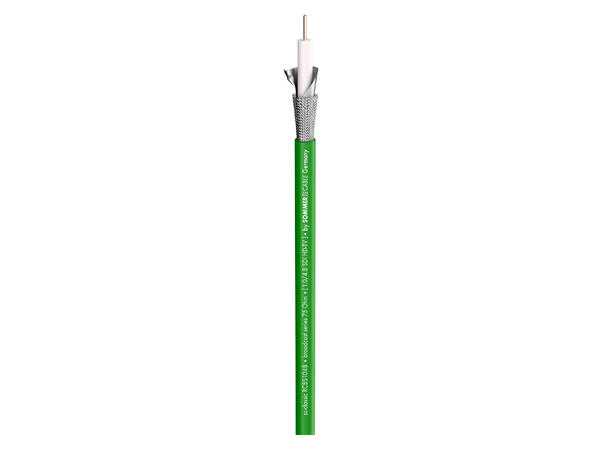

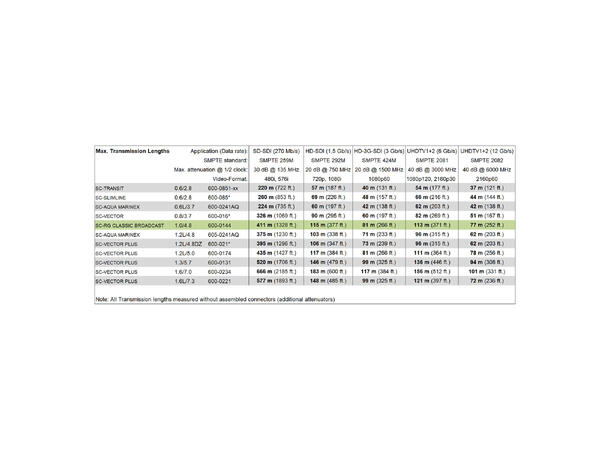

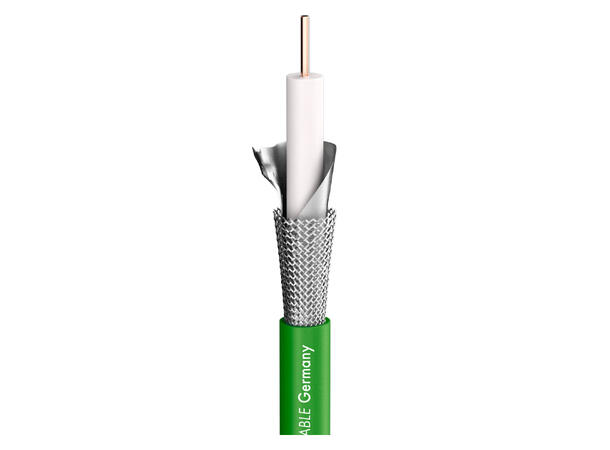

this is our SC-RG Classic Broadcast 1.0/4.8. It meets all the requirements put today on high-quality HD-SDI/HDTV cables and the use of high-class materials promises a long service life. To achieve ultralow damping values we have equipped the cable with a solid core wire of oxygen-free copper (OFC), a gas-injected insulation and a dual screen (Cu mesh + AL/PT foil). Please note the transmission distances for HD-SDI transfer stated in the technical data (see chart). Of course, with analogue video transmissions far greater transmission distances will be possible.


Advantages:

  • Long life due to non-aging jacket
  • Consistent, optimised electrical values due to the use of a massive
    OFC wire
  • Gas-injected insulation for best damping values

Application:

  • HD-SDI-video transmission in the professional broadcasting/studio sector
  • OB van technology
  • HF technology and antenna construction
  • For fixed installations


Specifications:

Article number600-0144
NameSC-RG Classic Broadcast
EAN4049371001809
PropertiesOFC oxygen free copper
PropertiesHDTV
PropertiesSDI
PropertiesAnalog
PropertiesDigital 75 O
Application areaInstallation
Application areaELA 100 V
Applicationvideo cable
Colourgreen
Colour detailedgreen

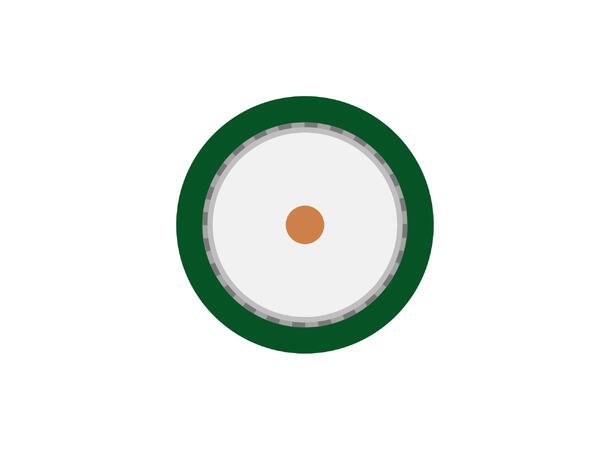

Construction02YS(ST)CH1,0/4,8 HD-SDI
Jacket materialPVC
Jacket Ø mm7,10
Number of Channels (video)1
Inner conductor (video)1
Inner conductor (video) mm²0,79
Inner conductor Ø (video) mm1,00
AWG (video)18
ShieldingCopper braiding tin-plated + AL / PT foil
Shielding factor %100
Copper strands (video)1
Copper strand Ø (video) mm1,00
Conductor insulation materialGas Injected-PE
Conductor insulation Ø mm4,80
Weight per 1 m g64
Fire load per m kWh0,21
Style variantround
Packing1000 m spool
Packing100 m spool
Packing500 m spool
Velocity factor0,82
Temperature min. °C-30
Temperature max. °C70
Max. transmission distance (HD-SDI) m150
Max. transmission distance (3G) m100
Width mm7,1
Height mm7,1
Capacity wire/electic screen at 1m (video) pF53
Capacity wire/electic screen at 1 ft. (video) pF16,1544

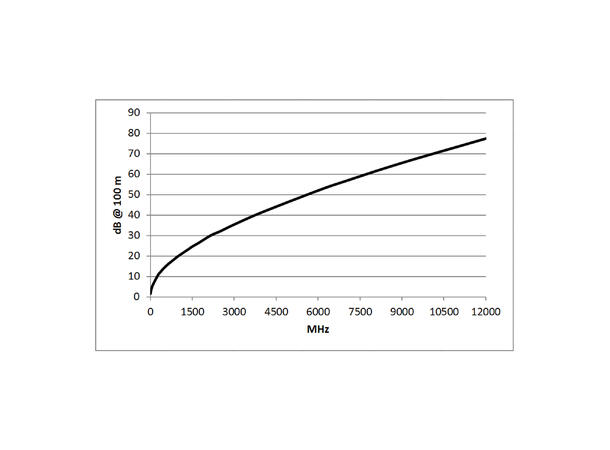

Damping at 50 MHz (100m & 20° C) dB4,5
Damping at 50 MHz (100 ft. & 20 °C / 68 °F) dB1,3716
Damping at 200 MHz (100m & 20° C) dB8,9
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB2,7127
Damping at 470 MHz (100m & 20° C) dB13,9
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB4,2367
Damping at 862 MHz (100m & 20° C) dB18,5
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB5,6388
Damping at 1000 MHz (100m & 20° C) dB20
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB6,096
Damping at 1485 MHz (100m & 20° C) dB24,5
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB7,4676
Damping at 1750 MHz (100m & 20° C) dB26,6
Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) dB8,1077
Damping at 2150 MHz (100m & 20° C) dB30
Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) dB9,144
Damping at 3000 MHz (100m & 20° C) dB35,4
Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) dB10,7899
Damping at 6000 MHz (100m & 20° C) dB52
Damping at 9000 MHz (100m & 20° C) dB65,5
Damping at 12000 MHz (100m & 20° C) dB77,4
Impedance O75
Shield. resistance per 1 km O7
Shield. resistance per 1000 ft. O2,1336
BPVo-EuroclassFca
