SOMMER Vector (RCB) Videokabel 1 x 0,80, PVC Ø 6,00 mm, sort

SOMMER Vector (RCB) Videokabel

1 x 0,80, PVC Ø 6,00 mm, sort

Varenr: 141709

Alt. varenr: 600-0161

25,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Ledere

1 x 0,80mm

2 x 0,80mm

4 x 0,80mm

1050 på lager i Oslo

Beskrivelse

As swift as an arrow...

is the data transmission of the SC-Vector (RCB) with its 1.5 Gb/s rate which also guarantees a low return loss. Of course, the SC-Vector (RCB) can also serve as a high-quality G-SDI-video line for studio or OB van applications. With its dual shielding and outstanding damping values it offers numerous benefits compared to simple video cables. In comparison to a 0.6/3.7 video cable it allows up to 30 % longer transmission distances.
The SC-Vector (RCB) is used in OB vans, digital TV, at sporting events, live shows or other large events.

Advantages:

Low damping values for long distances
Robust and durable outer sleeve

Application:

Video transmission for OB van technology

Specifications:

Article number	600-0161
Name	SC-Vector (RCB)
EAN	4049371193689
Properties	OFC oxygen free copper
Properties	6G-SDI
Properties	Analog
Properties	SDI
Properties	Digital 75 O
Properties	3G-SDI
Application area	Installation
Application area	Studio / Broadcast
Application area	Mobile outdoor / indoor
Application area	ELA 100 V
Application	video cable
Colour	black
Colour detailed	black

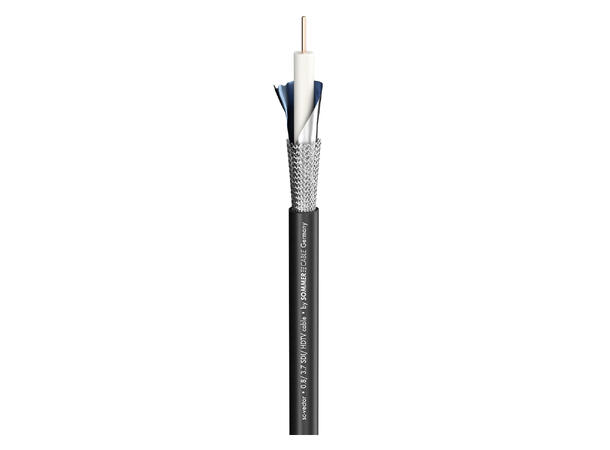

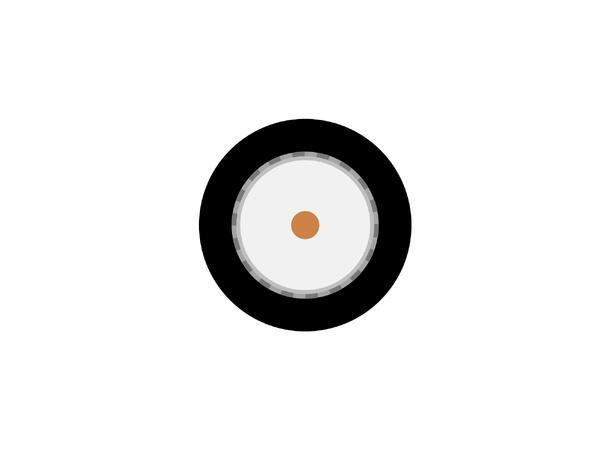

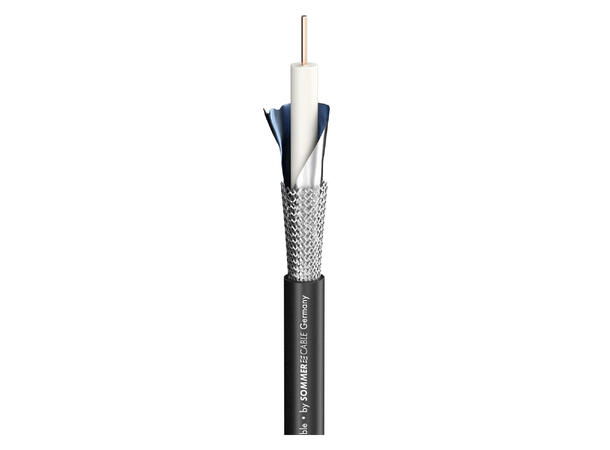

Construction	1x02YS(ST)CH0,8/3,7 HD-SDI
Jacket material	PVC
Jacket Ø mm	6,00
Number of Channels (video)	1
Inner conductor (video)	1
Inner conductor (video) mm²	0,50
Inner conductor Ø (video) mm	0,80
AWG (video)	20
Shielding	AL / PT-foil + Copper braiding tin-plated 85 %
Shielding factor %	100
Copper strands (video)	1
Copper strand Ø (video) mm	0,80
Conductor insulation material	Gas Injected-PE
Conductor insulation Ø mm	3,70
Weight per 1 m g	40
UV-resistant	yes
Fire load per m kWh	0,16
Style variant	round
Packing	bulk stock
Velocity factor	0,82
Temperature min. °C	-10
Temperature max. °C	80

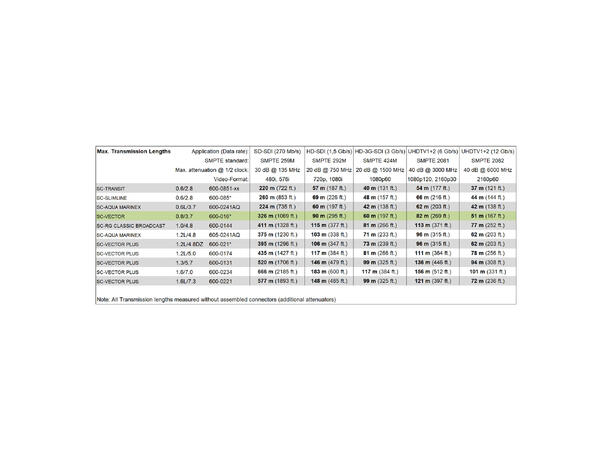

Max. transmission distance (SDI) m	220
Max. Transmission length (3G-SDI) m	160
Max. Transmission length (6G-SDI) m	70
Width mm	6
Height mm	6
Capacity wire/electic screen at 1m (video) pF	52,9
Capacity wire/electic screen at 1 ft. (video) pF	16,1239

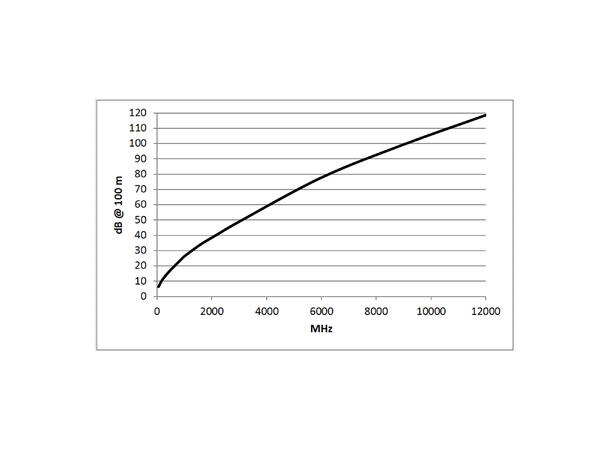

Damping at 200 MHz (100m & 20° C) dB	11,2
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB	3,4138
Damping at 470 MHz (100m & 20° C) dB	17
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB	5,1816
Damping at 862 MHz (100m & 20° C) dB	24
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB	7,3152
Damping at 1000 MHz (100m & 20° C) dB	26,4
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB	8,0467
Damping at 1485 MHz (100m & 20° C) dB	32,8
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB	9,9974
Damping at 1750 MHz (100m & 20° C) dB	35,9
Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) dB	10,9423
Damping at 2150 MHz (100m & 20° C) dB	40,1
Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) dB	12,2225
Damping at 3000 MHz (100m & 20° C) dB	47,9
Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) dB	14,5999
Damping at 6000 MHz (100m & 20° C) dB	77,8
Damping at 9000 MHz (100m & 20° C) dB	99,4
Damping at 12000 MHz (100m & 20° C) dB	118,6
Impedance O	75
Conductor resistance per 1 km O	37
Conductor resistance per 1000 ft. O	11,2776
Shield. resistance per 1 km O	20
Shield. resistance per 1000 ft. O	6,096
BPVo-Euroclass	Fca
