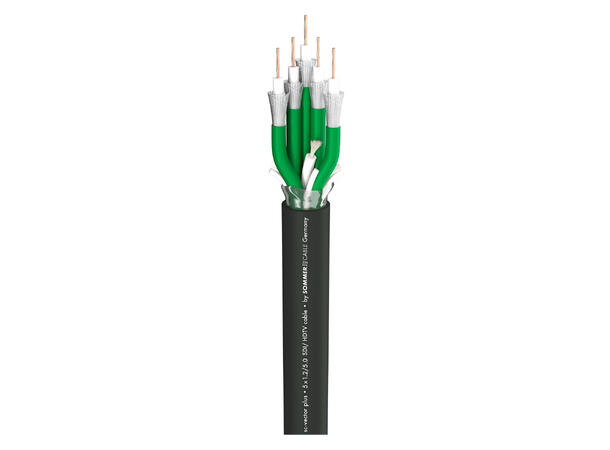

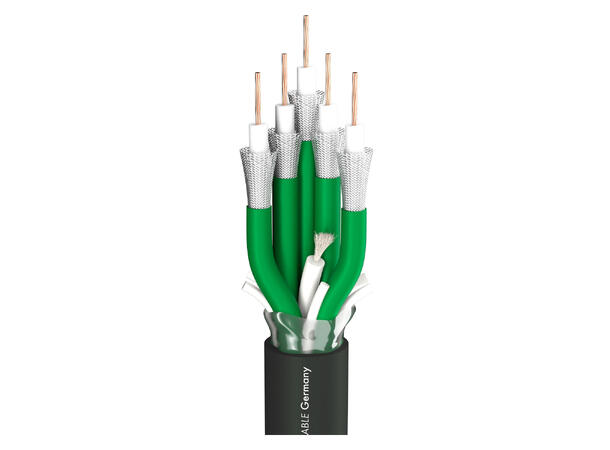

SOMMER Vector Plus 5 Videokabel

1 x 1,20, PVC self-ext. Ø22,10 mm

Varenr: 141716

Alt. varenr: 600-0171-05

255,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Farge

Sort

Grønn

Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Beskrivelse

All the way to the horizon...

and then some more. This is the transmission range of the SC-Vector Plus 5 1.2/5.0, because with its special dimensions and construction it has been designed for long distance HD-SDI applications. Even as an analogue cable it is already pretty amazing: you can transmit video signals over distances of up to 1000 m and as an SDI cable it can be used for distances of up to 600 m. The SC-Vector Plus 5 1.2/5.0 has an excellent shielding 100 % made of a tinned copper mesh plus AL/PT foil. The cable is very flexible and also suitable for mobile use on a cable reel. It is available in a single coax or a 5 x coax version with a PVC and FRNC jacket (according to test type C, IEC60332.3c). With HD-SDI the transmission range depends on the bitrate used (compressed or uncompressed). At 1.485 Gb/s (uncompressed) the damping value is drawn on at half the bitrate (720 MHz). The achievable cable length at a damping value <30 dB is considered as a relevant parameter.

Advantages:

Superb damping values for long distances of up to 1000 m
Robust and durable outer jacket, reelable

Application:

Digital HD/SDI long distance transmission, 3G in duplex mode
Cabling for sporting events and big TV events; OB van technology

Specifications:

Article number	600-0171-05
Name	SC-Vector Plus 5
EAN	4049371341943
Properties	OFC oxygen free copper
Properties	Digital 75 O
Properties	3G-SDI / UHD
Properties	Analog
Properties	SDI
Application area	ELA 100 V
Application area	Mobile outdoor / indoor
Application area	Studio / Broadcast
Application area	Installation
Application	video cable
Colour	black
Construction	5x02YS(ST)CH1,2/5,0
Jacket material	PVC self-extinguishing
Jacket Ø mm	22,10
Number of Channels (video)	1
Inner conductor (video)	5
Inner conductor (video) mm²	0,88
Inner conductor Ø (video) mm	1,20
AWG (video)	18
Shielding	AL / PT-foil + copper braiding 80 % tin-plated
Shielding factor %	100
Copper strands (video)	7
Copper strand Ø (video) mm	0,40
Conductor insulation material	Foam / Skin-PE
Conductor insulation Ø mm	5,00
Weight per 1 m g	510
Fire load per m kWh	2,1
Style variant	round
Packing	bulk stock
Velocity factor	0,8
Temperature min. °C	-10
Temperature max. °C	80
Max. Transmission length (3G-SDI) m	170
Max. Transmission length (6G-SDI) m	70
Width mm	22,1
Height mm	22,1
Capacity wire/electic screen at 1m (video) pF	52
Capacity wire/electic screen at 1 ft. (video) pF	15,8496
Damping at 200 MHz (100m & 20° C) dB	9,9
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB	3,0175
Damping at 470 MHz (100m & 20° C) dB	15,4
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB	4,6939
Damping at 862 MHz (100m & 20° C) dB	20,9
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB	6,3703
Damping at 1000 MHz (100m & 20° C) dB	22,8
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB	6,9494
Damping at 1485 MHz (100m & 20° C) dB	28
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB	8,5344
Damping at 1750 MHz (100m & 20° C) dB	30,5
Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) dB	9,2964
Damping at 2150 MHz (100m & 20° C) dB	34,3
Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) dB	10,4546
Damping at 3000 MHz (100m & 20° C) dB	41,5
Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) dB	12,6492
Impedance O	75
Conductor resistance per 1 km O	21
Conductor resistance per 1000 ft. O	6,4008
Shield. resistance per 1 km O	11
Shield. resistance per 1000 ft. O	3,3528
BPVo-Euroclass	Fca
