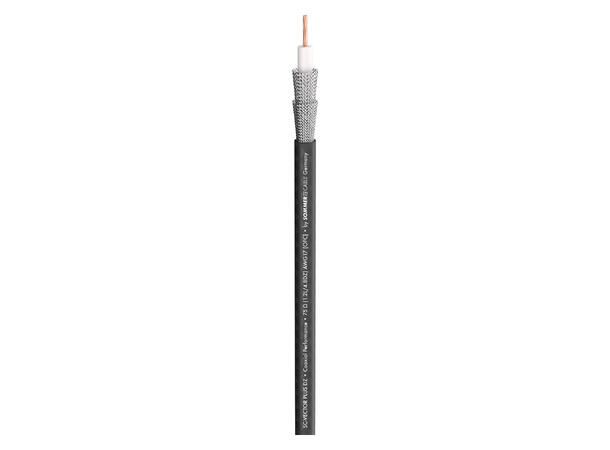

SOMMER Vector Plus DZ Videokabel 1 x 1,20, PUR Ø 7,10 mm, sort SOMMER Vector Plus DZ Videokabel 1 x 1,20, PUR Ø 7,10 mm, sort SOMMER Vector Plus DZ Videokabel 1 x 1,20, PUR Ø 7,10 mm, sort SOMMER Vector Plus DZ Videokabel 1 x 1,20, PUR Ø 7,10 mm, sort SOMMER Vector Plus DZ Videokabel 1 x 1,20, PUR Ø 7,10 mm, sort

SOMMER Vector Plus DZ Videokabel

1 x 1,20, PUR Ø 7,10 mm, sort

Varenr: 141721
Alt. varenr: 600-0211
83,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Farge
Sort
Sort
Grønn
Grønn

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
100m
100 på lager i Oslo
BeskrivelseLenker & dokumenter
Beskrivelse

Very common throughout the Wild West…

is this robust and dependable video and SAT cable that was originally designed in the United States. However, with its solid PE insulation its specifications were not

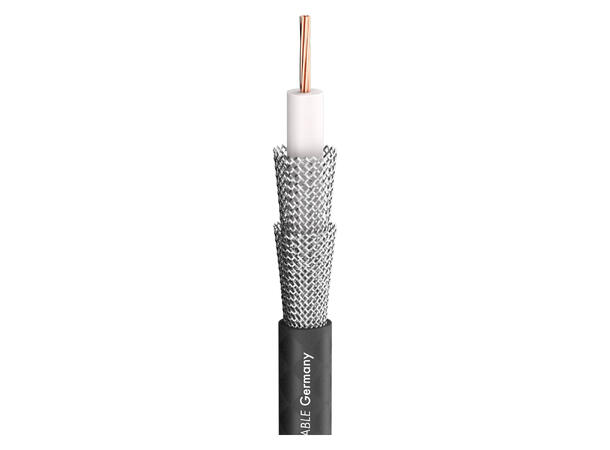

satisfactory and the cable was not robust enough. Contrary to the original version we have significantly improved the new SC-Vector Plus DZ. Now it is SDI/HD-SDI capable and reelable and thus may be used as a flexible video line! It has a foamed insulation with a protective lacquer, a 7 x 0,40 mm litz construction, two overlaying cross meshes each with 100 % coverage and a weather-proof and notch-resistant PMB jacket. The copper meshes also make the cable extremely treadresistant and offer protection against rodents.


Advantages:

  • Excellent transmission quality due to foam insulation
  • Steadily consistent values
  • UV- and notch-resistant PUR jacket, rodent protection

Application:

  • Dual shielded cable for digital SAT systems and professional video technology
  • Professional HD-SDI applications
  • Highly flexible and easy to reel


Specifications:

Article number600-0211
NameSC-Vector Plus DZ
EAN4049371049207
PropertiesAnalog
PropertiesFRNC flame retardant
PropertiesDigital 75 O
PropertiesHDTV
PropertiesOFC oxygen free copper
PropertiesHalogen-free / LSZH
PropertiesPUR
PropertiesSDI
Application areaMobile outdoor / indoor
Application areaELA 100 V
Application areaInstallation
Application areaStudio / Broadcast
Applicationvideo cable
Colourblack
Colour detailedblack

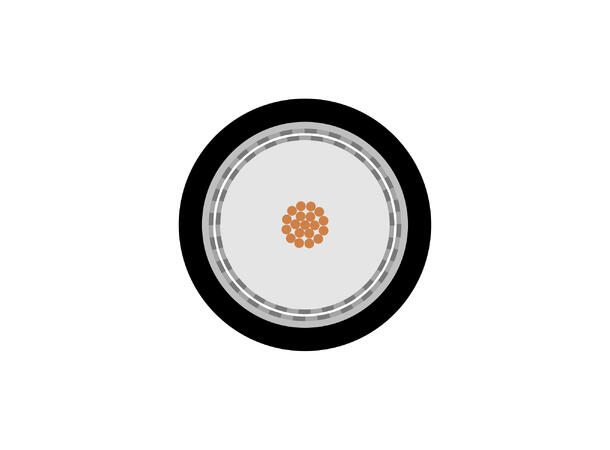

Construction02YSCCH1,2L/4,8
Jacket materialPUR
Jacket Ø mm7,10
Number of Channels (video)1
Inner conductor (video)1
Inner conductor (video) mm²0,88
Inner conductor Ø (video) mm1,20
AWG (video)18
Shielding2 x Copper braiding tin-plated
Shielding factor %100
Copper strands (video)7
Copper strand Ø (video) mm0,40
Conductor insulation materialFoam / Skin-PE
Conductor insulation Ø mm4,80
Weight per 1 m g68
UV-resistantyes
Style variantround
Packing100 m, bulk stock
Velocity factor0,86
Temperature min. °C-30
Temperature max. °C80

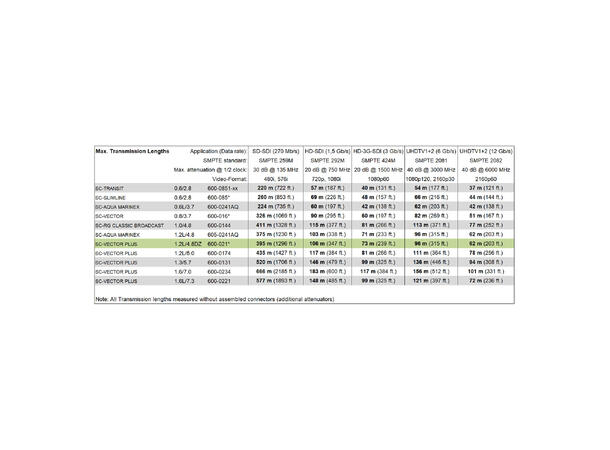

Max. Transmission length (3G-SDI) m180
Max. Transmission length (6G-SDI) m70
Width mm7,1
Height mm7,1
Capacity wire/electic screen at 1m (video) pF53
Capacity wire/electic screen at 1 ft. (video) pF16,1544

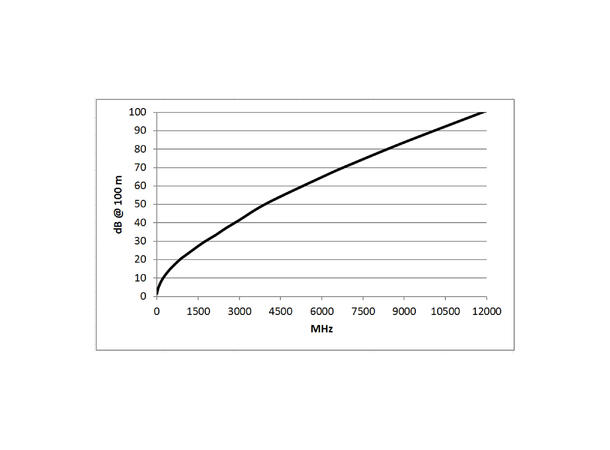

Damping at 50 MHz (100m & 20° C) dB7,8
Damping at 50 MHz (100 ft. & 20 °C / 68 °F) dB2,3774
Damping at 200 MHz (100m & 20° C) dB9,4
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB2,8651
Damping at 470 MHz (100m & 20° C) dB14,7
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB4,4806
Damping at 862 MHz (100m & 20° C) dB20,4
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB6,2179
Damping at 1000 MHz (100m & 20° C) dB21,9
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB6,6751
Damping at 1485 MHz (100m & 20° C) dB27,2
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB8,2906
Damping at 1750 MHz (100m & 20° C) dB29,9
Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) dB9,1135
Damping at 2150 MHz (100m & 20° C) dB33,5
Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) dB10,2108
Damping at 3000 MHz (100m & 20° C) dB41,5
Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) dB12,6492
Damping at 6000 MHz (100m & 20° C) dB64,8
Damping at 9000 MHz (100m & 20° C) dB83,7
Damping at 12000 MHz (100m & 20° C) dB100,9
Impedance O75
Conductor resistance per 1 km O20
Conductor resistance per 1000 ft. O6,096
Shield. resistance per 1 km O5,6
Shield. resistance per 1000 ft. O1,7069
BPVo-EuroclassFca
