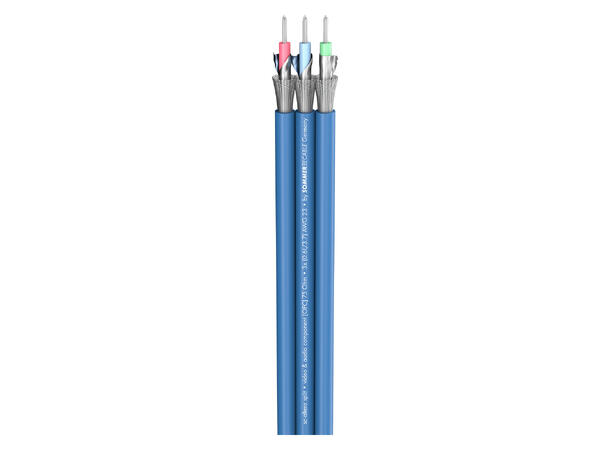

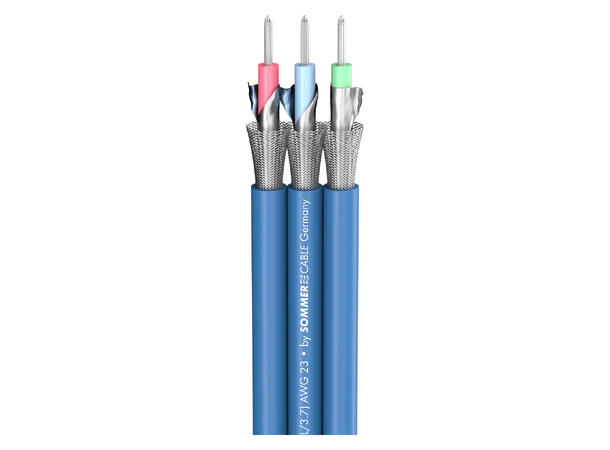

All for one and one for all...
Advantages:
- Highly flexible, easy to split
- Excellent shielding due to dense mesh screen and AL/PT foil
- Very dependable, tread-resistant and durable due to thick PVC jacket
- Easy handling due to RBG colour coding and jacketed single wires
- Suitable for analogue and digital applications
Application:
- Highly flexible cable for connecting beamers, flatscreen TV, etc.
- High-quality connection of hifi components (DVD, home cinema receiver)
Specifications:
| Article number | 600-0712 |
|---|
| Name | SC-Altera Split |
|---|
| EAN | 4049371002738 |
|---|
| Properties | Digital 75 O |
|---|
| Properties | Analog |
|---|
| Application area | Studio / Broadcast |
|---|
| Application area | Installation |
|---|
| Application | video cable |
|---|
| Colour | blue |
|---|
| Colour detailed | blue |
|---|

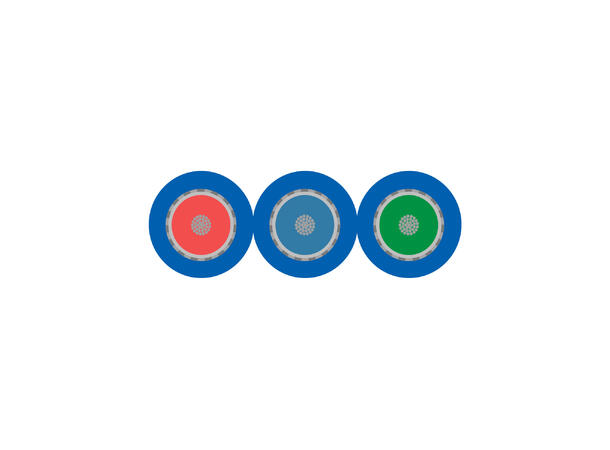

| Construction | 3x02YS(ST)CY0,6/3,7 |
|---|
| Construction (video) | 3xHF75 0,6/3,7 |
|---|
| Jacket material | PVC |
|---|
| Jacket Ø mm | 0,00 |
|---|
| Number of Channels (video) | 1 |
|---|
| Inner conductor (video) | 3 |
|---|
| Inner conductor (video) mm² | 0,34 |
|---|
| Inner conductor Ø (video) mm | 0,66 |
|---|
| AWG (video) | 23 |
|---|
| Shielding | Copper braiding 90 % + AL / PT-foil |
|---|
| Shielding factor % | 100 |
|---|
| Copper strands (video) | 17 |
|---|
| Copper strand Ø (video) mm | 0,16 |
|---|
| Conductor insulation material | PE |
|---|
| Conductor insulation Ø mm | 3,70 |
|---|
| Weight per 1 m g | 130 |
|---|
| Fire load per m kWh | 0,57 |
|---|
| Style variant | twin |
|---|
| Packing | 100 m spool |
|---|
| Temperature min. °C | -25 |
|---|
| Temperature max. °C | 70 |
|---|
| Width mm | 18 |
|---|
| Height mm | 6,2 |
|---|
| Capacity wire/electic screen at 1m (video) pF | 56 |
|---|
| Capacity wire/electic screen at 1 ft. (video) pF | 17,0688 |
|---|

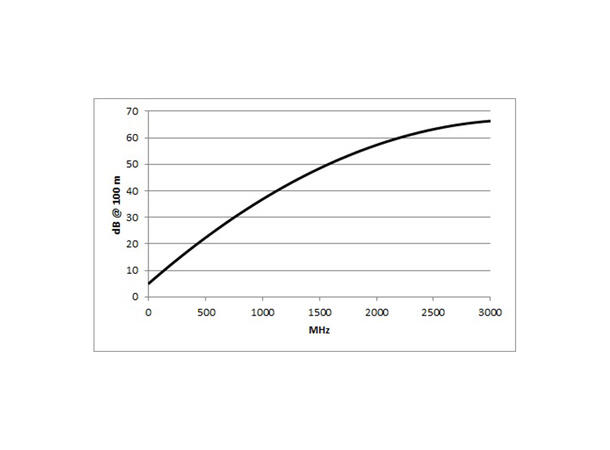

| Damping at 5 MHz (100m & 20° C) dB | 2,6 |
|---|
| Damping at 5 MHz (100 ft. & 20 °C / 68 °F) dB | 0,7925 |
|---|
| Damping at 50 MHz (100m & 20° C) dB | 7 |
|---|
| Damping at 50 MHz (100 ft. & 20 °C / 68 °F) dB | 2,1336 |
|---|
| Damping at 100 MHz (100m & 20° C) dB | 8,8 |
|---|
| Damping at 100 MHz (100 ft. & 20 °C / 68 °F) dB | 2,6822 |
|---|
| Damping at 470 MHz (100m & 20° C) dB | 21,4 |
|---|
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB | 6,5227 |
|---|
| Damping at 862 MHz (100m & 20° C) dB | 33,1 |
|---|
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB | 10,0889 |
|---|
| Impedance O | 75 |
|---|
| BPVo-Euroclass | Fca |
|---|
