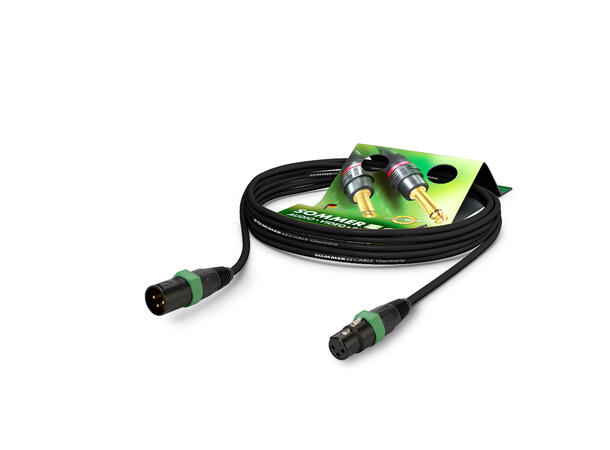

The halogen-free SC-Symbiotic is the perfect cable for outdoor and indoor transmissions and where only little space is available. The special TPE jacket material makes it extremely resistant to notching and hot as well as cold temperatures (–40 °C/+125 °C). In technical terms we designed the SC-Symbiotic to comply with the existing BBC and ARD broadcasting standard, using superfine 0.05 mm OFC copper litz wires and a dual braided copper mesh screen. The cable has 3 wires used for HOT, COLD and GROUND. The screen is connected with the connector housing and is protected by an insulating sleeve. We supply this cable with gold-plated NEUTRIK NC3MX-B and NC3FX-B connectors and a transparent 2“ (5 cm) shrink-on tube (unshrinked) for your individual labels. For identification purposes we use removable colour code rings.
Configuration:
0,50 m Microphone Cable SC-Symbiotic 3; 3 x 0,20 mm²; TPE Ø 5,20 mm; black (200-0601H3)
1 x NEUTRIK XLR, 3-pole , metal-, Soldering-female connector, gold plated contact(s), straight, chrome-plated (NC3FX-B)
1 x NEUTRIK Code ring for XLR MX, XLR FX green (XCR5)
1 x NEUTRIK XLR, 3-pole , metal-, Soldering-male connector, gold plated contact(s), straight, chrome-plated (NC3MX-B)
1 x NEUTRIK Code ring for XLR MX, XLR FX green (XCR5)
0,1 x BTM095/TR
1 x Cardboard packaging for blister hooks, Design Sommer cable
Specifications:
| Article number | SH35U0050-SW-GN |
|---|
| EAN | 4049371152983 |
|---|
| Colour | black |
|---|
| Length m | 0,5 |
|---|
| Article number | SH35U |
|---|
| Name | SC-Symbiotic |
|---|
| Brand | Sommer cable |
|---|
| Application | Microphone Cable |
|---|
| Inner conductor | 3 |
|---|
| Inner conductor mm² | 0,20 |
|---|
| Connector-Brand | NEUTRIK |
|---|
| Type | XLR |
|---|
| Type (detailed) | XLR 3-pole female, Gold contact |
|---|
| Type (detailed) | XLR 3-pole male, Gold contact |
|---|
