We use the notch-resistant and dirt-repellent...

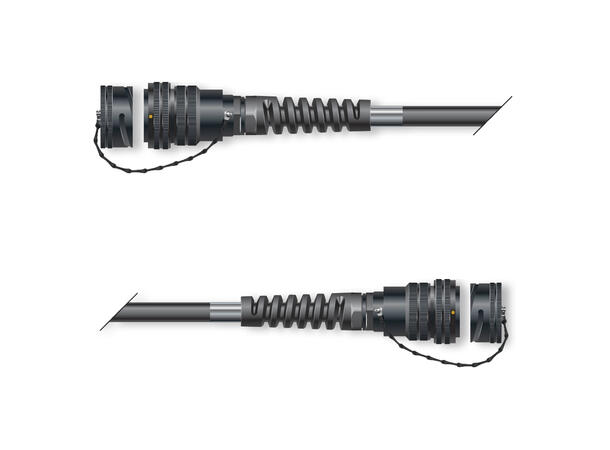

TRANSFER AMCK (single insulated wire pairs, cross-braided screen, highly flexible PUR-Blend jacket). As connectors we use two TOURLOCK multipin sockets (with protective caps). All multipairs shown here are equipped with separate grounding as standard. We have fitted a 10 cm unshrunk transparent shrink-on tube at both cable ends for your personal labelling. For the QM-versions we use our highly fl exible QUANTUM tailored for use in stage areas (stage sub-distributions). This cable can be reeled easily on your hand and fi ts nicely into every corner on stage.
By using the optionally available extension adapters (also nicknamed “spookies”), 2 x female-female cables can be linked as well.
We gladly accept your written orders for other confi gurations and special designs
by fax or e-mail under support@sommercable.com.
Complete with multipin protective bag!
Configuration:
5,00 m Multipair SC-Quantum QMC; S-PVC; black, mat | 2 x 0,14 mm² x number of pairs 12 (100-0451-12)
1 x HICON Round LK, arrangement 28-21, size 16, 37-pole , metal-, Cable socket, bayonet husk, black (HI-LK037FV)
1 x HICON Round-LK 37 female (CIR28), Cover cap, Bajonet, black (HI-LKCAP-F37)
1 x Sommer cable Protective Bag for Round plug HI-LK up to 54-pole HI-SOCA 19-pole, subsequent assembly possible, grey (BAG-LKM-O)
0,05 x BPDWM-18/06-TR
1 x HICON Round LK, arrangement 28-21, size 16, 37-pole , metal-, Cable socket, bayonet husk, black (HI-LK037FV)
1 x HICON Round-LK 37 female (CIR28), Cover cap, Bajonet, black (HI-LKCAP-F37)
1 x Sommer cable Protective Bag for Round plug HI-LK up to 54-pole HI-SOCA 19-pole, subsequent assembly possible, grey (BAG-LKM-O)
0,05 x BPDWM-18/06-TR
Specifications:
| Length ft | 16,4 |
|---|
| Article number | QMVH-M12/00-0500 |
|---|
| EAN | 4049371146470 |
|---|
| In | 12 |
|---|
| Out | 00 |
|---|
| Configuration | separate grounding |
|---|
| Length m | 5 |
|---|
| Reel | none |
|---|
| Article number | MCORE-LKLK |
|---|
| Name | Multicore cable round LK <-> Round LK |
|---|
| Application | Multicore cable with round LK-connector -> Round LK-connector |
|---|
| Additional function | seperate grounding |
|---|
| Old article number | TFXC-M |
|---|
