Our Monolith cable family...

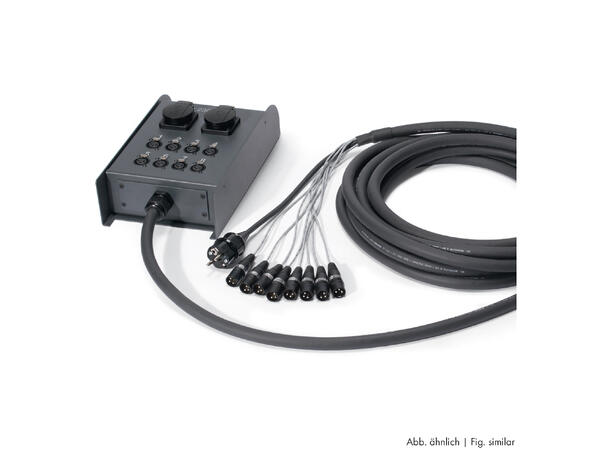

generated the idea for this straight and structured stage cabling to combine signal and power leads. The result was a compact floor stagebox which provides 2 Schuko sockets as well as a max. of 8 D openings.
Now every band, every small festival stage or every fixed installation can be equipped with a simple, efficient and reasonably priced cabling.
The box is available in different configurations:
1.) Box with fixed cable to breakout
2.) Box with 1 or 2 multipins
As a supplement there are also various breakout cables and extension adapters available. As an alternative we offer our proven cable reel systems with a built-in patch panel where we make use of the same components. To make the system also usable for wiring lighting technology setups, we also supply this solution with 5-pole XLR connectors.
We offer the country-specific UK and France/Belgium versions for the same price.
If you cannot find your desired configuration on these pages, please contact us.
Configuration:
1 x +TBH020800
5,00 m SC-Monolith 8 HV; power: 3 x 2,50 mm²; DMX: 2 x 0,14 mm²; PVC Ø 17,40 mm; black (500-0281-8)
2 x #SCHU-FP230/16DS
8 x NEUTRIK XLR, 3-pole , metal-, Soldering-female connector, silver plated contact(s), Type D M3, nickel coloured (NC3FDLX-M3)
1 x Mennekes SCHUKO, 2-pole , plastic-, screw-type-male connector, nickel plated contact(s), straight, max. 2,5 mm², black (SCHU-MC230/16PSW)
8 x NEUTRIK XLR, 3-pole , metal-, Soldering-male connector, silver plated contact(s), straight, chrome-plated (NC3MXX-BAG)
Specifications:
| Length ft | 16,4 |
|---|
| Article number | XHFH-M08/00-0500 |
|---|
| EAN | 4049371161794 |
|---|
| In | 08 |
|---|
| Out | 00 |
|---|
| Length m | 5 |
|---|
| Article number | XHFH-M |
|---|
| Brand | Sommer cable |
|---|
| Application | AES / EBU, DMX & power system |
|---|
| Connector-Brand | NEUTRIK |
|---|
| Connector-Brand | HARTING |
|---|
| Cable | SC-Monolith |
|---|
| Type | XLR |
|---|
| Type | Schuko |
|---|
| Type (detailed) | XLR 3-pole female |
|---|
| Type (detailed) | XLR 3-pole male |
|---|
| Type (detailed) | Schuko connector male |
|---|
| Type (detailed) | Schuko mountingsocket (IP54) |
|---|
