A unique and sophisticated design...
is the main feature of this stagebox. The patch surface is slanted. The XLR cables will no longer protrude into the air and thus cannot be bent. Everything is appealing and clearly structured, and nobody will trip over the “darn thing“.

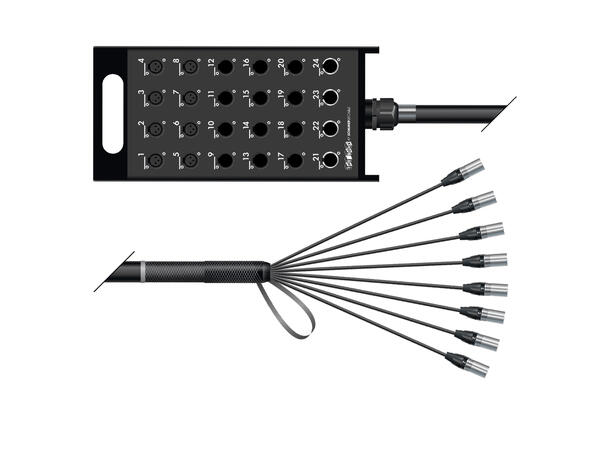

The PLUG MAMA MK II is a reasonably priced, professional, completely pre-wired stagebox with a noble guise. We use high-quality components such as our flexible QUANTUM HIGHFLEX and SC-PLANET multipair cables with single insulated, shielded and numbered or colour-coded wire pairs plus HICON or NEUTRIK connectors.
The steel body is incredibly robust and scratch-resistant. The input connectors are clearly separated from the output connectors, and the outputs are exactly where
they belong, i.e. on the rear side of the box! For reasons of clarity the large numbers have been placed slightly to the right where they won’t be covered by the locks on the XLR sockets. The small PLUG MAMA MK II PM 12/4 is ideal for the subdistribution of reels.
Configuration:
1 x SOMMER CABLE Stagebox empty casing, THE BOXX, 8 x hole D-type / output multipin 16/24/37 universal, width: 195 mm, height: 211 mm, anthracite RAL7016 (TBH08-MK3)
10,00 m Multipair SC-Quantum QMC; S-PVC; black, mat | 2 x 0,14 mm² x number of pairs 08 (100-0451-08)
8 x NEUTRIK XLR, 3-pole , metal-, Soldering-female connector, silver plated contact(s), Type D M3, nickel coloured (NC3FDLX-M3)
0,05 x BPDWM-18/06-TR
8 x NEUTRIK XLR, 3-pole , metal-, Soldering-male connector, silver plated contact(s), straight, nickel coloured (NC3MXX)
0,05 x BPDWM-18/06-TR
1 x Cable grip 10 - 18 mm (BD9)
Specifications:
| Length ft | 32,81 |
|---|
| Article number | XQNF-M08/00-1000 |
|---|
| EAN | 4049371072595 |
|---|
| In | 08 |
|---|
| Out | 00 |
|---|
| Configuration | separate grounding |
|---|
| Length m | 10 |
|---|
| Article number | BOX-MCORE |
|---|
| Application | Stagebox <-> Multicore |
|---|
