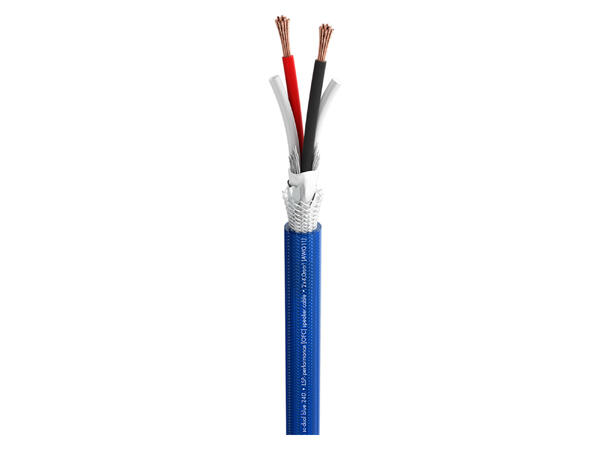

Miracles keep happening...
Advantages:
- Tight, low-capacitance stranding of the 2 wires
- Concentric, ultra compact stranding of the 504 x 0.10 mm single litz wires
- Gas-injected insulation with dual interconnection
- Screen made of tight copper braiding with 95% optical coverage
- Use of ultra-grade copper quality with conductor smoothing (OFC Class6N, 99.9999%)
Application:
- High-quality hifi speaker cable for demanding requirements
Specifications:
| Article number | 485-0052-240 |
|---|
| Name | SC-DUAL BLUE |
|---|
| EAN | 4049371235778 |
|---|
| Properties | Analog |
|---|
| Properties | OFC oxygen free copper |
|---|
| Application area | Installation |
|---|
| Application area | Studio / Broadcast |
|---|
| Application | Speaker Cable |
|---|
| Colour | blue |
|---|
| Colour detailed | aqua |
|---|
| Construction | (2LIY4,0mm²)(ST)CY |
|---|
| Construction (audio) | (2LIY4,0mm²)CY |
|---|
| Jacket material | S-PVC |
|---|
| Jacket Ø mm | 15,50 |
|---|
| Number of Channels (audio) | 1 |
|---|
| Inner conductor (audio) | 2 |
|---|
| Inner conductor (audio) mm² | 4,00 |
|---|
| AWG (audio) | 11 |
|---|
| Shielding | Copper braiding tin-plated |
|---|
| Copper strands (audio) | 504 |
|---|
| Copper strand Ø (audio) mm | 0,10 |
|---|
| Conductor insulation material | Skin-PE gas-injected |
|---|
| Conductor insulation Ø mm | 4,10 |
|---|
| Weight per 1 m g | 340 |
|---|
| Fire load per m kWh | 0,55 |
|---|
| Style variant | round |
|---|
| Packing | bulk stock |
|---|
| Packing | 50m spool |
|---|
| Temperature min. °C | -20 |
|---|
| Temperature max. °C | 70 |
|---|
| Width mm | 15,5 |
|---|
| Height mm | 15,5 |
|---|
| Capac. cond./cond. per 1 m (audio) pF | 65 |
|---|
| Capacity wire/wire at 1 ft. (audio) pF | 19,812 |
|---|
| Insulation resist. per 1 km (audio) GO | 0,005 |
|---|
| Insulation resist. per 1000 feet (audio) GO | 0,0015 |
|---|
| Conductor resistance per 1 km (audio) O | 4,5 |
|---|
| Conductor resistance per 1000 ft. (audio) O | 1,3716 |
|---|
| BPVo-Euroclass | Fca |
|---|
