SYSBOARD 18 Veggkabinett

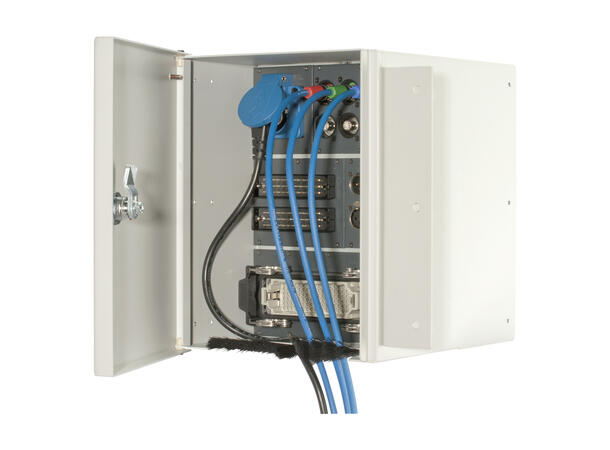

if you have the SYSBOARD installation housing for wall mount. This enables the installation of classic offsets with SYSBOXX components. Owing to the 100 mm offset mounting position even a multipin connector may remain plugged in despite the door being closed.

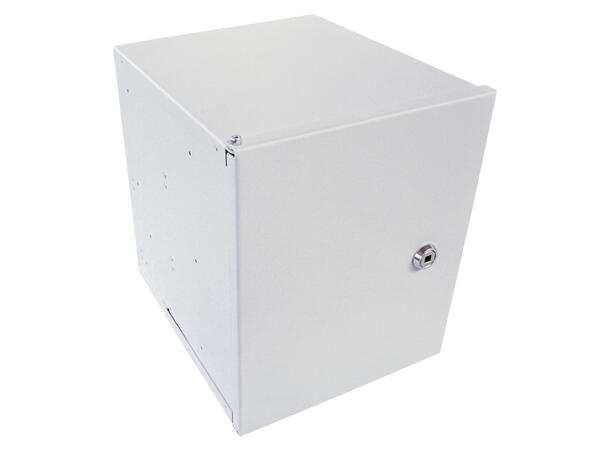

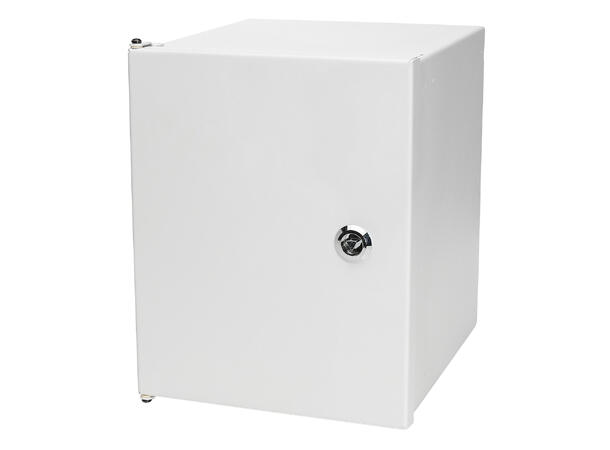

The bottom of the housing also has a 154 x 30 mm opening for the supplied cable brush bushing to lead out cables also with the box closed. The door has a convertible stop variable closing position and can be locked with a square-section key (also available with a lamella locking cylinder plate barrel with up to 200 different closures positions). The housing sits either “on-wall” or can also be recessed in 2 positions into the wall using the supplied mounting brackets.

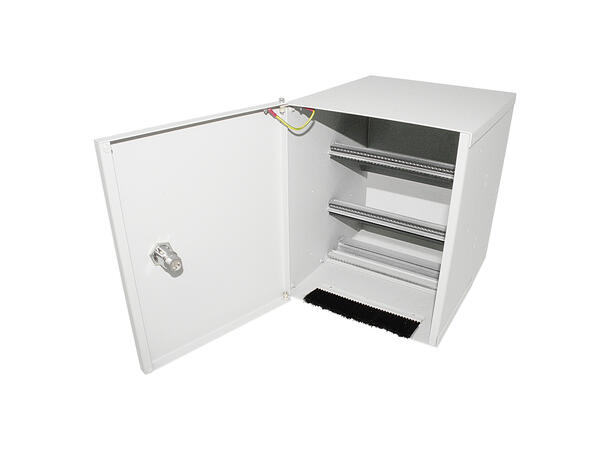

Inside the SYSBOARD a large number of SYSBOXX front panels with up to 48 XLR-type-D can be fitted on a width of 9.5“ (6 WU) and 3 x 2 HU. Openings for the cable insertion are located on the back as well as on the rear bottom and can also be fitted with SYSBOXX front panels on a width of 6 WU (9.5“) each. The front panels are secured by M2.5 self-tapping countersunk screws. Please order separately.
IP44 protection class is achieved when closed.

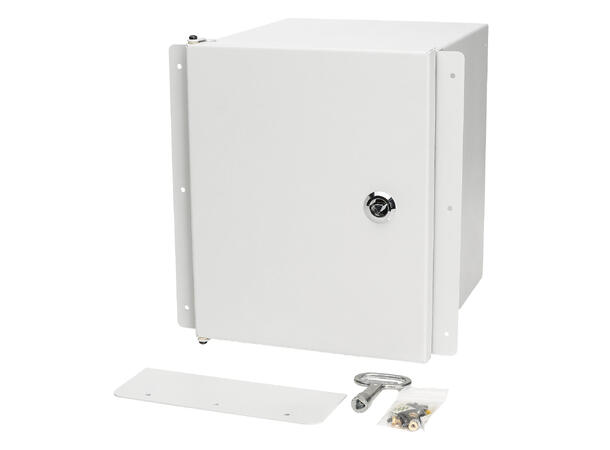

Supplied accessories:
SYSBOARD18 housing
Cable brush bushing
Cover panel (if no brush is required),
2x fixing brackets
8 x S-G4,0X10C-TS Screw for fixing brackets
3 x S-M3,0X10C-TS Screw for brush/cover panel
incl. S-T3,0X00I-AB Screw nut
1x SYSBOXX grounding set
1x square socket key
