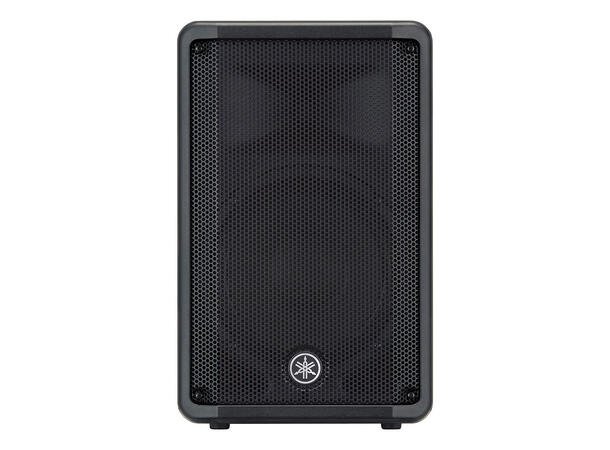

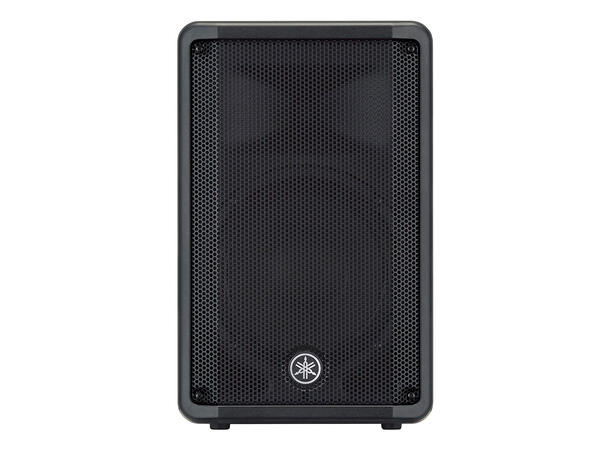

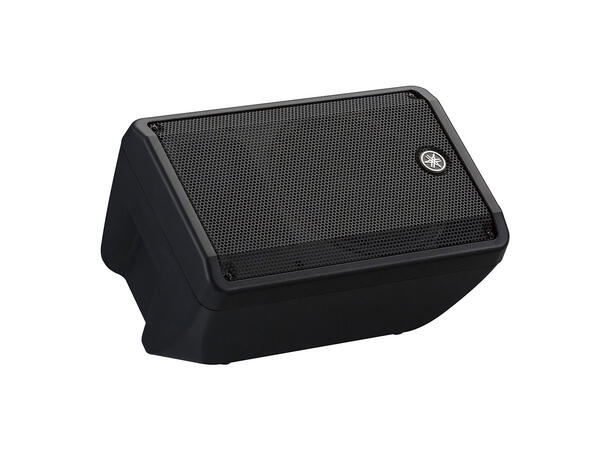

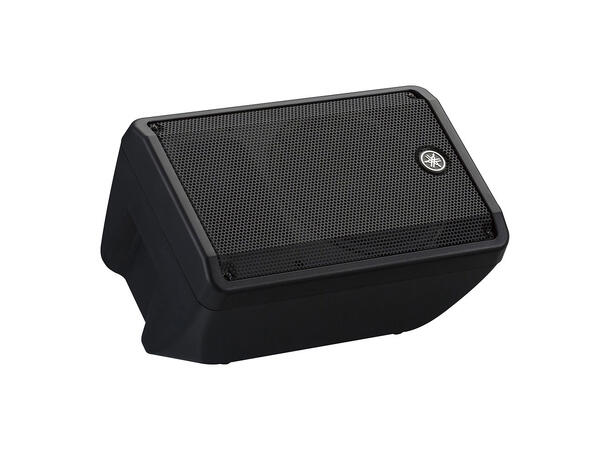

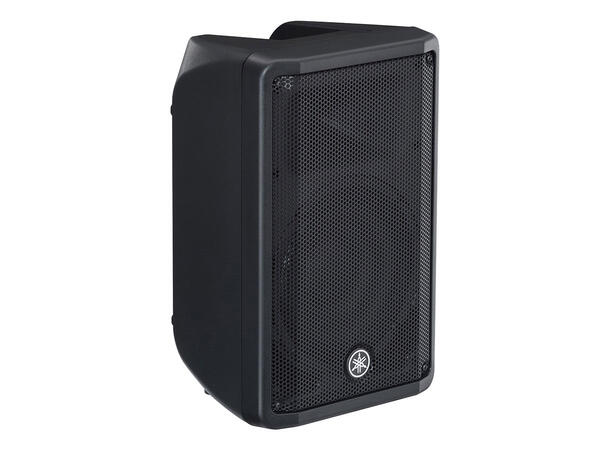

The CBR10 is the most compact model in its series. While delivering astonishing power for its
size and weight, the CBR10 is ideal for both portable and installed applications.
General specifications
Speaker type 2-way Speaker, Bass-reflex Type
Frequency range (-10dB) 50 Hz - 20 kHz
Nominal coverage H 90°
V 60°
Components LF 10" Cone, 2" Voice Coil (Ferrite Magnet)
HF 1" Voice Coil, Compression Driver (Ferrite Magnet)
Power rating NOISE 175W
PGM 350W
PEAK 700W
Nominal impedance 8O
SPL Sensitivity (1W; 1m on axis) 94dB SPL
Peak (Calculated) 123 dB SPL

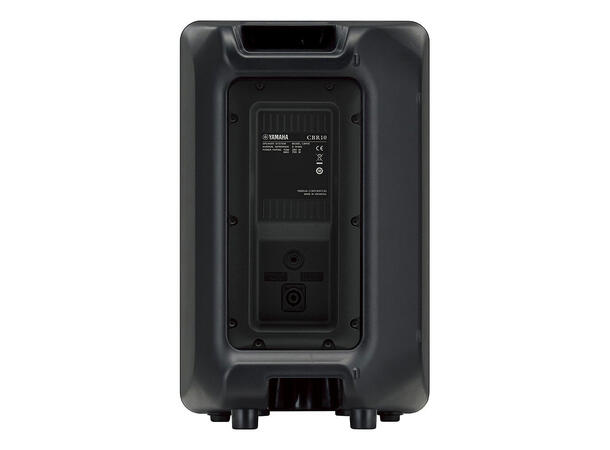

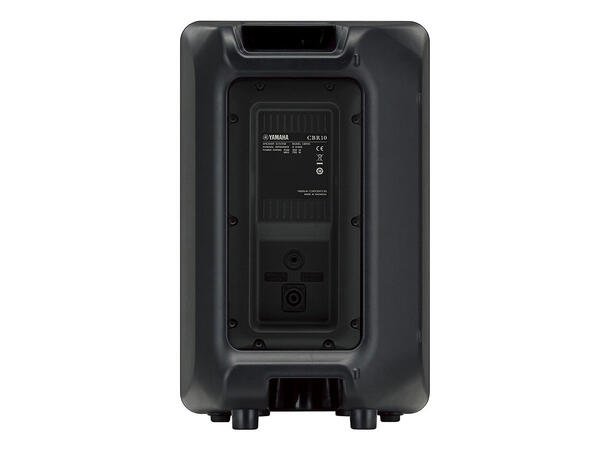

I/O connectors 1/4" Phone x 1, speakON NL4MP x 1
Dimensions W 308mm (12.1")
H 493mm (19.4")
D 289mm (11.4")
Net weight 9.4 kg (20.7 lbs)
Cabinet material Plastic
Finish Black
Handle Top x 1
Flying and mounting hardware Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts)
Pole socket F35 mm Bottom x 1
Accessories Optional Speaker Bracket: BBS251, BCS251, BWS251-300,
BWS251-400
Crossover 2.8 kHz
