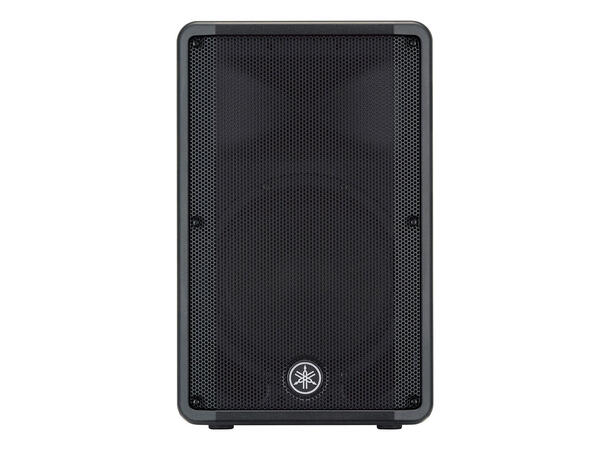

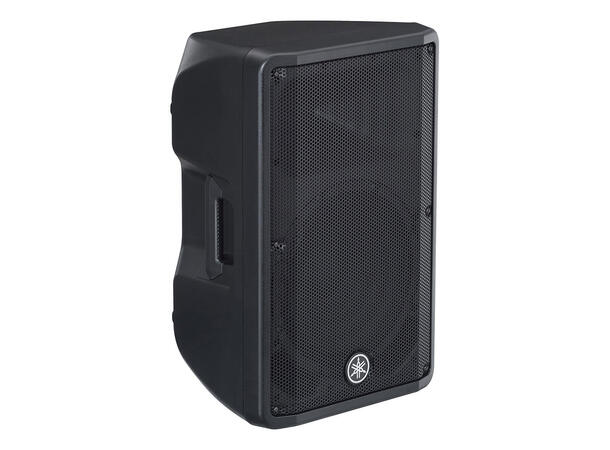

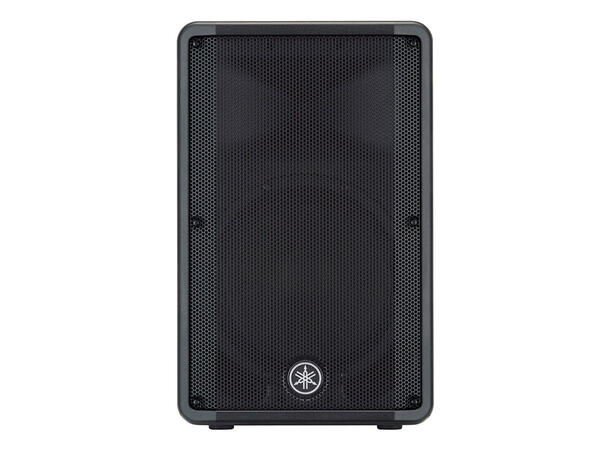

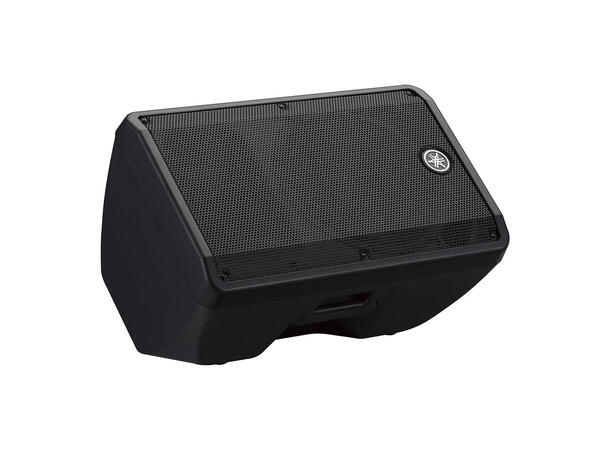

The CBR12 represents a perfect balance of size and performance. Ideal for front-of-house,
floor monitoring or even rigged applications, the CBR12 is an ideal choice for a wide range of
applications.
Specifications
General specifications
Speaker type 2-way Speaker, Bass-reflex Type
Frequency range (-10dB) 48 Hz - 20 kHz
Nominal coverage H 90°
V 60°
Components LF 12" Cone, 2" Voice Coil (Ferrite Magnet)
HF 1.4" Voice Coil, Compression Driver (Ferrite Magnet)
Power rating NOISE 175W
PGM 350W
PEAK 700W
Nominal impedance 8O
SPL Sensitivity (1W; 1m on axis) 96dB SPL
Peak (Calculated) 125 dB SPL

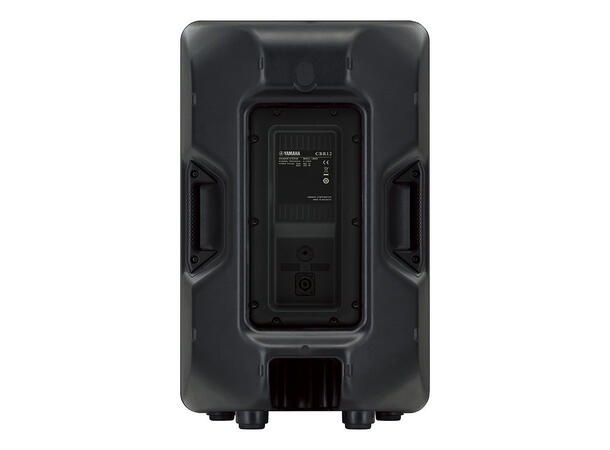

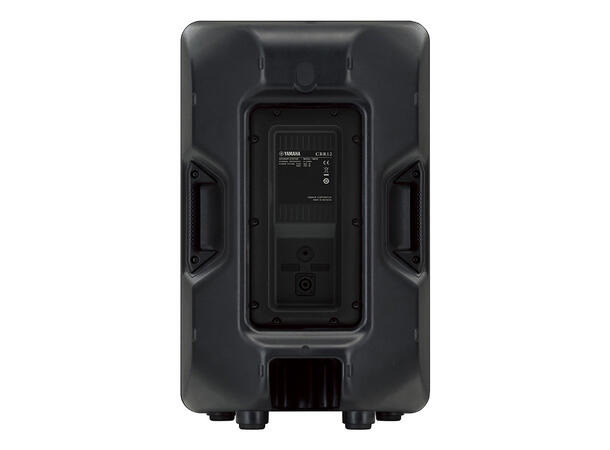

I/O connectors 1/4" Phone x 1, speakON NL4MP x 1
Dimensions W 376mm (14.8")
H 601mm (23.7")
D 348mm (13.7")
Net weight 13.9 kg (30.6 lbs)
Cabinet material Plastic
Finish Black
Handle Side x 2
Flying and mounting hardware Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts)
Pole socket F35 mm Bottom x 1
Accessories Optional Speaker Bracket: BBS251, BCS251, BWS251-300,
BWS251-400
Crossover 2.1 kHz
