Load your fixtures and easily roll the tower into position. Then lift the ladder with two people, secure it with the new built-in locking system and start lighting the stage.

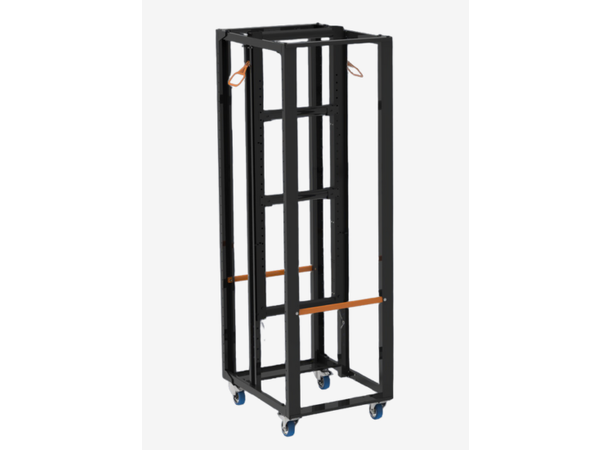

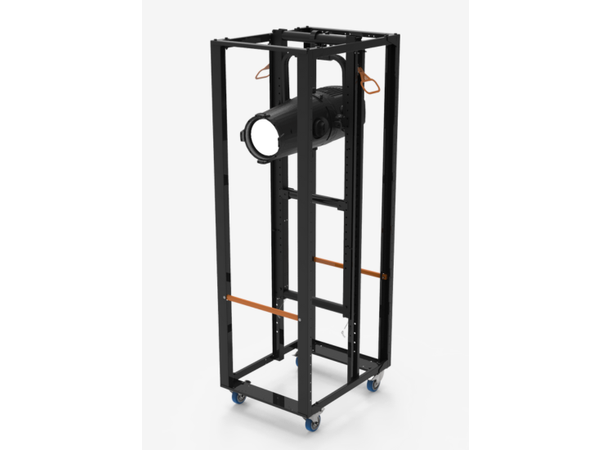

The Admiral Staging asymmetrical Sidelight tower is designed for professional use where fixtures with a longer front need extra space. Thanks to its construction, fixtures like profile spots can be positioned better, making accurate sidelight angles easy to achieve.
This makes the tower a practical choice for theatres, touring productions and live events where flexible side lighting is required.

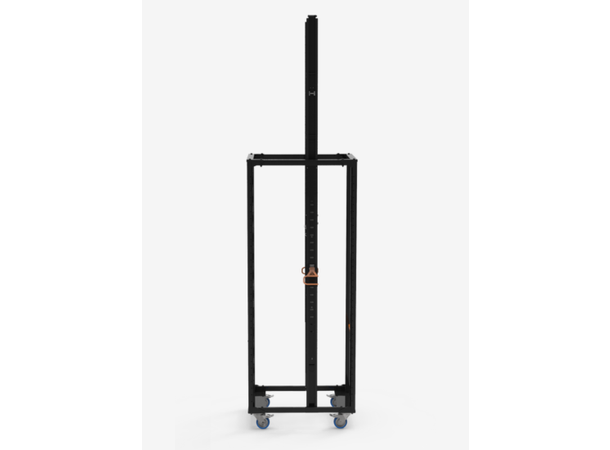

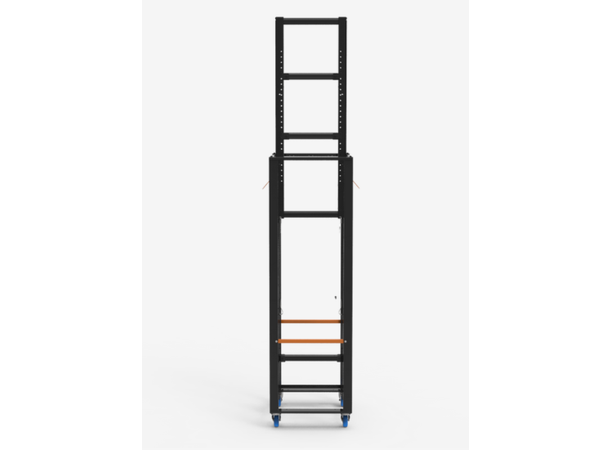

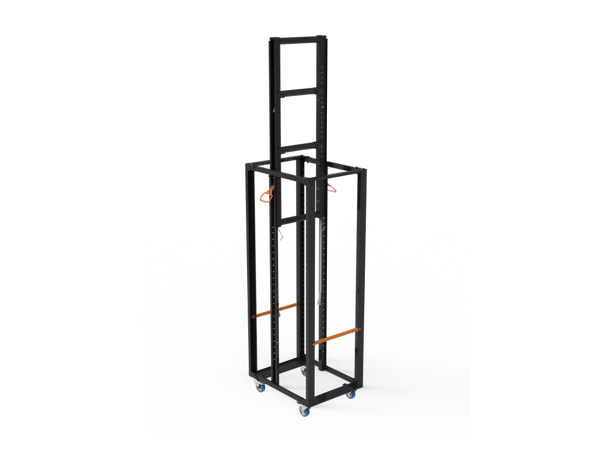

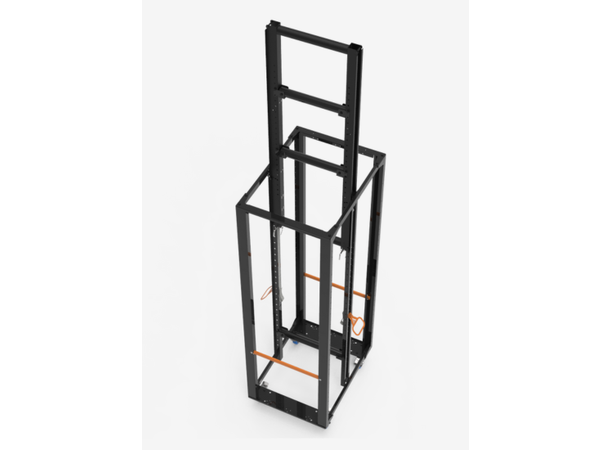

A key advantage of this model is the new mechanical locking system. The telescopic ladder is raised using dual pull handles and can be extended by up to 100 cm. Once the desired height is reached, the system locks mechanically, fixing the ladder securely inside the frame. This prevents movement after setup and keeps the lighting position consistent and safe.
The tower can handle up to 40 kg while lifting and up to 100 kg once fully locked.
For transport and positioning, the tower is fitted with four 100 mm swivel castors with brakes, allowing it to roll smoothly and remain firmly in place on stage. The powder coated black steel frame and durable hanging tubes are built for frequent use in rental and touring environments.
It complies with Machinery Directive 2006/42/EC and can be equipped with the optional Sidelight tower tube 60 (WAM2P21) to mount fixtures below the ladder, creating a shinlight option.
