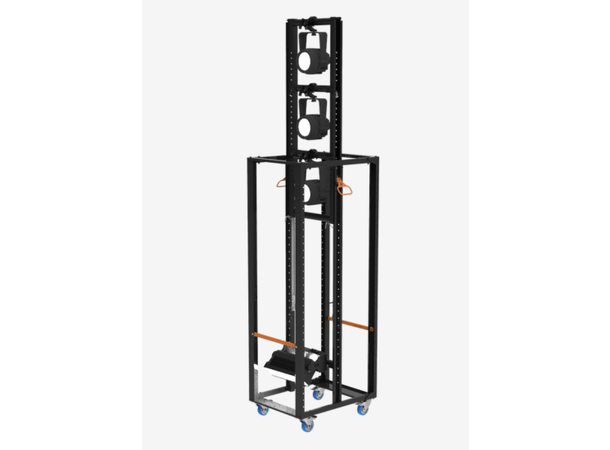

Load your fixtures and easily roll the tower into position. Then lift the ladder with two people, secure it with the new built-in locking system and start lighting the stage.

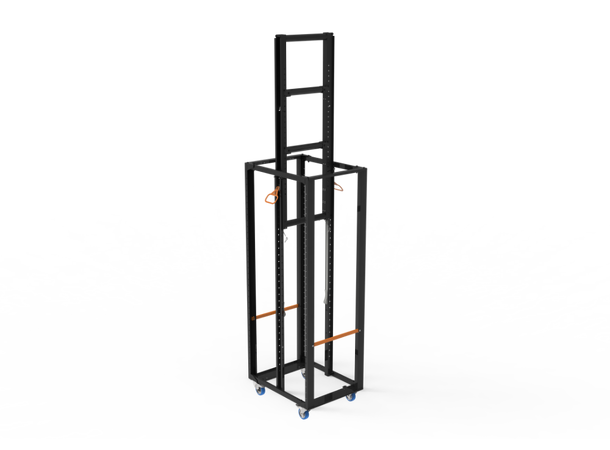

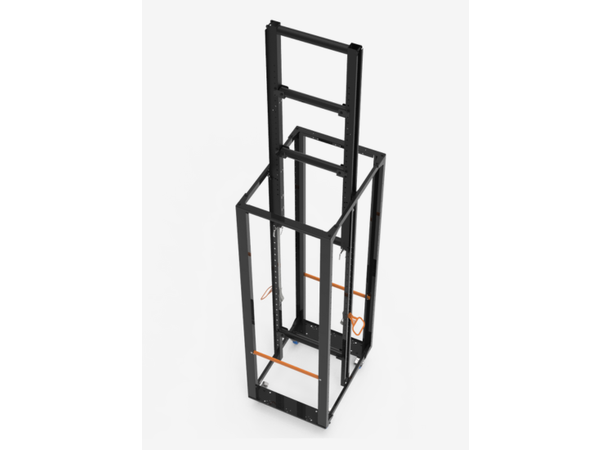

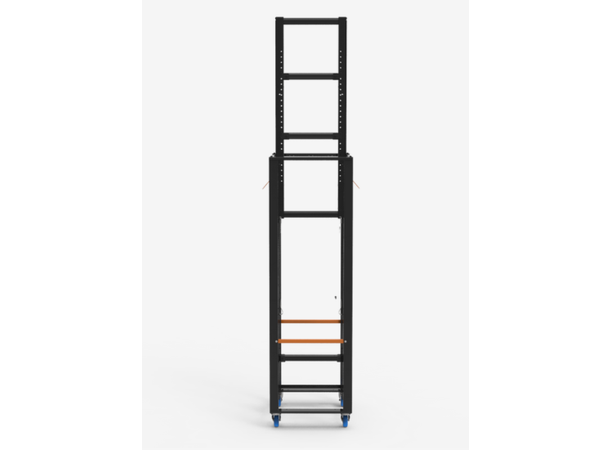

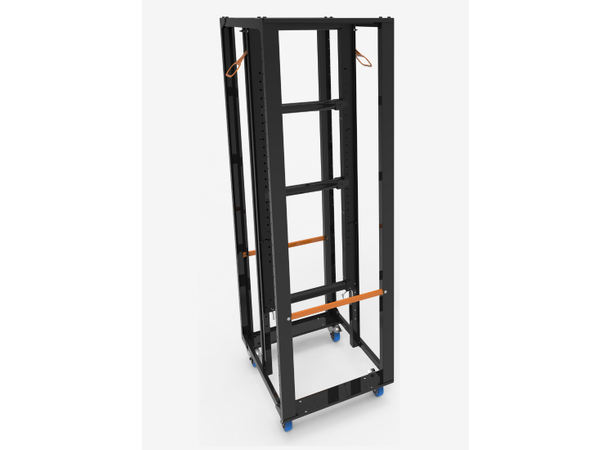

The symmetrical Sidelight tower from Admiral Staging is developed for sidelight setups where fixtures need to be positioned evenly on both sides. Its centred design supports clean, uniform lighting layouts, making it well suited for theatre stages, concert venues and events that need consistent positioning.
Most important is the new mechanical locking system, which plays a central role in its safety. The telescopic ladder is operated with dual pull handles and can be extended by a maximum of 100 cm. After lifting, the ladder is mechanically locked, securing the structure and keeping the setup fixed throughout rehearsals and shows. Load capacity is up to 40 kg during lifting and up to 100 kg once locked.
Movement and placement on stage are straightforward thanks to four 100 mm swivel castors with brakes. The powder coated steel construction and solid hanging tubes are designed for long-term use in professional rental and touring conditions.
The tower meets Machinery Directive 2006/42/EC standards and can be combined with the Sidelight tower tube 60 (WAM2P21) to create shinlights underneath the ladder for more layered lighting designs.
