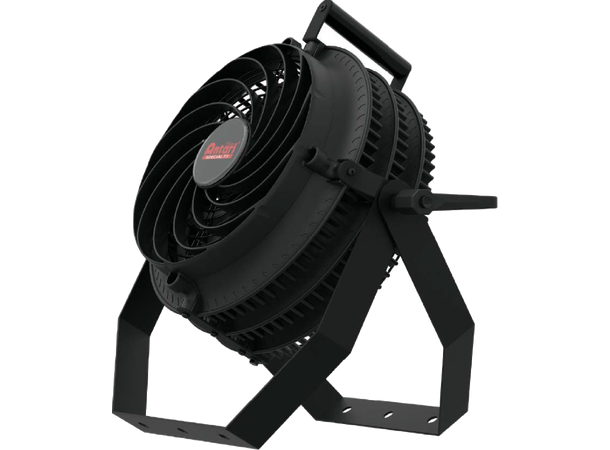

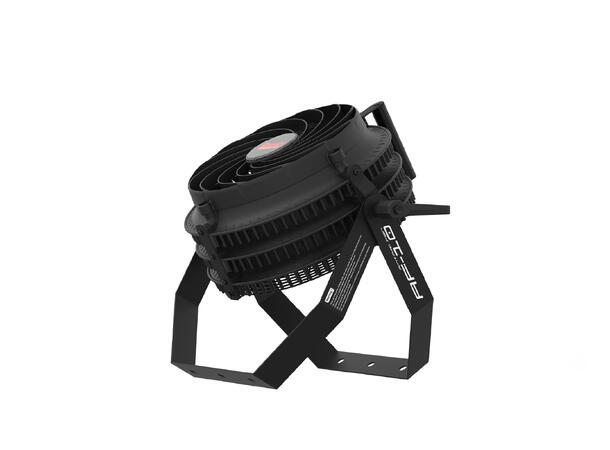

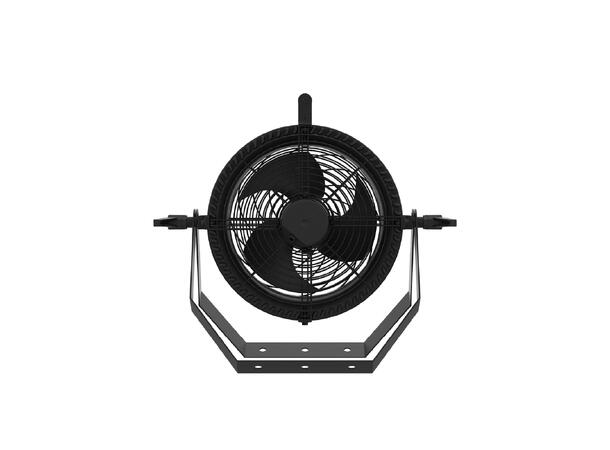

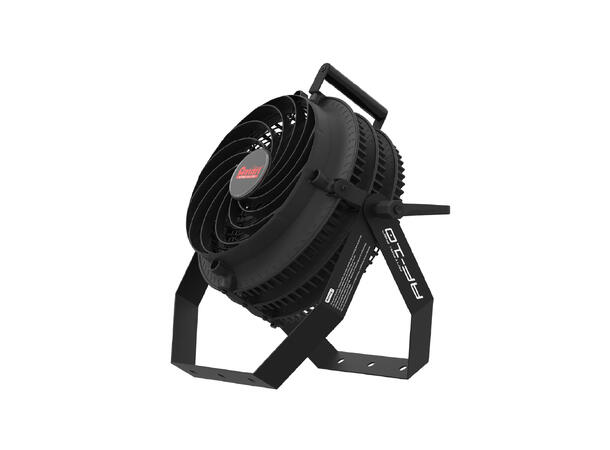

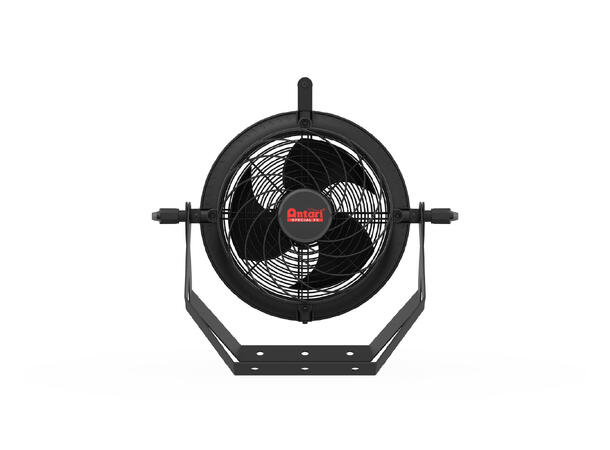

The Antari AF-10 is high-velocity fans engineered for professional use, combining power, precision, and durability. Featuring a unique swirl-shaped front cover, they maintain focused airflow while reducing turbulence and noise. The specially designed aerodynamic blades ensure optimal air distribution with minimal sound, making them ideal for stage, studio, and installation environments. Built with robust materials for reliable performance,can operate with a simple plug to start or integrate with an optional control box for remote operation. Whether for fog dispersion or wind effects, the AF-10 delivers efficient, quiet, and consistent airflow in demanding applications.
FEATURE
High-Velocity Airflow
Swirl-Shaped Front Cover
Low Noise Operation
Robust Constrcution
IP55 Rated Motor
SPECIFICATION
Input Voltage EU Model : AC 220 – 240V, 50 / 60 Hz 0.5A
Rated Power 240V 65W
Ambient Temp. Range 0°C – 40°C (32°F – 104°F)
Air Flow 1913 CFM (60Hz)
Fan Speed 1640±40RPM
Noise Level 51.0 dB (Max. Output)
Control Methods
-Manual
-Timer
-DMX512
-Wireless (Optional)
-Wireless DMX (Optional)
DMX Channels 1 Channel
Interface SEETRONIC IP65 Connector (Power)
SEETRONIC IP65 XLR 5-Pin Connector (DMX)
Included Accessories Dual Use Bracket

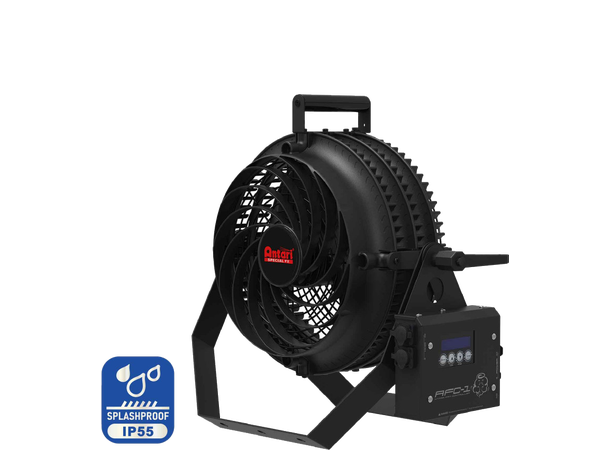

AFC-1 Fan Control
Optional Accessories WTR-110 Wireless Module
ES-W-DMX Wireless DMX
Dimension L326 W535 H487 mm
L12.84 W21.07 19.18 inch
Weight 8.2 kg
18.08 lbs
