Audibox ISO Balancer
The Balancer will convert an Unbalanced Low Impedance signal to a Balanced Low Impedance signal suitable for use with professional equipment and long cable runs. Transformer Ground isolation provides low-noise operation suitable for any application
Heavy duty all-steel chassis finished in attractive matt textured powdercoat, with hardwearing epoxy screen printing and slip resistant rubber pads. The De-Balancer is a totally passive device with no power requirements, making it a truly universal problem solver.
Security features include Kensington®-type computer lock slot and optional bracket kit for under-table mounting.
Input Impedance 10K Ohms Unbalanced
Output Impedance 10K Ohms Balanced
Input Level (max) +12dB
Frequency Response 20Hz - 20 KHz ± 0.5dB
Distortion 0.2% Maximum THD, 0dB 1KHz
Insertion Loss 0.75dB @ 1 KHz (600 Ohm load)

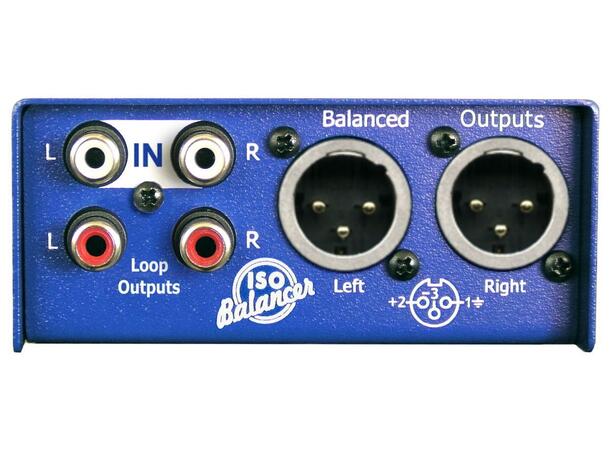

Input Connector stereo RCA connectors. RCA Ground connected to XLR Pin 1
Output Connector
3 pin male XLR, wired Pin 1 Ground, Pin 2 + Hot, Pin 3 - Cold.
Construction
All-steel powdercoated chassis, fibreglass PCB
