Has Wireless audio, USB and MiniJack inputs!
Plus 2 x Balanced XLR Mic / Line Inputs
Plus 2 x stereo Line In channels
Global 3 way EQ control
Switchable Phantom power
Switchable push-to-talk with a Priority override ducker for Mic channel 1
User-friendly layout in 1 RU package
Flawless performance in any audio environment
Applications
Clubs /Gyms /Karaoke /Restaurants
Industrial Paging/BGM Systems
AV Systems
Broadcast Submixers
Sound Reinforcement
...and much, much more
Innovation
SmartPhones, Tablets, Laptops and other Wireless audio and USB enabled devices have rapidly become the program source of convenience for Corporate A.V Presentations, Seminars, Musicians, D.Js, Entertainment Venues, System Demonstrations and Testing, and many other audio playback applications.
To cope with all these audio sources. ARX introduces the MIXXMaker - a new multi-channel Mic/Line Master Mixer. This unique device features Wireless audio, USB and MiniJack inputs, 2 Mic/Line inputs, 2 stereo line inputs, and Left/Right (or Zone 1 and 2) Master level controls, as well as an Auxiliary mono output with its own level control.
That's a lot of Inputs and a lot of control in a compact, user-friendly unit only 1 RU tall!
Great Features
The Wireless audio receiver, USB connector and the MiniJack inputs all have their own individual level controls.
Each Microphone channel on the MIXXMaker has a Balanced Low Noise Mic input, plus individual Gain and Level controls. The Mic input can also be switched to be a Line input as required. Switchable Phantom power is also available on both Mic Inputs.

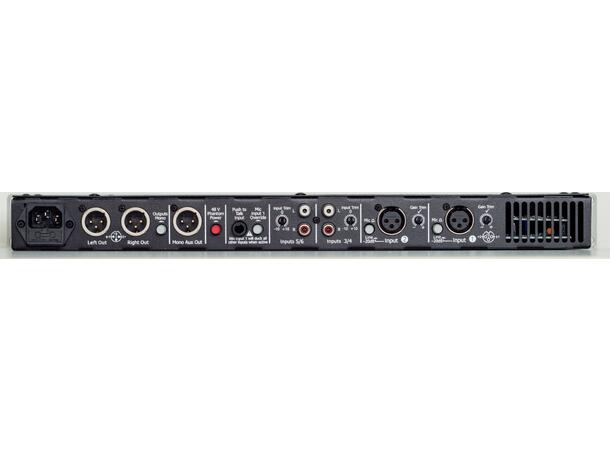

The Stereo Line Inputs 3/4 and 5/6 each have rear panel input trim controls, as well as front panel output level controls, and their inputs are industry standard RCA type connectors.
Additionally there are Left and Right Master controls, and a mono L+R Aux Output with its own level control. The Left and Right Master Output XLR connectors can also be switched to Mono if required, by a rear panel switch.
The rear panel also has a connector for a push-to-talk jack, and a Priority override ducker switch for Channel 1. Pressing this switch in will duck the level of the other channels by 20dB when Channel 1 is used.
LED Indicators

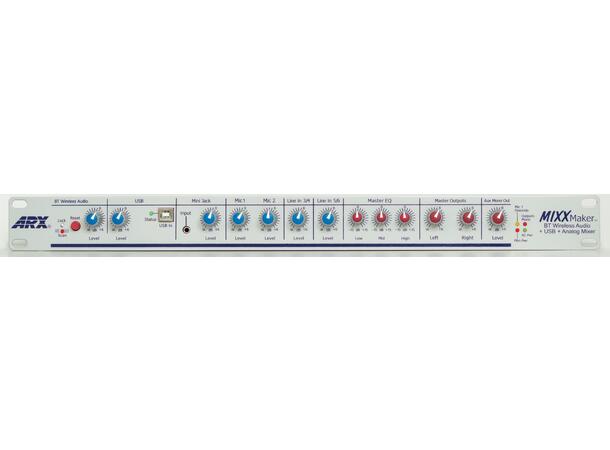

The front panel has LED indicators for Wireless audio (see Specifications below), USB active, Priority Override enabled, Phantom Power enabled, Outputs switched to Mono, and AC power.
AC Power
It is available as a 100 to 120V AC model or a 220 to 240V AC model, and AC power is connected to the unit via a standard three pin IEC connector, with built-in fuse and voltage change switch.
The ARX MIXXMaker is an intuitive, user-friendly Master mixer, capable of handling all commonly used current audio interfaces. In other words, a total solution to today’s install requirements.
MIXXMaker Specifications
Microphone Inputs: Electronically Balanced on XLR Connectors
Stereo Line Inputs: Line level inputs on RCA Connectors
Mic Priority Switchable Channel 1 override; 20dB attenuation to all other channels
Input Gain: Variable 0dB to 60dB on Mic/Line channels by rear panel trim control, plus Mic/Line input switch (–20dB)
Channel Level: Infinity to +6dB Gain
Mic and Line Channel EQ:
Low 100Hz 15dB Cut/Boost Shelving
Mid 800HZ 15dB Cut/Boost Bell, Broad Q
High 10KHz 15dB Cut/Boost Shelving
Frequency Response: 20-20KHz +or- 1dB
Distortion: Below .005% 100Hz to 10KHz
Phantom Power: +48VDC switchable on all Microphone Inputs
Wireless audio Receiver Specifications
Range:
Approx 2 - 4 metres
Depends on paired source device
LED Indicators:
Scan Red LED
Red LED Flashes
Lock Blue LED
Matching/Pairing: Blue LED Flashes
Matched/Paired: Blue LED On
Frequency
2.402 - 2.480 GHz
Sensitivity
-90dBM @0.1% BER
Master Outputs: Electronically Balanced XLR 300 ohms Line Level
Master Outputs Signal/Noise: -90dB unweighted.
Max Output Level: +20dB
USB Specifications
Input Connector USB type B port
Codec 24 bit High Resolution
USB Power Operating current via USB Port 80mA
MIXXMaker AC Power: Supplied as 100-120 VAC model or 220-240 VAC model 50/60HZ 8VA (8 watts) 3 pin IEC connector with removable cable
