Applications
- Sound Reinforcement
- Clubs /Gyms /Karaoke /Restaurants
AV Systems - Ideal for Audio from Tablets, Phones, Laptops and more
...and much, much more
Great Features
- Wireless audio, USB and MiniJack inputs!
- Plus 2 x Balanced Low Noise Microphone pre-amps
- Plus a stereo Line In channel
- Plus all Inputs can be switched to Stereo Zone 1 or 2, or Both
- Plus Outputs can be switched to Mono for distributed systems
USB Specifications
- Input Connector USB type B port
- Codec 24 bit High Resolution, 44.1 and 48K, program dependent
- USB Power Operating current via USB Port 80mA
LED Indicators

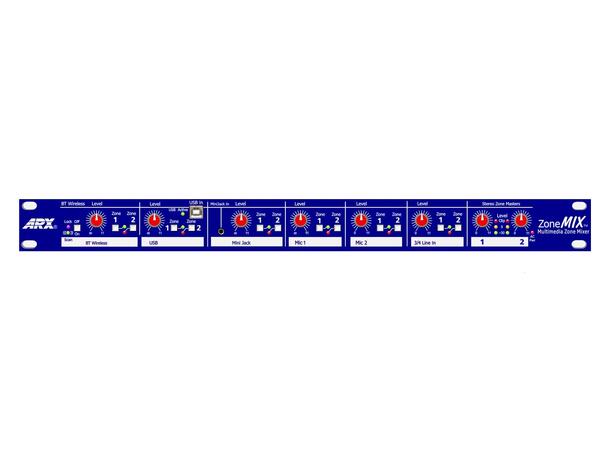

The front panel has LED indicators for Wireless audio (see Specifications below), USB active, Priority Override enabled, Phantom Power enabled, Outputs switched to Mono, and AC power.
AC Power
It is available as a 100 to 120V AC model or a 220 to 240V AC model, and AC power is connected to the unit via a standard three pin IEC connector, with built-in fuse and voltage change switch.
Technical spesifications
- Microphone Inputs: Electronically Balanced on XLR Connectors, switchable to Mono
- Stereo Line Inputs: Line level inputs on RCA Connectors
- Input Gain: Variable 0dB to 50dB on Mic/Line channels by rear panel trim control, plus Mic/Line input switch (–20dB)
- Channel Level: Infinity to +6dB Gain
- Frequency Response: 20-20KHz ± 1dB
- Distortion: Below .005% 100Hz to 10KHz
- Master Outputs: Electronically Balanced XLR, switchable to Mono
- Master Outputs Signal/Noise: -90dB unweighted.
- Max Output Level: +20dB
