USB-DI
In keeping with our policy of creating essential audio interfaces, ARX is excited to present the new ARX USB DI - a true Plug and Play 24 bit High Resolution digital to analog pro audio interface. It removes the need to use any existing sound card outputs, with their inherent noisy environment and problematic grounding.
It features full transformer balanced output isolation to eliminate earth loops / ground hum and other extraneous interaction noise and distortion.
Plug and Play
The USB DI installs as a fully compatible generic USB audio device, requiring no special driver program installation on Mac OSX, Win XP, Windows 7 and 8

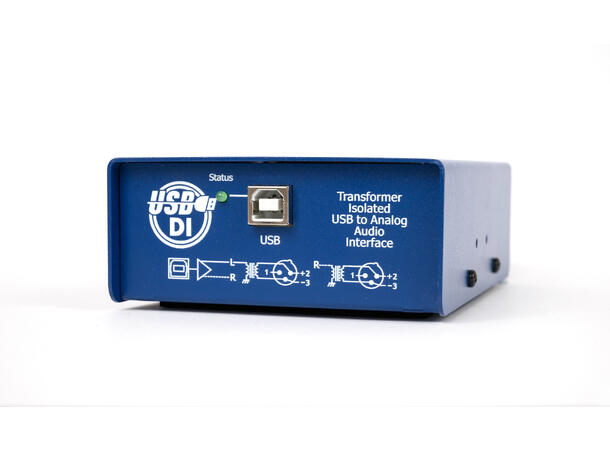

The front panel has a Type B USB input connector and two transformer balanced analog audio XLR Line out connectors for connecting to any standard balanced analog input.
A status LED on the front panel indicates that the USB DI is connected and operating.
The USB DI is housed in a heavy duty all-steel chassis finished in attractive matt textured polyurethane, with hardwearing epoxy screen printing and slip resistant rubber pad. It is ideal for interfacing any USB equipped computer (especially notebook computers) with the balanced inputs of professional sound systems.
The USB DI is available in Dual Channel format, includes a premium quality USB-A to USB-B cable, and is hand made in Australia
USB-DI Specifications
Input Connector USB type B port
Codec 24 bit High Resolution, 44.1, 48 and 96KHz
Output Impedance 300 Ohms Transformer Balanced
Output Level Maximum nominal output level 0dB
Output Noise
USB - System dependent
ISO transformer - Enviroment sensitive
Frequency Response 20 - 20 KHz ± 0.5 dB
Power Operating current via USB Port 80mA
Output Connectors

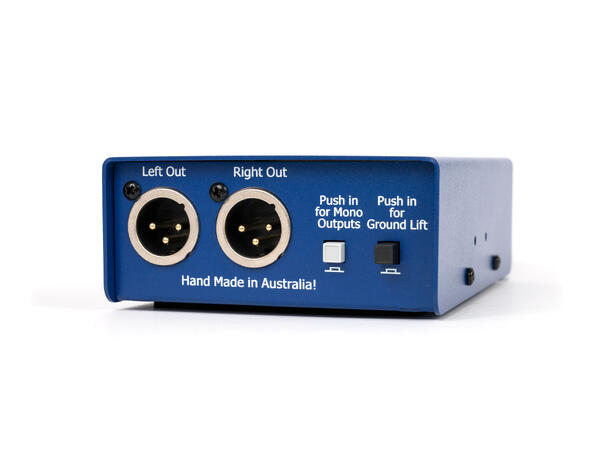

2 x Male XLR, wired Pin 2 + Hot, Pin 3 – Cold. Pin 1 Floating / not connected
Construction
All-steel powdercoated chassis, fibreglass PCB, epoxy printing,
slip-resistant rubber feet
System Requirements
Windows PC running Windows XP, Windows 7/8/10, Mac running OS X or later
USB port
