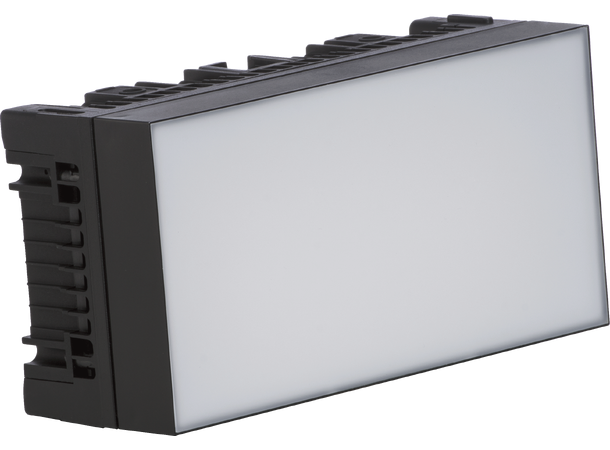

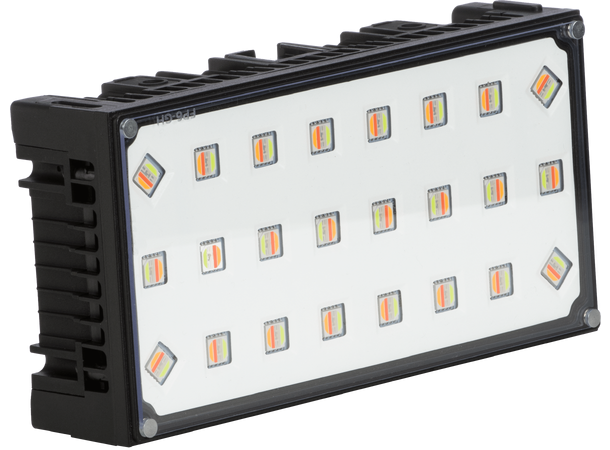

ASTERA Hydra panel Softlight, IP65

Mount Anywhere, Light Anything

Titan LED Engine, 25W, Wireless & Wired DMX

Beam shaping with six included light modifiers and a large range of mounting options make HydraPanel more flexible than any other product in its class. The full-spectrum Titan LED Engine generates an impressive 1300 Lumen output while running on battery power for 1:45h. All packed into a solid watertight housing of just 600g weight and 166mm length (1.3lb, 6.5).

Optical

• Order Code: FP6
• LED Engine: Titan LED Engine
• Colors: RGBMintAmber
• Total LED Power: 25W
• LED Power Draw: 17W
• Luminous Flux 3200K: 1102 Lumens
• Luminous Flux 4000K: 1287 Lumens
• Luminous Flux 5500K: 1298 Lumens
• Light Output 3200 K @ 1m: 443 Lux
• Light Output 4000 K @ 1m: 512 Lux
• Light Output 5500 K @ 1m: 516 Lux
• CRI (Ra)/ TLCI 3200- 6500 K*: =96
• Beam Angle: 110° x 100°
• Field Angle: 150° x 145°
• Strobe: 0 – 25 Hz
• Pixels: 6
• (*Typical value)

Electrical

• Battery Runtime: up to 20 hours
• Battery Runtime Max Brightness: 1h 45m
• Battery Lifetime: 70 % after 300 cycles
• Charging Time (nominal): 3 hours
• DC Input: 24VDC – 0.85 A
• DC Connector: 5,5mm x 2,1mm

Control

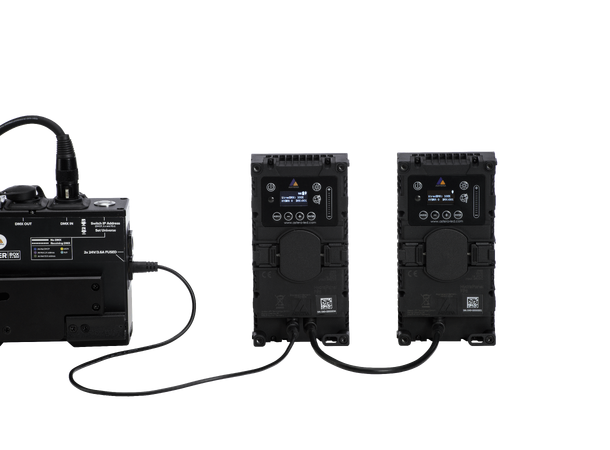

• Wired DMX: Yes Via FP1-PWB/FP3-DTL/PWB2-86
• CRMX Receiver: Built-in
• BluetoothBridge BTB: Built-in
• Wireless Protocols: CRMX, UHF, Bluetooth, WiFi
• Wireless Range (CRMX/UHF): Up to 300 m / 330 yds
• Bluetooth: Up to 3 m / 3.3 yds”
• Infrared Control: Yes
• ControlSync: Yes
• TouchSlider: Yes

Construction

• Housing Material: Polymer & Metal
• IP Rating: IP65
• Ambient Operating Temperature: 0° – 40 °C / 32 – 104 °F
• Weight: 604g / 1.3 lb
• Dimensions L x W x D: 166mm x 85mm x 43.5mm / 6.53? x 3.34? x 1.71?
