BRITEQ BT-THEATRE HD2 Fresnel

A powerful “ALL-IN-1” LED theater spot with motorized 14° ~ 55° zoom.

No more need for separate white and color projectors, BT-THEATRE HD2 does it all:

• Perfect WHITE with high CRI > 90Ra and CCT presets
• Rich COLOR selection with color presets!
• Thanks to the new CCS Color Calibration System the color differences between different batches is a problem of the past!
• Different CCT presets for white: …, 2700K, …, 3000K, 3200K, …, 4000K, …, 5600K, …
• Different color presets (LEE® / ROSCO® numbering)
• Based on a 200watt 5-color RGBAL-LED (Red, Green, Blue, Amber, Lime)

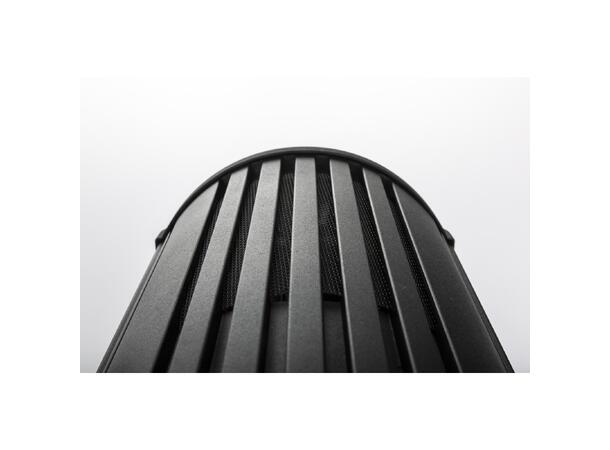

• Very silent operation: heat-pipe technology with low noise cooling fan and different presets (live, studio, …)
• DMX-controlled: 4 different channel modes for maximum flexibility
• RDM-functionality for easy remote setup: DMX addressing, channel mode, …
• Flicker free TV-recordings thanks to the adjustable high LED-refresh rate!
• Four dimmer settings with different behavior & speed.
• Manual control for dimming, colors, CCT & zoom.
• OLED-display to navigate easily through the setup menu!
• In case of DMX failure, you can choose between blackout and freeze mode.
• Lock function to avoid unwanted altering of the settings.
• Rugged extruded aluminum housing.

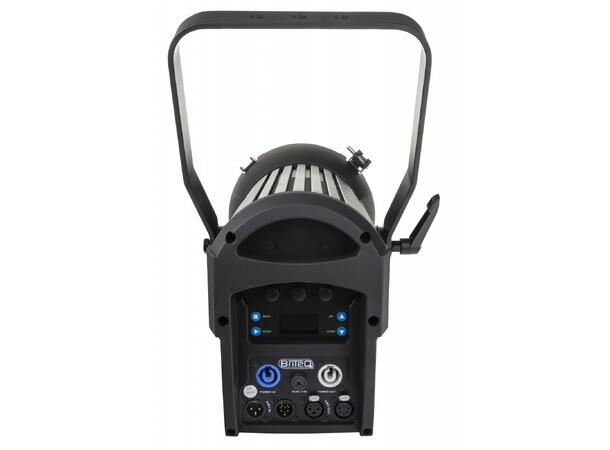

• 3 & 5pin DMX in/outputs + PowerCON in/outputs for easy daisy chaining.

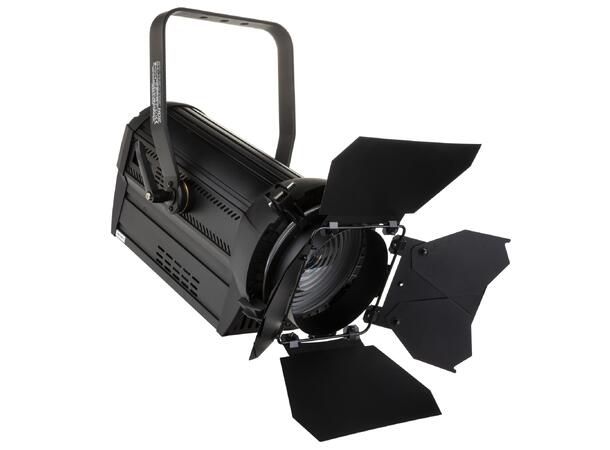

• An 8-leaf barndoor (BT-THEATRE BARN2) is optionally available.


Spesifikasjoner

• General : Application Stage & Rental, Theatre
• General : Series No

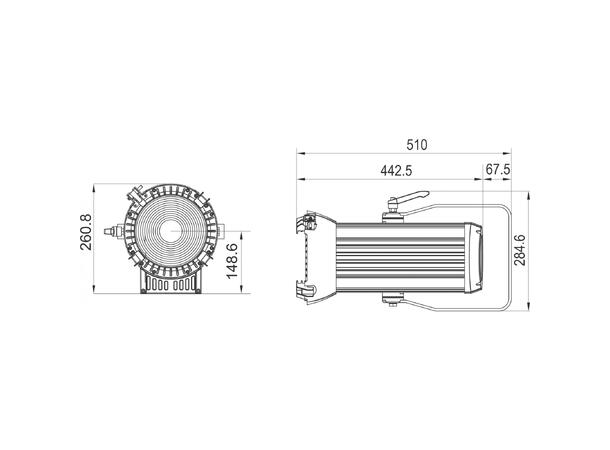

• General : Dimensions (cm) 45 x 29 x 26
• General : Weight (kg) 7.56
• General : Powerinput AC 100 - 240V, 50/60Hz
• General : Energy Label No
• General : Power consumption W 240
• General : Color black
• General : Display OLED
• General : Fixation optional standard clamp
• General : IP rating indoor
• Control : manual Yes
• Control : Master/Slave No
• Control : SMART-DMX No
• Control : Standalone fixed
• Control : programmable No
• Control : upgradable software Yes
• Control : maximum DMX channels 19
• Light : lamp socket none Light : Lux 1428 (5m)
• Light : lamp LED
• Light : min. color temperature (K) 1800
• Light : max. color temperature (K) 8000
• Light : CRI 90
• Light : colors Red, Green, Blue, Amber, Lime, RGB, RGBAL
• Light : mix colors No
• Light : functions motorized zoom
• Light : min. beam angle (°) 14
• Light : max. beam angle (°) 55
• Light : min. refresh rate (kHz) 0.6
• Light : max. refresh rate (kHz) 25 Connections : input 3 pin XLR, 5 pin XLR, PowerCon®, rdm Connections : output 3 pin XLR, 5 pin XLR, PowerCon® Brand BRITEQ
