BRITEQ DS125-RDM DMX Splitter

RDM compatible DMX splitter: splits mains power and DMX input into 2 optically separate outputs. Compact and robust, equipped with PowerCON TRUE1 / XLR 5pin..

• The perfect solution for many DMX-line problems: this compact DMX-splitter divides any DMX-chain in 2 separate lines that will not interfere with each other. Problems on 1 line will not influence the other line!
• Maximum security, thanks to complete galvanic isolation between all DMX in/outputs
• 100% RDM compatible for bidirectional DMX-communication
• The booster function makes your DMX-installation more reliable and flexible to set up
• Specially designed for professionals:
   -Small size: can be hidden anywhere
   -Very robust construction: perfect for the rental applications

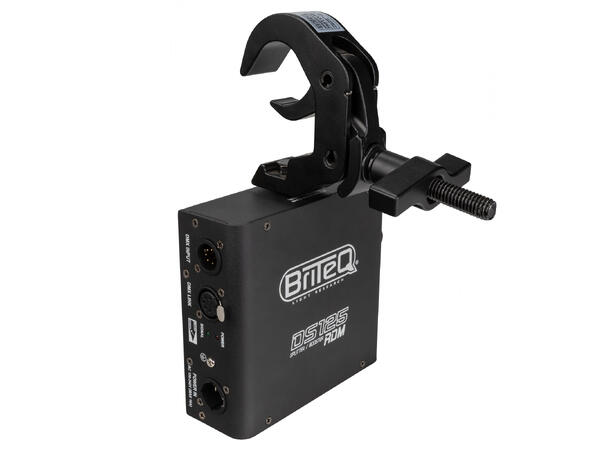

   -Can be fitted with any standard truss clamp with M10 thread: easy truss installation
• Adapted for use with HILEC® COMBI-cables (combined power + DMX)!
• Connections:

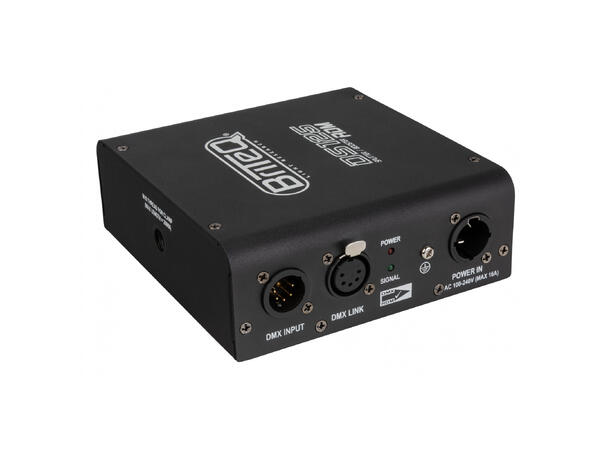

   -1 input: DMX 5pin (+ DMX pass-through) & 16A PowerCON TRUE1-compliant Seetronic® connector
   -2 outputs, each with: DMX 5pin + 16A PowerCON TRUE1-compliant Seetronic® connector
• There is also a model (DS123-RDM) equipped with 16A PowerCON-compliant and XLR 3pin connectors
• Power + signal present indicators
• Internal power supply 100-240Vac
