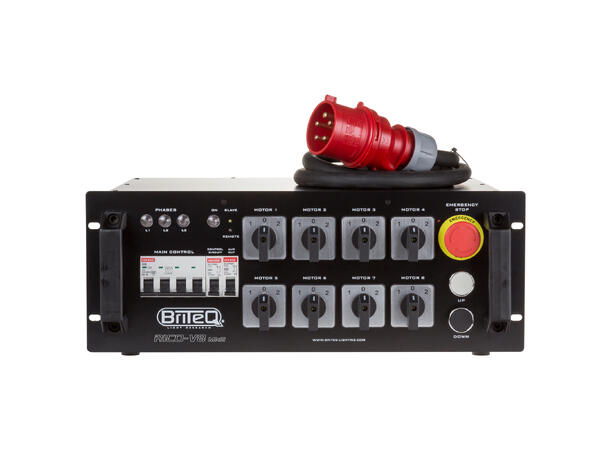

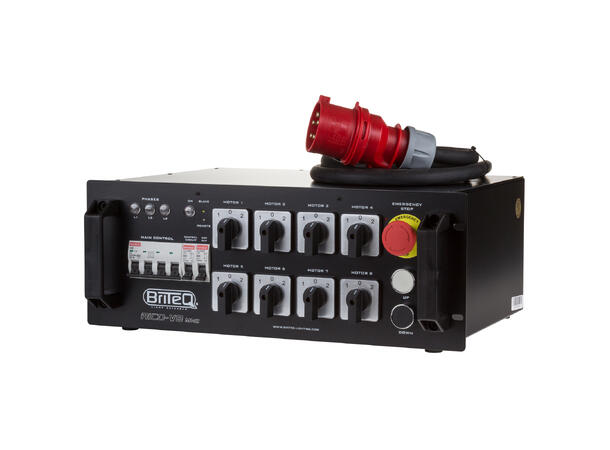

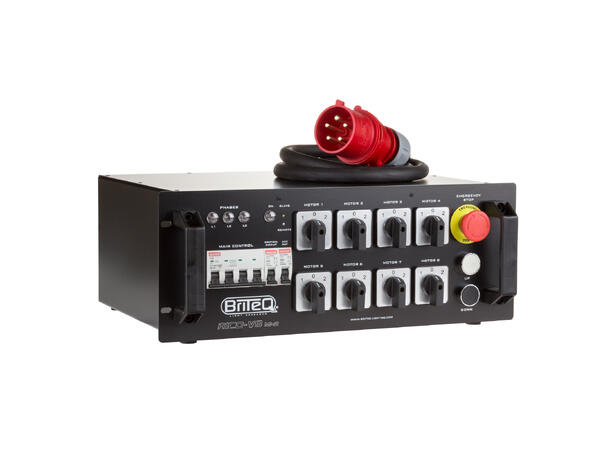

BRITEQ RICO-V8 MKII Motorkontroller8-kanals motorkontroller m/ master/slave

25 298,-

8 channel direct control chain hoist motor controller with separate UP/DOWN-controls and master/slave linking

Standalone manual chain hoist motor controller for up to 8 separate motors.
Double safety by using an additional relay backup system that activates in critical situations.
Fully compatible with the previous RICO-V4 / RICO-V8 models!
Several units can be linked in master/slave using the link in/out on the back panel:
Easy control for a larger number of chain hoists
Simultaneous hoist control using the UP/DOWN buttons on the master controller
Centralized Emergency stop on the master controller
“Slave” indicator led
Manual phase inversion switch for each output.

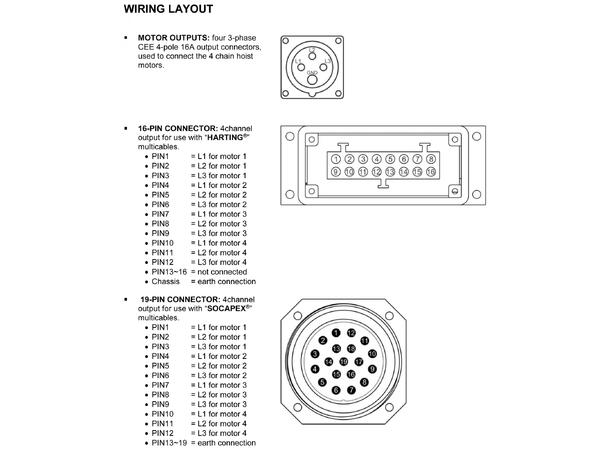

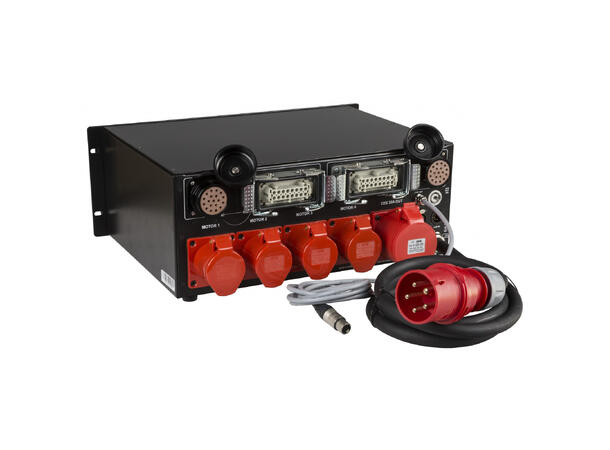

Choice of different outputs for maximum flexibility (rental companies!):
4x individual CEE16 4pole 16A outputs

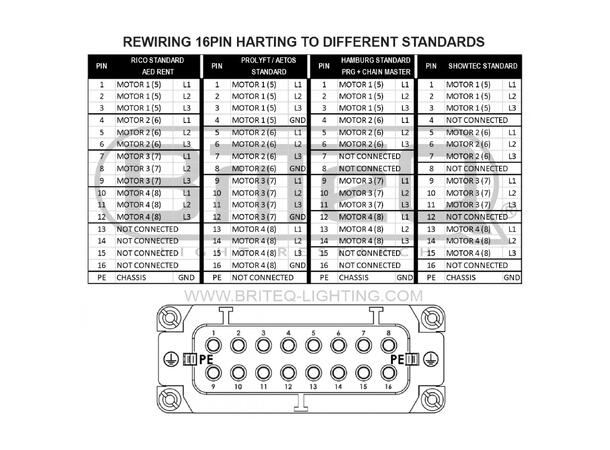

2x 16PIN multichannel industrial rectangular connector, Harting® compatible
2x 19PIN multichannel industrial round connector, Socapex® compatible
1x earthed 16A PowerCON mains outlet: auxiliary output for all kinds of use

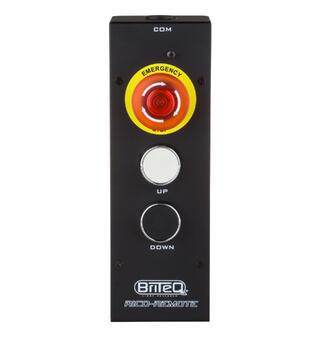

Remote control input (XLR) with led indicator to connect the optional RICO-REMOTE.
Phase indicators to easily check if the 3phases are available.
32A 4pole circuit breaker protects ALL outputs, including the 32A output to the next unit. In case of emergency all 3
phases AND the neutral are disconnected.
C16 (16A - 1P+N) 2-POLE automatic circuit breaker for control circuit.
Auxiliary output protected by a 16A RCBO with 30mA leakage current protection.
Mains input cable (3x 32A, 5wire), equipped with CEE (3P+N+E) 32A inlet plug.
CEE (3P+N+E) outlet socket (3x 32A, 5wire) for bypass.
Extremely robust 19"/4U metal housing.
Designed and build in Europe to the highest international safety standards!
Fully complies to EU directives: 2014/35/EU (LVD) and 2014/30/EU (EMC):
EN 60204-32:2008 (safety of machinery - Part 32: requirements for hoisting machines)
EN 60204-1:2018 (safety of machinery - Part 1: General requirements)
EN IEC 61000-6-2:2019 (EMC - Immunity standard for industrial environments)
EN IEC 61000-6-4:2019 (EMC - Emission standard for industrial environments)

BRITEQ RICO-V8 MKII Motorkontroller 8-kanals motorkontroller m/ master/slave

Tilbehør

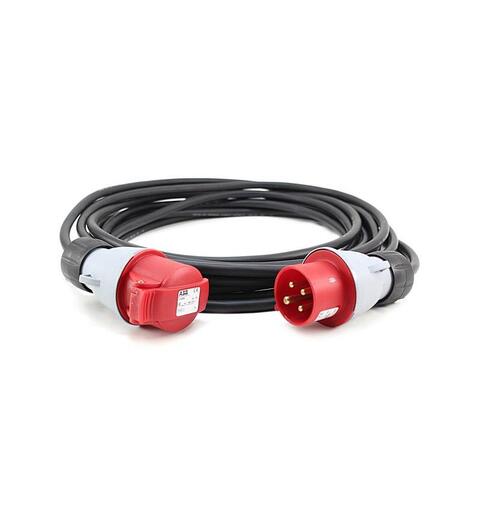

ELLER 16A motorkabel direktestyring 30m CEE-4p rød

ELLER 16A motorkabel direktestyring 30m

ELLER 16A motorkabel direktestyring 25m CEE-4p rød

ELLER 16A motorkabel direktestyring 25m

ELLER 16A motorkabel direktestyring 15m CEE-4p rød

ELLER 16A motorkabel direktestyring 15m

ELLER 16A motorkabel direktestyring 20m CEE-4p rød

ELLER 16A motorkabel direktestyring 20m

Alternativer

SRS MCBC-DV Motorkontroller, 8 kanaler Veggmontert. For direktedrevne motorer

SRS MCBC-DV Motorkontroller, 8 kanaler

Artikler

Antall artikler funnet:

BRITEQ RICO-V8 MKII Motorkontroller 8-kanals motorkontroller m/ master/slave

BRITEQ RICO-V8 MKII Motorkontroller 8-kanals motorkontroller m/ master/slave

BRITEQ RICO-V8 MKII Motorkontroller 8-kanals motorkontroller m/ master/slave

BRITEQ RICO-V8 MKII Motorkontroller 8-kanals motorkontroller m/ master/slave

BRITEQ RICO-V8 MKII Motorkontroller 8-kanals motorkontroller m/ master/slave

BRITEQ RICO-V8 MKII Motorkontroller 8-kanals motorkontroller m/ master/slave

BRITEQ RICO-V8 MKII Motorkontroller

8-kanals motorkontroller m/ master/slave

Varenr: 183813

Alt. varenr: B07005

25 298,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om å bli kunde her.

3 på lager i Oslo

Beskrivelse

8 channel direct control chain hoist motor controller with separate UP/DOWN-controls and master/slave linking

Standalone manual chain hoist motor controller for up to 8 separate motors.
Double safety by using an additional relay backup system that activates in critical situations.
Fully compatible with the previous RICO-V4 / RICO-V8 models!
Several units can be linked in master/slave using the link in/out on the back panel:
Easy control for a larger number of chain hoists
Simultaneous hoist control using the UP/DOWN buttons on the master controller
Centralized Emergency stop on the master controller
“Slave” indicator led
Manual phase inversion switch for each output.
Choice of different outputs for maximum flexibility (rental companies!):
4x individual CEE16 4pole 16A outputs
2x 16PIN multichannel industrial rectangular connector, Harting® compatible
2x 19PIN multichannel industrial round connector, Socapex® compatible
1x earthed 16A PowerCON mains outlet: auxiliary output for all kinds of use
Remote control input (XLR) with led indicator to connect the optional RICO-REMOTE.
Phase indicators to easily check if the 3phases are available.
32A 4pole circuit breaker protects ALL outputs, including the 32A output to the next unit. In case of emergency all 3
phases AND the neutral are disconnected.
C16 (16A - 1P+N) 2-POLE automatic circuit breaker for control circuit.
Auxiliary output protected by a 16A RCBO with 30mA leakage current protection.
Mains input cable (3x 32A, 5wire), equipped with CEE (3P+N+E) 32A inlet plug.
CEE (3P+N+E) outlet socket (3x 32A, 5wire) for bypass.
Extremely robust 19"/4U metal housing.
Designed and build in Europe to the highest international safety standards!
Fully complies to EU directives: 2014/35/EU (LVD) and 2014/30/EU (EMC):
EN 60204-32:2008 (safety of machinery - Part 32: requirements for hoisting machines)
EN 60204-1:2018 (safety of machinery - Part 1: General requirements)
EN IEC 61000-6-2:2019 (EMC - Immunity standard for industrial environments)
EN IEC 61000-6-4:2019 (EMC - Emission standard for industrial environments)
