BroadWeigh BB Loadcell Shackle

- Transmit direct to App – requires no base station or hand held display or software
- Download App and start configuring
- Bluetooth Smart Low Energy 4.0 gives longer battery life
- Ideal for close range monitoring

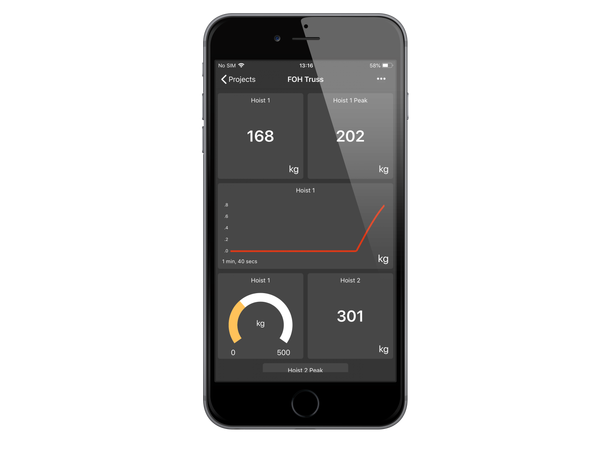

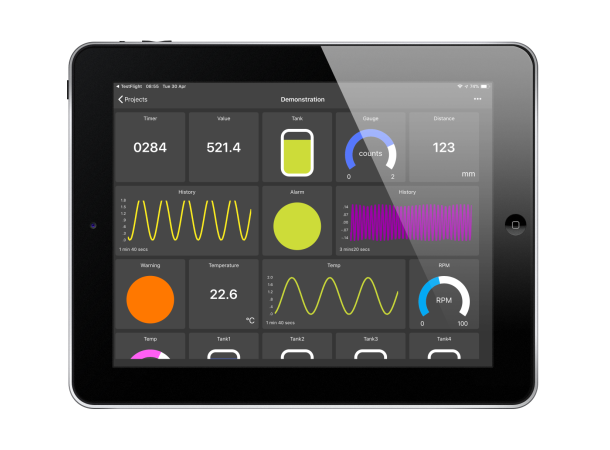

- Create multiple project dashboards with single load views, group summations, visual indicators
- Secure PIN’s for configuration, viewing and data export
- Shackle now comes in black only

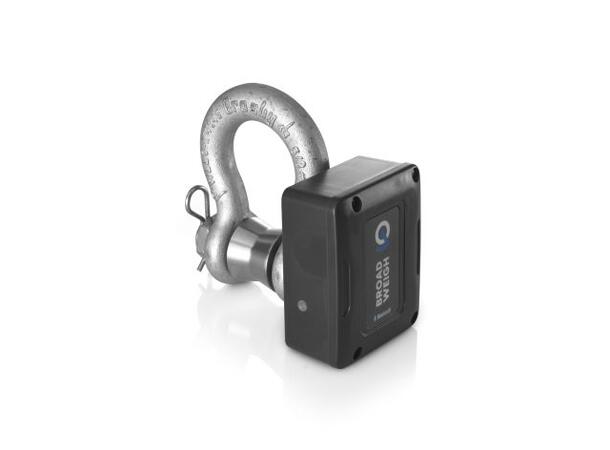

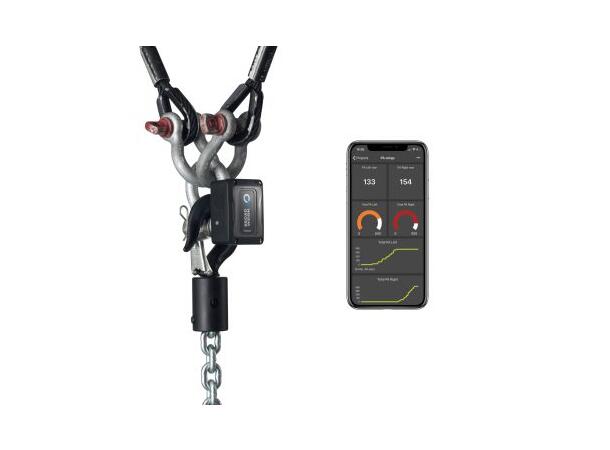

A 3.25t shackle with integrated Bluetooth Low Energy 4.0 that provides high precision, static weighing direct to our Broadweigh App, for easy viewing on your iOS or Android device.

The Broadweigh app is available to download on the Apple App Store or Google Play and contains all the tools required to configure and display data from the shackles in range and requires no other accessories.

Using the bow from a standard BS EN 13889 shackle, Broadweigh Bluetooth can transmit up to 90 m (295 ft) with calibrated units included in the transmitted values.

A lower cost option ideal for simple, static loads and smaller systems.

Flexibility to upgrade to standard Broadweigh shackle.

Broadweigh is designed and manufactured by Mantracourt Electronics, a world leader in sensors, sensor systems and signal conditioning solutions for OEM sensor manufacturers and integrators. Our products are used in many industrial sectors including; Test & Measurement, Process Control, Lifting & Handling, Oil and Gas, Aerospace, Automotive, Construction and many more.
