CARDINAL DVM DVM-194-AMIX Automatmikser

Web grensesnitt

Varenr: 140442
Alt. varenr: DVM-194-AMIX
8 132,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseTilbehørLenker & dokumenter
Beskrivelse

On guard while everybody’s asleep...

Pro-level automatisation now becomes a reality with the DVM-194-AMIX. For with our fully automated mixer virtually all operation parameters like e.g. input gain and level can be controlled specifically. How about keeping the volume of the microphone channels on a desired level fully automatically?

Thanks to the automated control this is not a problem for our new mixer! This opens up totally new application scenarios, e.g. as a discussion system for telephone and video conferences. In addition, the four microphone inputs also have an adjustable high-pass filter and an EQ section.

Two mix buses, a docking bus and an AUX bus are also on board. The docking bus allows a multi-room coupling of several systems, e.g. to send announcements or background music from a central point. Just like the amplifier, the mixer is operated via a display with an intuitive menu and can also be managed via web browser on the PC.

The processor allows to access the following functions:
• Gain on each channel
• Level on each channel
• 48 V on each microphone channel
• Auto level control on each microphone channel
• Mute function on each channel
• Bus routing on each channel
• Docking functionality
• Grand level Master A and Master B



Specifications:

Article numberDVM-194-AMIX
EAN4049371195621
BrandCARDINAL DVM
Type¼ -19“-Fully automated mixer
Weight kg1,2
ModelConference

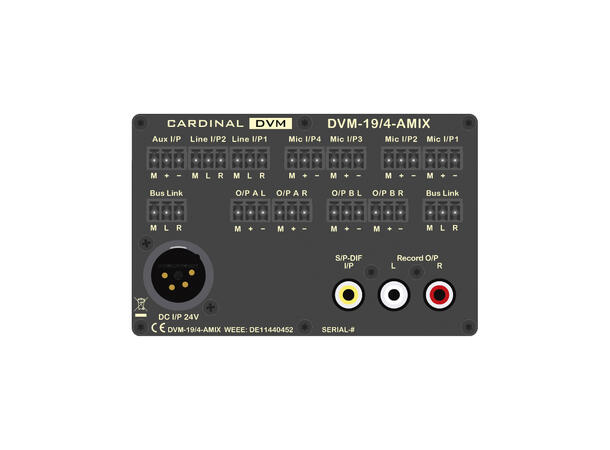

Input1 x digital stereo IN, SPDIF via RCA
Input2 x RJ45
Input2 x analogue stereo IN via 2-pole 3.5 mm euroblock
Input1 x Dock IN and OUT (stereo) via 3-pole 3.5 mm euroblock
Input4 x microphone IN balanced via 3-pole 3.5 mm euroblock
Input1 x AUX IN balanced via 3-pole 3.5 mm euroblock
Output1 x auxilliary record OUT (Bus level MIX A pre-master) via stereo RCA4-pole XLR male – ext. PSU
Output2 x stereo OUT balanced via 3-pole 3.5 mm euroblock (Master A, Master B)
Length mm0
Width mm106,5
Height mm84
Depth mm148
Height unit HE2
