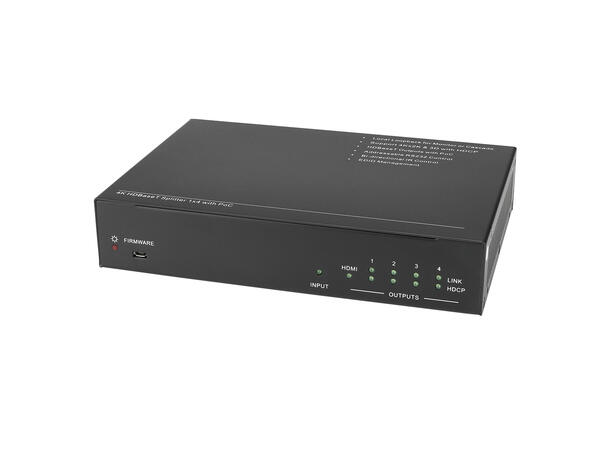

CARDINAL DVM DVM-HDBT-SPLITX4

… is desirable in many installation situations for we often need to address very different displays or beamers with one UHD-HDMI video signal. So far this has only worked with an enormous cabling effort, and with the known limitations of the HDMI signal. The CARDINAL DVM-HDBT-SPLITX4 now solves this task with bravura! HDMI signals in UHD resolution can be fed in and transported via four HDBaseT® outputs to receivers up to 70 m away. The integration of PoC (Power over Cable) significantly reduces the cabling hassle on the receiver side because no additional power supply is required there. The IR and RS232 communication for remote-controlling the terminals has also been integrated.

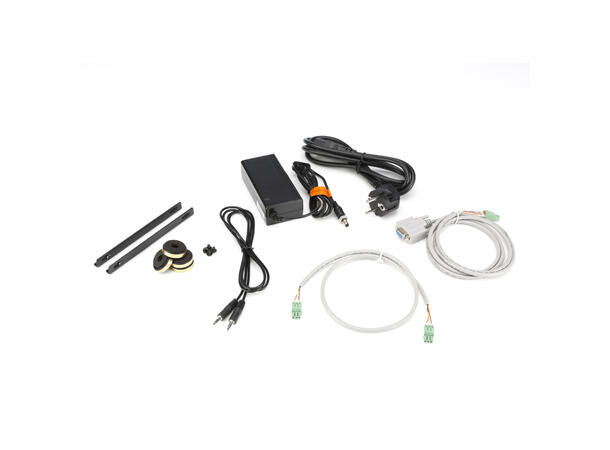

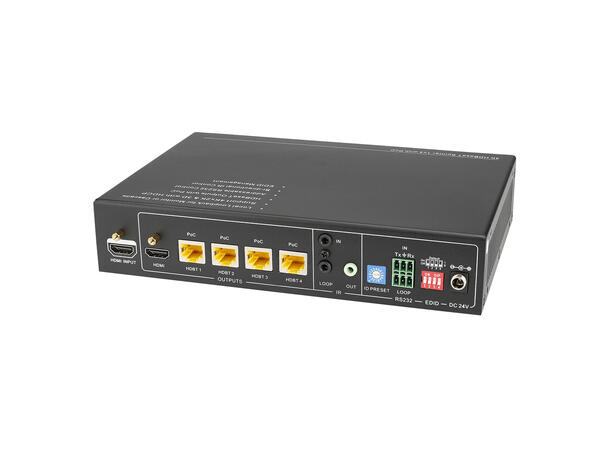

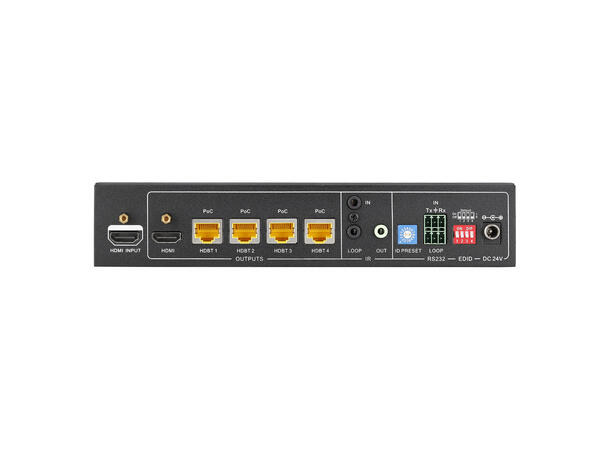

Features DVM-HDBT-SPLITX4: -4 HDBaseT outputs – to match DVM receiver DVM-HDBT-RXLPOC -HDMI output for slaving the signal through to other devices -Resolutions up to 4Kx2k @60fps -PoC - All receivers are powered by the splitter -Integrated bi-directional RS232 and IR communication -Additional loop connections for RS232 and IR for cascading several DVM-HDBT-SPLITX4- max. range 70 m (230 ft.) -EDID managment with DIP switches -HDCP support -Support for all HDMI audio standards -3D support -Comprehensive status display via LEDs -Rack ears included-1/2 19' housing (220x148x44 mm/8.66x5.83x1.73 in.) -Supplied wide-range power supply for global operation (24V/48W)
