The HDMI ® 2.0 Engineers Toolkit from CARDINAL DVM is easy to use and thus the ideal measuring tool for every installation, the rental and customer service department and your product development. Owing to its comprehensive features, compact dimensions and practical functions controlling HDMI ® sources and sinks as well as cable runs becomes a cakewalk! A lot of problems which may be caused e.g. by a faulty set-up, wiring, EDID communication or HDCP can be analyzed and solved easily.
The DVM-HDT-KIT consisting of HDMI ® signal generator + HDMI ® analyzer can handle all common HDMI ® video resolutions and bandwidths.
DVM-HDT-KIT features:
• high-performance FPGA platform
• supports HDMI ® 2.0 up to 4K x 2K (24/25/30/50/60 Hz plus 3D)
• supports all common colour rooms (RGB4:4:4, YUV4:4:4, YUV4:2:2 and YUV4:2:0)
• supports HDCP 2.2 (HDCP switchable: off/1.4/2.2)
• integrated 3“ IPS displays 16:9 (240p) in generator and analyzer
• “What You See Is What You Get“ – you can watch in realtime on the display what’s happening at the input/output
• intuitive control by local rotary encoder & keys on the unit, via RS232, USB or ethernet
• front panel headphone socket for signal control
• available as mobile version for the toolcase or rackmount set with 2 x ¼ 19“ 2RU (for SYSBOXX or 2RU 19“ module carrier)

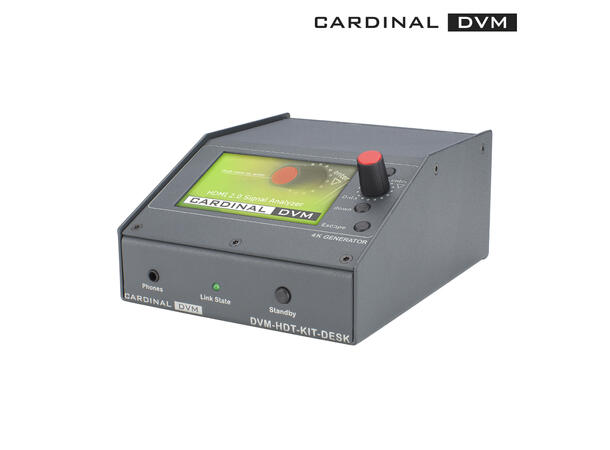

• DESK version with built-in battery packs
• low power consumption
• PC software included for checking individual devices and also large device compounds
• integrated cable check function
• optional reporting function for generating test protocols (incl. printout/download)
• super compact housings (¼ 19“ - 2 HE)

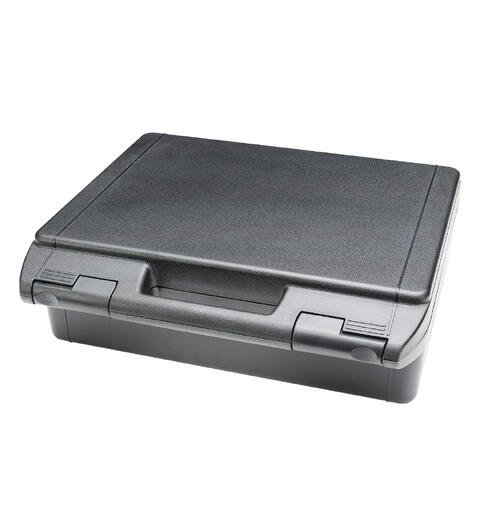

• DESK version with foam inlay for toolcase
• incl. 2 x HDMI ® cables HIMM of 1.5 m (4.921 ft. length)
• incl. 2 x 24V chargers (4-pole XLR)

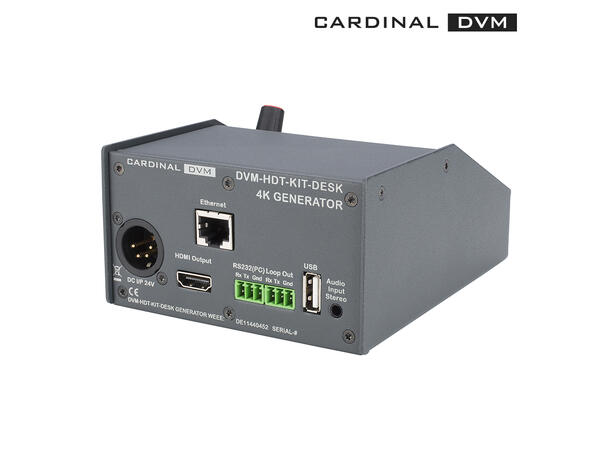

Generator Features:
• 34 different test patterns (33 x 2D, 1 x 3D)
• 43 different generator resolutions (including ten userdefinable and one automatic resolution)
• Integrated EDID memory for up to 10 EDID sets
• EDID information can be read, modified, and written back
• Audio tests through integrated clock generator (8 different sample rates 32K, 44K, 48K, 88K, 96K, 176K, 192K, and auto) or through external 2.0 mini jack input
Analyzer Features:
• Extensive signal analysis capabilities
• Audio metering display for 8 channels in real-time
• Real-time signal monitoring with error counters
• Integrated EDID memory for up to 14 EDID sets (including 10 user-definable)
• HDMI ® input can be activated or deactivated via software for on/off switching simulations
