HDMI® under control
Whether in the installation or rental business - thepractical HD tools of the CARDINAL DVM series offer a convincing quality and a unique value-for-money ratio.

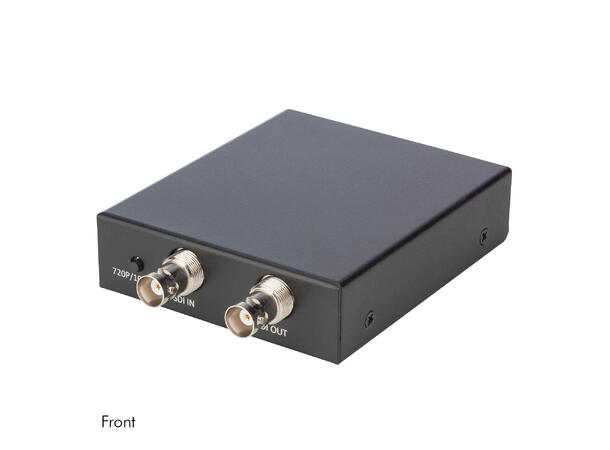

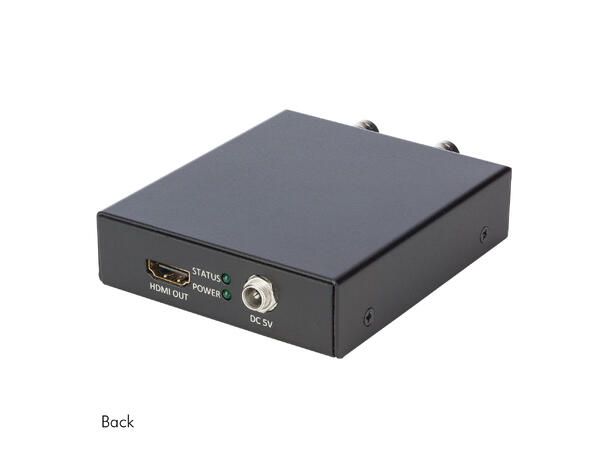

DVM-HDT-SDI-HDMI – HD-SDI HDMI® converter
This converter links devices with an HDMI® interface to professional SDI equipment, thereby supporting all SDI formats up to 3G-SDI.
Accepted input signals:
• SD: 480i at 60 fps / 576i at 50 fps
• HD 720p at 50 and 60 fps
• HD 1080i at 50 and 60 fps
• FULL-HD 1080p at 24, 25, 30, 50 and 60 fps
The fed-in SDI signal is available at a link output for further distribution within the SDI signal chain.
Advantages:
- Power supply DC connectors with screw
- uniform power unit with all HD Tools
- Rugged housing in timeless design
- additional SDI-Link output with integrated re-clocking
- Video bandwidth 270 M ... 2.97 Gbps
- Plug & Play
Application:
- Connecting SDI to 3G-SDI equipment to
HDMI® devices
Specifications:
| Article number | DVM-HDT-SDI-HDMI |
|---|
| Name | DVM-HDT-SDHD |
|---|
| EAN | 4049371369930 |
|---|
| Brand | CARDINAL DVM |
|---|
| Application | SDI- / HD-SDI- / 3G-SDI -> HDMI® Converter |
|---|
| Type | HDMI Converter (SDI- / HD-SDI- / 3G-SDI) |
|---|
| Colour | black |
|---|
| Input | VGA |
|---|
| Input | SDI LINK OUT |
|---|
| Output | HDMI |
|---|
