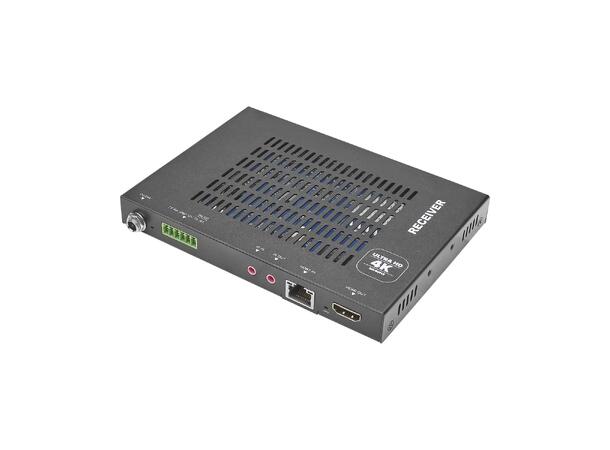

CARDINAL DVM-HDBT-EX07-R3 Receiver

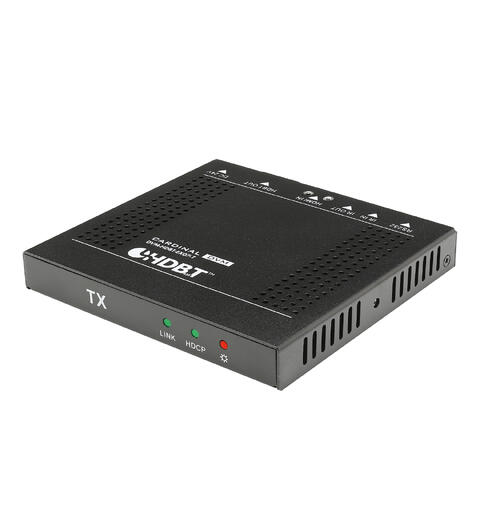

The 3rd generation CARDINAL DVM HDBT extender system DVM-HDBT-EX07 ensures a stable transmission of 4K60 HDMI® signals over long distances of up to 70 meters via only a single CAT line. All common standards like HDR, HDCP (up to V2.2), 4K 60fps 4:4:4, 3D, CEC as well as PCM and bitstream audio can be processed. In addition, a bi-directional RS232 and infrared communication enables display and projector control. The devices are built into an ultra-flat housing. Transmitter and receiver are available individually or as a set including mounting accessories, R232 adapter cable and IR diode/receiver.

The 3rd generation is equipped with new, practical features:

• Down-scaler
• EDID & HDCP management
• Video keep-alive function
• Test pattern generator
• CEC control
• Audio de-embedding analog & optical
• Extensive diagnostic functions

HD-BaseT receiver HDMI + IR + RS232 up to 70m

• HDBaseT receiver
• IR transmitter
• RS232 adapter cable set
•  supports HDMI 2.0b, 18G
•  transmits FullHD signals up to 70m
•  transmits UHD signals up to 40m
•  transmits RS232 & IR bidirectionally
•  supports HDCP (up to V2.2)
•  supports official PoH standard
•  supports 3D, 4K@60fps (4:4:4)
•  recommended cable CAT.7 AWG23
•  ultra compact design
