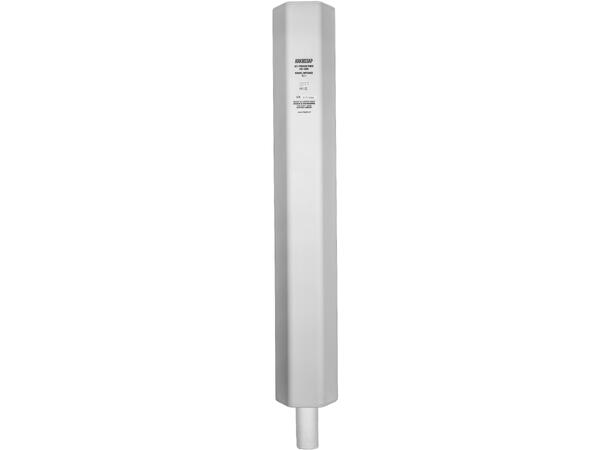

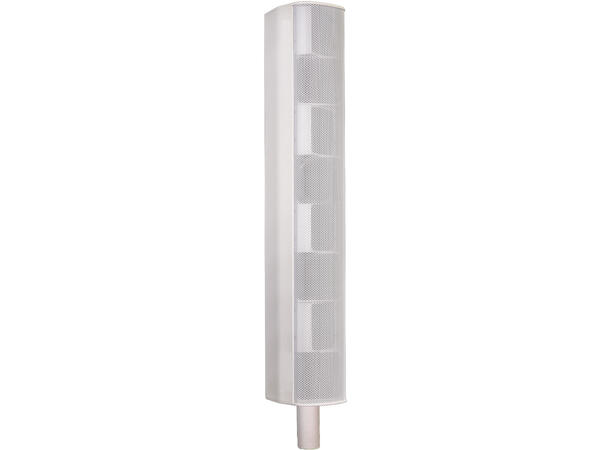

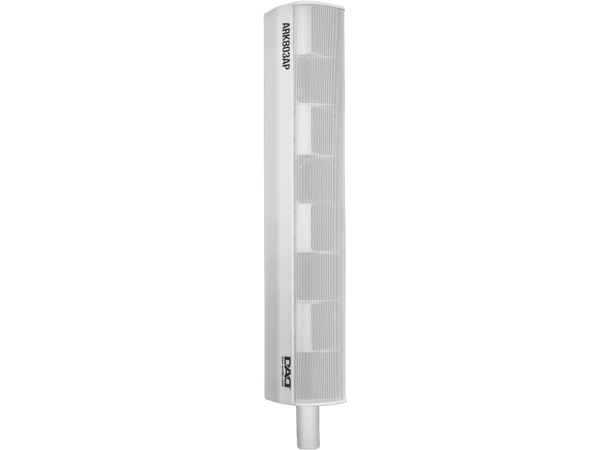

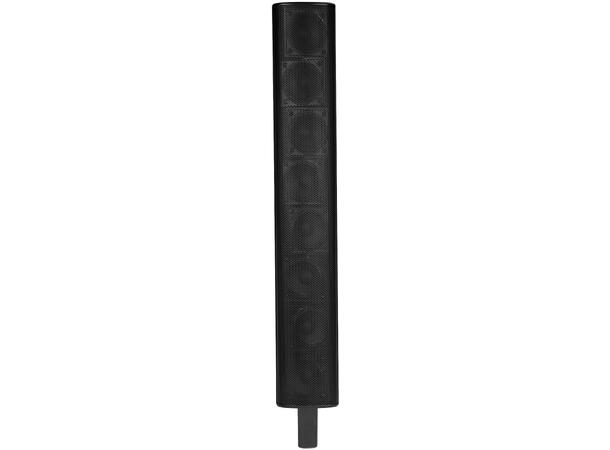

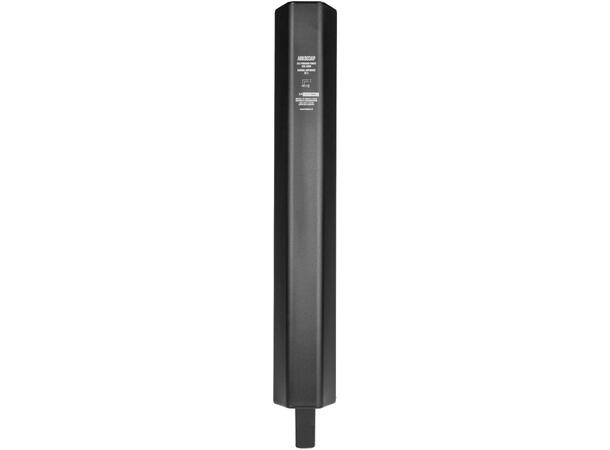

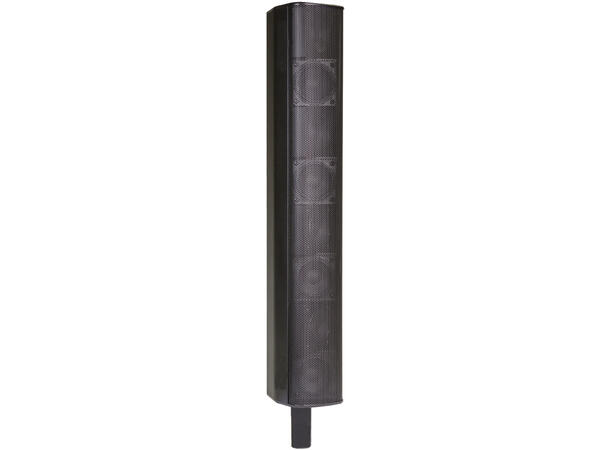

Column line array loudspeaker module, 200 W AES, 120dB SPL.
Features:
Mid frequency: 8x3'' midrange / 0.75'' v.c.
Frequency response: 135-17000 Hz (±3dB)
Coverage angle HxV:115x20°
The modules with 8 transducers of 3” can be configured in vertical array too and represent the solution to sound in deep environments particularly difficult, where quality and intelligibility are required. Column modules with an off-axis transducer for wide horizontal dispersion.
Aluminium frame for a very robust yet lightweight design that fits in with any environment
LOUDSPEAKER
System type: column loudspeaker
COMPONENTS
Mid frequency: 8x3'' midrange / 0.75'' v.c.
FEATURES
AES/program power: 200/400W
SPL max: 120dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
Sensitivity: 95dB @1W/1m (free field)
Impedance: 16 Ohm
SPL cont/peak: 114/120dB @1m (free field)
Frequency response: 135-17000Hz (±3dB)
Coverage angle HxV: 115x20°
Suggest LPF range: 140/180Hz
Recommended amplifier up to: 400W /16Ohm
INPUT/OUTPUT CONNECTORS
Input signal: Jack 6.35 mm IN/OUT
CABINET CONSTRUCTION
Cabinet material: 3mm aluminum die cast
Sospension system: support with signal connection
PHYSICAL
Dimensions (WxHxD): 110x770x148mm
Weight: 7.6kg
