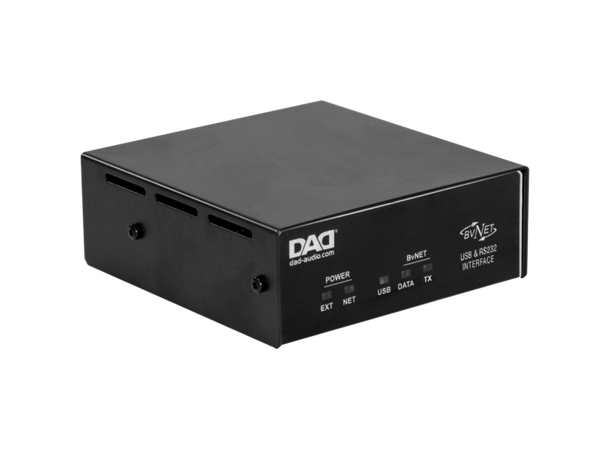

DPX2060NB interface enables access via a PC for remote control and monitoring of the DPX2060 devices on the BvNet protocol network. It provides two connectivity options – RS232 serial port or USB.
- Self-powered via the USB port.
- Can drive up to 1km of network cable.

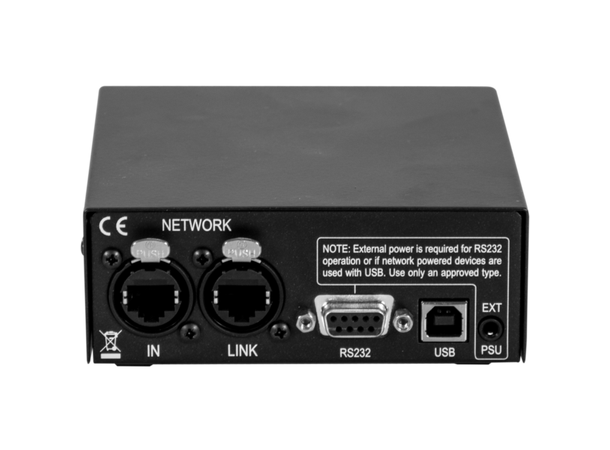

- High quality Neutrik Ethercon connectors, also compatible with standard RJ45 cables.
- USB 1.1 compatible or 2.0 on a type B connector.
Electric consumption 150mA. - RS232C serial communication on a female D-pin connector.
- Power consumption: 750mW/USB, 3W/external power supply.
