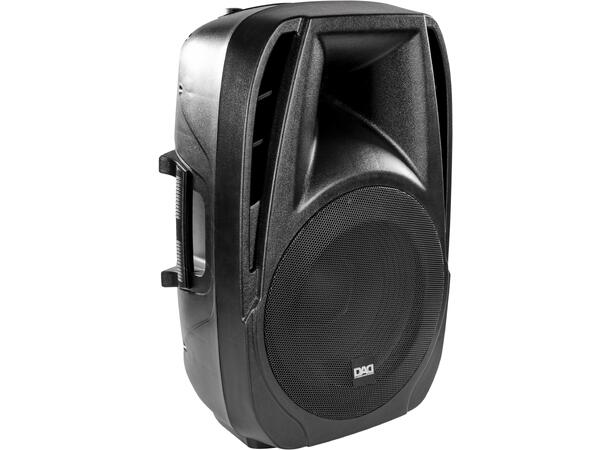

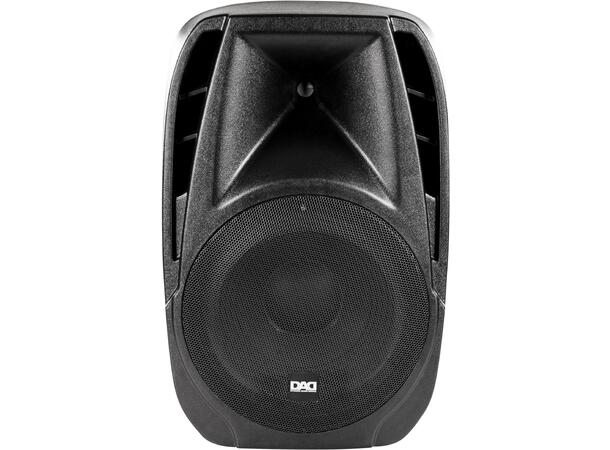

2-way passive loudspeakers, 300 W AES,127dB SPL

Features:
Low frequency: 15'' woofer/2.5''v.c.
High frequency: 1'' driver/1.7''v.c.
Frequency response: 50-20000 Hz (±3dB)
Reproduction of voice and music for live and recorded performances
Cabinet designed for stage-monitor applications
Polypropylene box equipped with two side handles, one in the upper side
For portable PA systems, mobile DJ sets and voice/multimedia applications

LOUDSPEAKER
System type: passive 2 way

COMPONENTS
Low frequency: 15'' woofer/2.5''v.c.
High frequency: 1'' driver/1.7''v.c.

FEATURES
AES/program power: 300/600W
SPL max: 127dB @1m (free field)

ACOUSTICAL SPECIFICATIONS
Sensitivity: 99dB @1W/1m (free field)
Impedance: 8 Ohm
SPL cont/peak: 121/127dB @1m (free field)
Frequency response: 50-20000Hz (±3dB)
Coverage angle HxV: 90x45°
Cross over frequency: 2500Hz
Protection: H.F. signal compression
Recommended amplifier up to: 600W

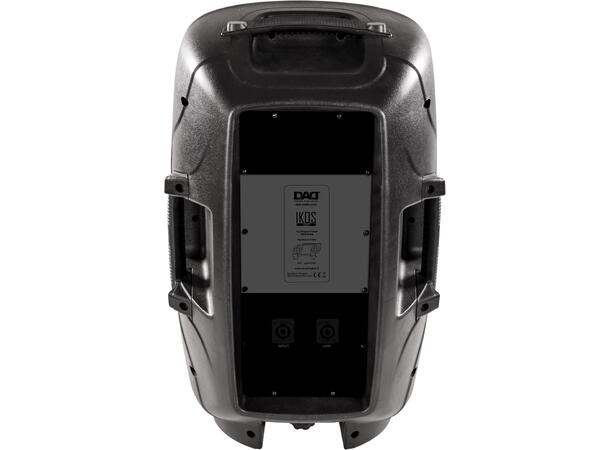

INPUT/OUTPUT CONNECTORS
Input signal: 4pole IN/OUT

CABINET CONSTRUCTION
Cabinet material: 4mm polypropilene
Sospension system: 35 mm mounting pole
Angle: 45° monitor applications
Handles: 2 on side

PHYSICAL
Dimensions (WxHxD): 445x690x380mm
Weight: 13.2kg
