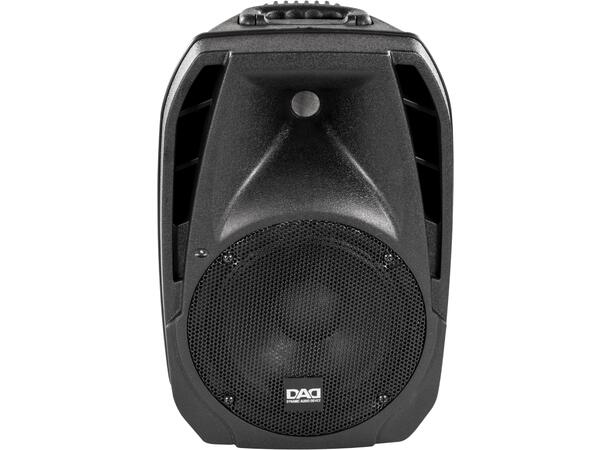

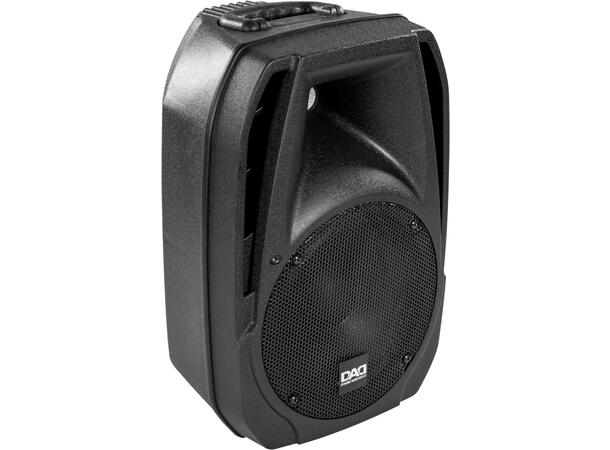

Active loudspeaker, 2-way 120 W, 120dB SPL
Features:
Low frequency: 8'' woofer/1.5''v.c.
High frequency: 1'' driver/1.4''v.c.
Frequency response: 80-20000 Hz (±3dB)
Cabinet designed for stage-monitor applications
Polypropylene box equipped with a handle in the upper side
Reproduction of voice and music for live and recorded performances
For portable PA systems, mobile DJ sets and voice/multimedia applications
LOUDSPEAKER
System type: active
COMPONENTS
Low frequency: 8'' woofer/1.5''v.c.
High frequency: 1'' driver/1.4''v.c.
FEATURES
Built-in amp: 120W /4Ohm
ACOUSTICAL SPECIFICATIONS
SPL cont/peak: 114/120dB @1m (free field)
Frequency response: 80-20000Hz (±3dB)
Coverage angle HxV: 90x45°
Cross over frequency: 3300Hz
ELECTRONICS
Amplifier: AB class
Power: 120W /4Ohm
Input sensitivity: 4 dBu (1,228Vrms) adjustable
Protection: limiter temp.

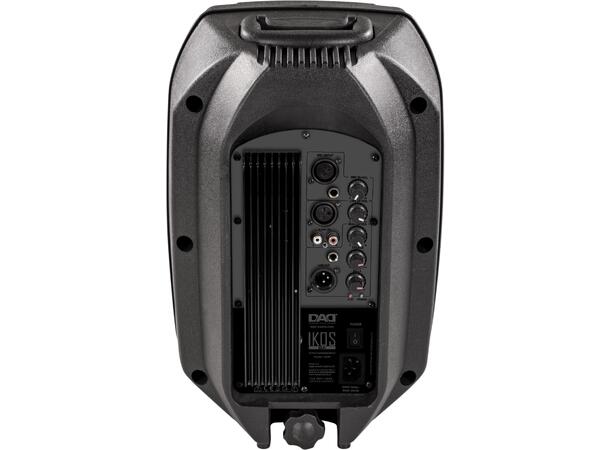

User controls: mic, line, master, eq LF-HF
Operating voltage/frequency: 230 V - 50 Hz
INPUT/OUTPUT CONNECTORS
Input signal: XLR/jack bal. pin RCA unbal
Power connection: VDE
CABINET CONSTRUCTION
Cabinet material: 4mm polypropilene
Sospension system: 35 mm mounting pole
Angle: 45° monitor applications
Handles: 1 top
PHYSICAL
Dimensions (WxHxD): 260x395x210mm
Weight: 7.1kg
