Active loudspeakers, AB class bi-amp, 2-way 100 W+50 W, 117db SPL
Features:
Low frequency: 8'' woofer/2''v.c.
High frequency: 1'' driver/1.3''v.c.
Frequency response: 70-18000 Hz (±3dB)
User controls: mic, line, master.
Reproduction of voice and music for live and recorded performances
Cabinet material: polypropilene, can also be used as a stage monitor
For sound installations in environments requiring dynamics and sound pressure
LOUDSPEAKER
System type: active 2 way
COMPONENTS
Low frequency: 8'' woofer/2''v.c.
High frequency: 1'' driver/1.3''v.c.
FEATURES
Built-in amp LF/HF: 100+50W /4/8Ohm
SPL max: 117dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
SPL cont/peak: 111/117dB @1m (free field)
Frequency response: 70-18000Hz (±3dB)
Coverage angle HxV: 80x60°
Cross over frequency: 3500Hz
ELECTRONICS
Amplifier: AB class
Power: 100+50W /4/8Ohm
Input sensitivity: 4 dBu (1,228Vrms) adjustable
Protection: limiter temp.
User controls: mic, line
Processor: analog
Operating voltage/frequency: 100~120V/220~240V 60Hz/50Hz

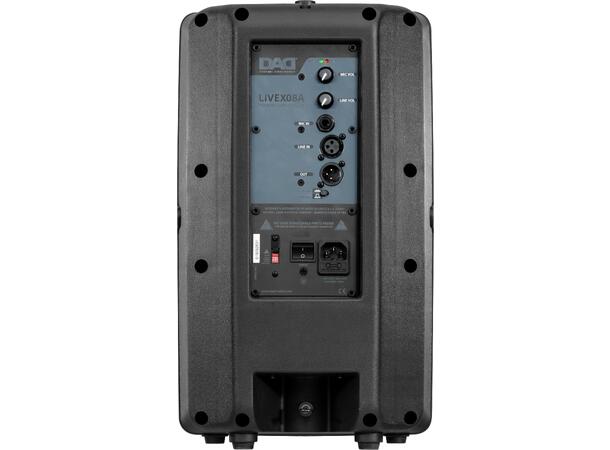

INPUT/OUTPUT CONNECTORS
Input signal: XLR IN/OUT, jack 6.35 mm
Power connection: VDE

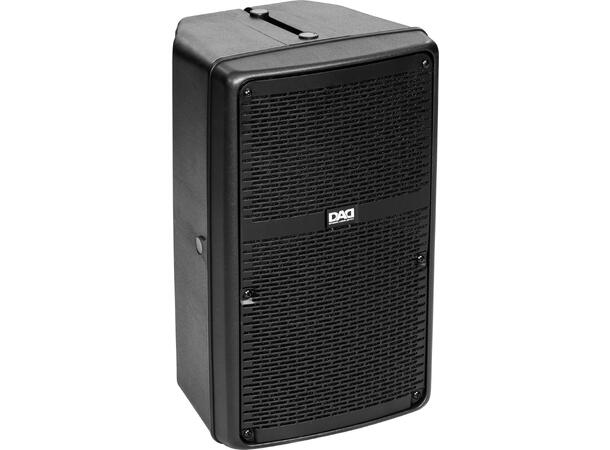

CABINET CONSTRUCTION
Cabinet material: 4mm polypropilene
Sospension system: eyebolt, 35 mm pole mount
Angle: 60° monitor applications
PHYSICAL
Dimensions (WxHxD): 255x435x245mm
Weight: 9.5kg
