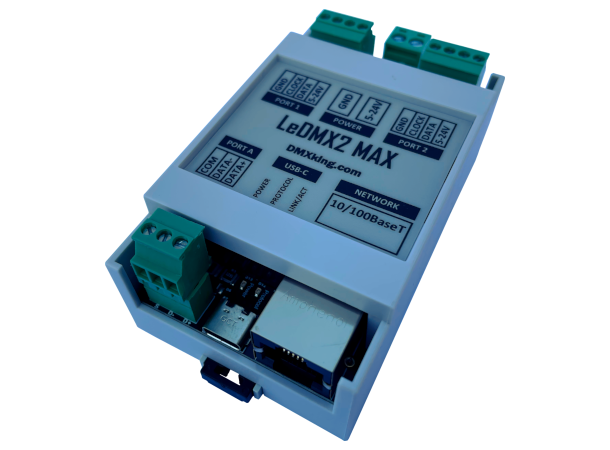

DMX KING LeDMX2 MAX Pixel control

Direct sACN/E1.31 and Art-Net to RGB/RGBW pixel strip/array control with built in show recording for standalone operation. The most sophisticated feature packed pixel controller on the market.

• Main Features
• Directly drives WS2805, WS2811, WS2812, WS2812B, WS2813, WS2814, WS2815, WS2822S UCS1903, UCS2903, UCS2912, UCS5603, UCS8903, UCS8904, PL9823, TM1934, APA101, SK9822, APA102, APA104, APA106, APA107, NS107, INK1002, INK1003, SM16703, SM16714, SK6812, SKC6812, WS2801, LPD6803, LPD8806, TM1824, DMX512-P, HD108, P9813, GS8208, TM1814, TM1914A, TLS3001, SK9822, WS2821A and many more compatible LED strips
• Up to 1020 RGB pixels or 768 RGBW pixels per output spanning 6 DMX universes (2040 RGB pixels / 12 universes per LeDMX2 MAX)
• Up to 510 16bit RGB pixels or 384 16bit RGBW pixels per output
• Automatic WC, RGB, RGBW, RGBWC order correction and additional pixel re-mapping features
• Per pixel intensity control for APA102/SK9822 utilizing the 5bit current pre-regulator
• Master Level control independent of incoming universe streams
• Flexible Full Mapping option for outputs permitting any start address and zig-zag corrections for WC, RGB, RGB16, RGBW, RGBWC and RGBW16 pixel types
• Automatic changeover to alternate mapping parameters for simple low channel count control when primary control source not present
• Null pixel support for longer runs to first active pixel
• HTP merge of 2 sources alongside sACN Priority per assigned pixel universe for a highly flexible multi-source pixel mapping solution
• Independent outputs each with 8A supply capability
• DMX512 IN/OUT port can be used as pixel universe source, show control input or DMX lighting fixture control output
• Recording and playback of shows to microSD card (not supplied) - See eDMX MAX Record / Playback manual
• Static scene recording and playback without requiring SD card. See eDMX MAX Record / Playback manual
• Real time clock with battery (not supplied) backup for intermittent power standalone playback
• Art-Net I, II, 3 & 4 + sACN/E1.31 protocol support including universe synchronization
• Static or DHCP IPv4 networking
• Integrated DIN rail and wall mount with OEM board also available for integration into your designs
