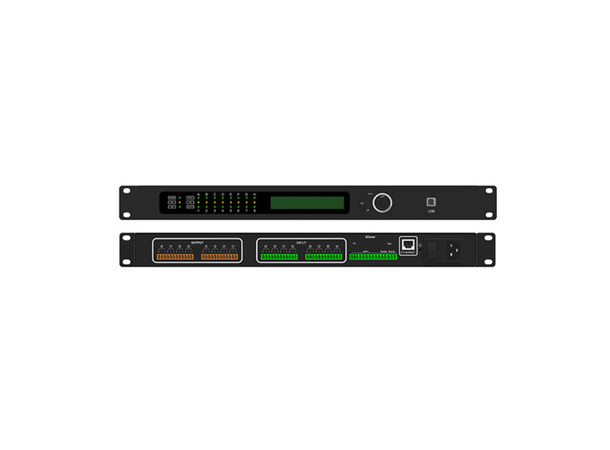

DSPPA DP8004 Prossessor

- 8 channels analog audio input & 8 channels analog audio output
- With 4x4 dante input and output
- With AEC echo cancellation and ANC noise cancellation function
- With USB,RS232, RS485,RJ-45 port for computer control and centrel control
- Each input with 48V phantom power
- Each input with feedback suppressor,
- With 8 channels GPIO interface
- With DSP function: AFC, AEC, ANC, AGC,AUTO MIX, MATRIX MIX, Noise gate, PEQ, delay Device, FIR filter, high and low frequency division, compressor, limiter
- Stereo USB sound card function, support playback and recording
- With 15 bands PEQ adjustment for input and 10 bands PEQ adjustment for output
- With video tracking function, support PELCO-D?PELCO-P?VISCA protocols
- USB drive automatic connect with software, and support RS232 control
- Support remote control of mobile APP software
- Power supply:AC100V---240V 50/60 Hz
- Dimension: 483mmx265mmx44.5mmm
- Net weight:3.3kg
